Christie Access Series LCD panels
Overview Specs Accessories Downloads Images

Perfect for meeting rooms and ​retail applications, the Christie® UHD861-LT is a budget-friendly, interactive, 86" LCD panel offering professional features such as an OPS slot, 4K UHD resolution and USB playback.

Christie UHD861-LT - Bring your content to life

Christie UHD861-LT - Bring your content to life

Designed for 16/7 operation and featuring 10-point, multi-touch capability, the UHD861-LT provides an interactive solution for dynamic presentations, educational collaboration or engaging retail applications. As with all Christie products, the UHD861-LT is backed by our industry-leading service and support for the ultimate peace of mind.

​Crestron Connected

As a Creston Connected device, the Christie UHD861-LT has built-in capability to ensure a seamless connection to a Crestron network. This allows the UHD861-LT to be monitored, managed and controlled from any web interface including desktops, tablets and mobile devices.

Interactive presentations and collaboration

Interactivity software provides an intuitive UX that makes it easy to present, collaborate and share. The Christie UHD861-LT ships with one seat of OKTOPUS interactive presentation and collaboration software. Designed to work with interactive LCD panels, OKTOPUS gives users the ability to annotate over many running applications or web browsers.

Get information on Quizdom OKTOPUS

Purchase additional user licenses



Specifications

Native resolution

4K UHD 3840 x 2160 (16:9)

Backlight

Direct-lit LED

LED lifespan

50,000 hours to 50% brightness

Display orientation

Landscape

Pixel pitch (WxH)

0.4935 x 0.4935mm

Bezel size (bottom/side/top)

38mm/38mm/38mm

*Avoid static images for extended periods. Refer to the product documentation for additional guidelines.

**For UHD861-LT: WiFi capability is provided via USB dongle; Kensington lock, Miracast connectivity and Bluetooth are not applicable.

***Single touch for Mac OS.

Content and operating conditions can affect the useful life of the product. Please refer to the product user manual and Christie Operating Guidelines for Flat Panels, under the downloads tab.

Due to constant research, specifications are subject to change without notice.

Downloads

Images

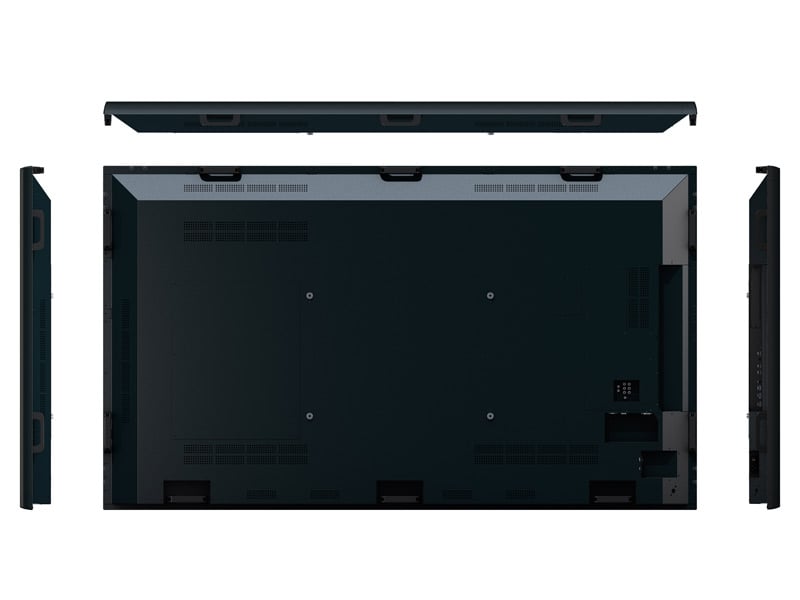

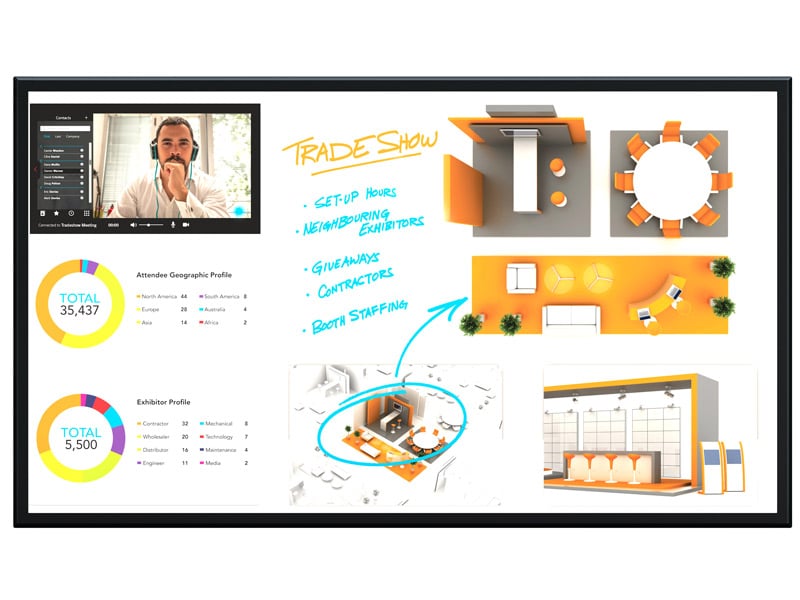

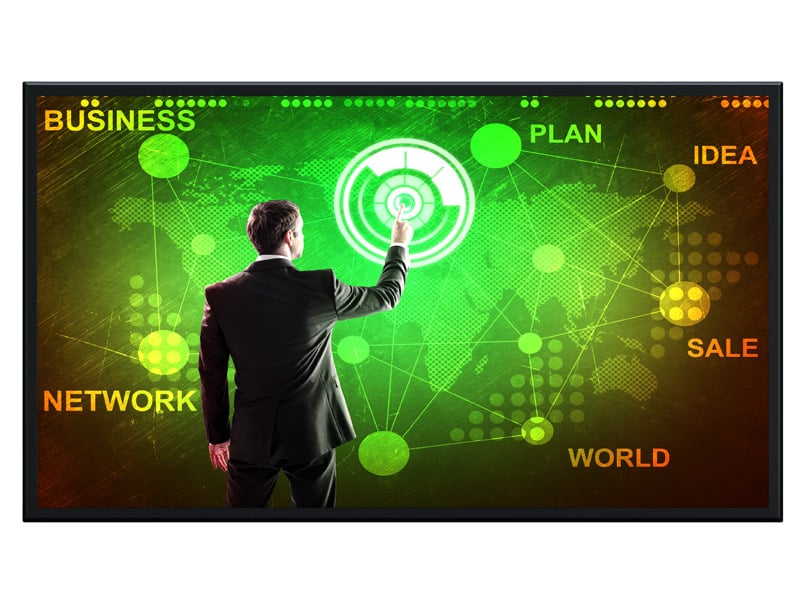

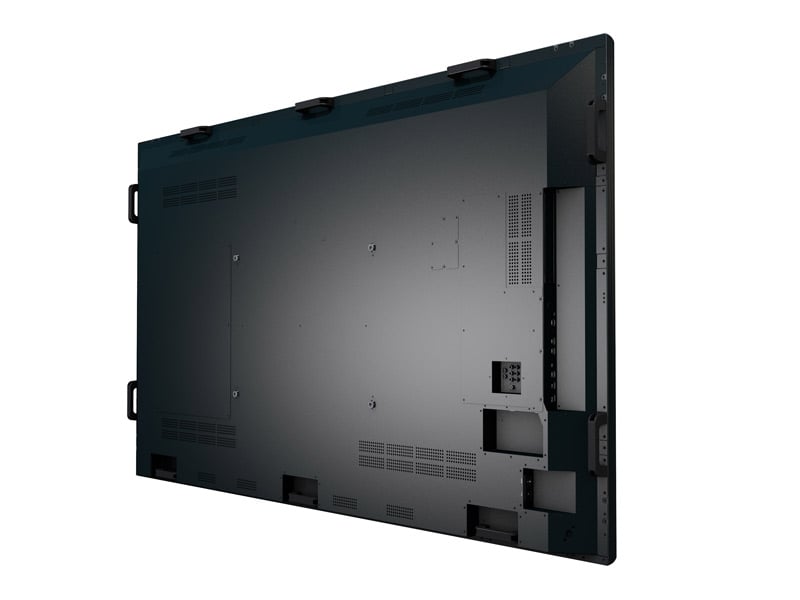

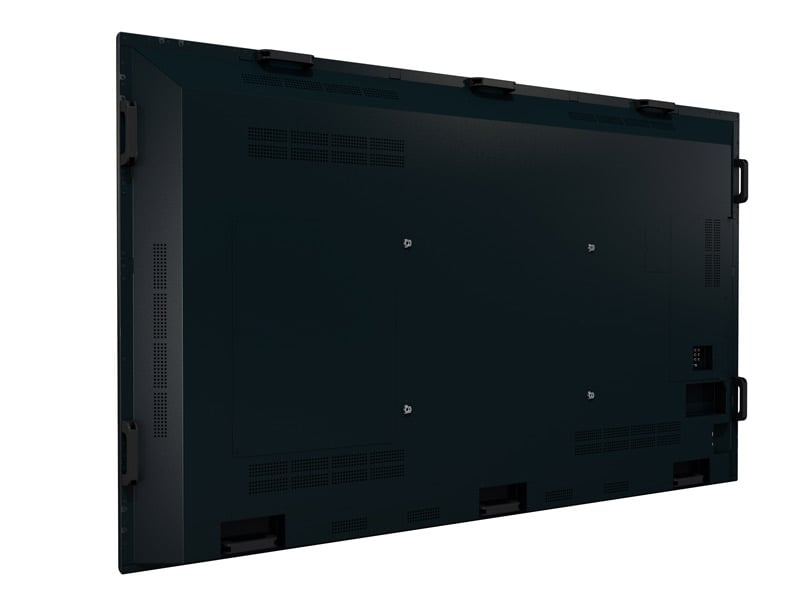

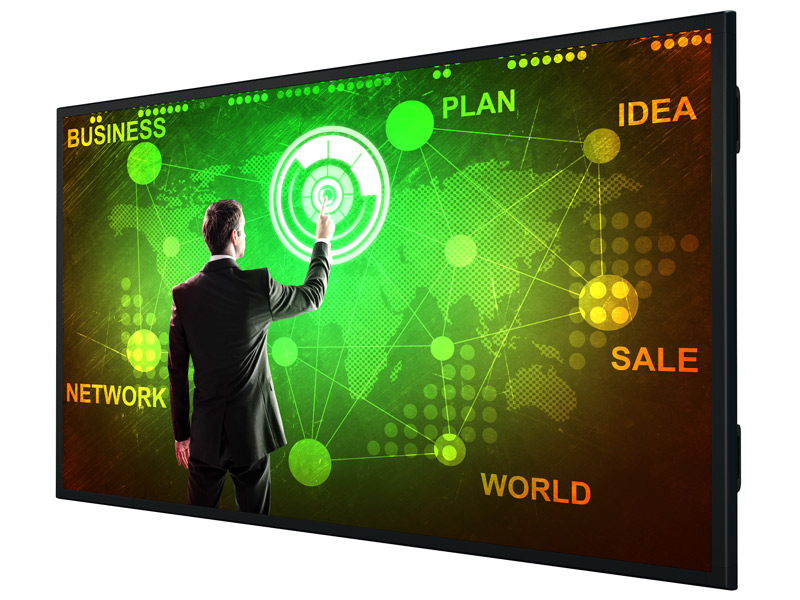

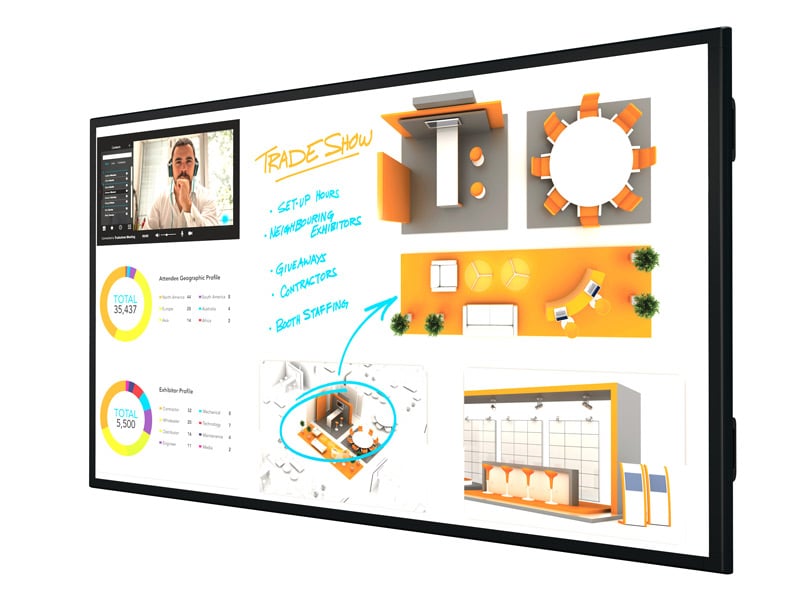

Christie UHD861-LT 4K UHD LCD panel | 135-021104-XX
