Anamorphic Conversion Lens | Christie - Audio Visual Solutions

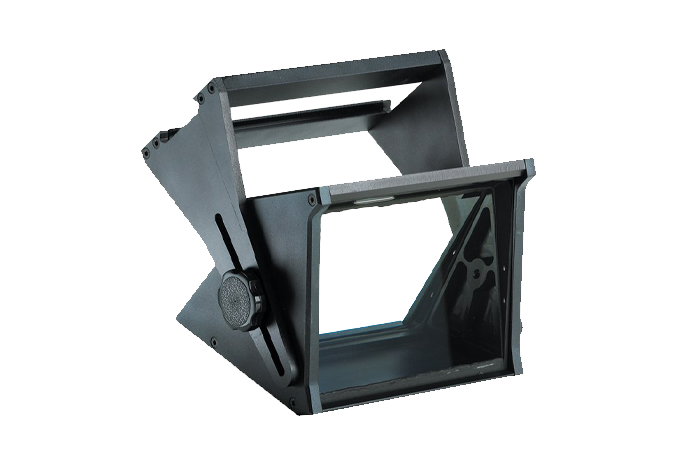

This Anamorphic Conversion Lens converts native XGA, SXGA+ and UXGA projection (4:3 aspect ratio) to 1.65:1 to 1.85:1 aspect ratio (primary lens and projector tilt dependant). This anamorphic lens allows the user to maximize the screen width when viewing native HD or Cinema (Flat) format when using one of the Christie LCD digital projectors listed below.

For more information regarding the installation requirements and the use of this anamorphic lens, please contact your Christie Sales Manager.

Specifications


Weight	5.7 lbs (2.6kg) lens, bracket, rails
Technology	Liquid, corrected, pressure-compensated, optically-coated prisms
Transmission	Approximately 15% net brightness increase with anamorphic sources
Conversion	1.65:1 to 1.85:1 format (from 4:3), depending on lens and projector tilts
Throw length	Appriximately 12-25 feet (3.6-7.6 meters) compatibility
Throw ratio	Approximately 1.65 times image width (minimum compatibility)
Height	Bracket: 7.13" (184mm)
	Lens: 5.13" (130mm)
	Maximum assembly: 9.69" (246mm)
	Vertical adjustment: 4" (102mm)

Due to constant research, specifications and features are subject to change without notice.
