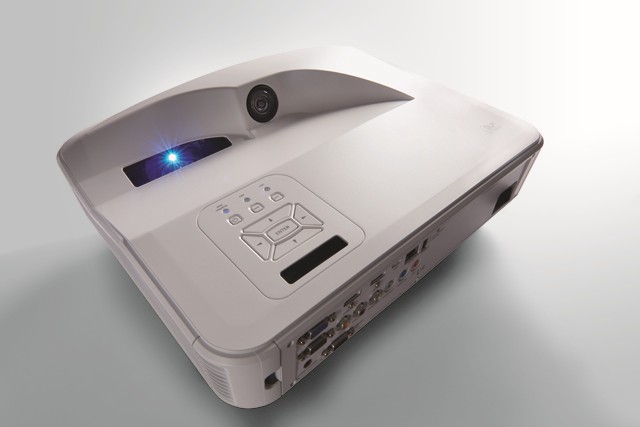

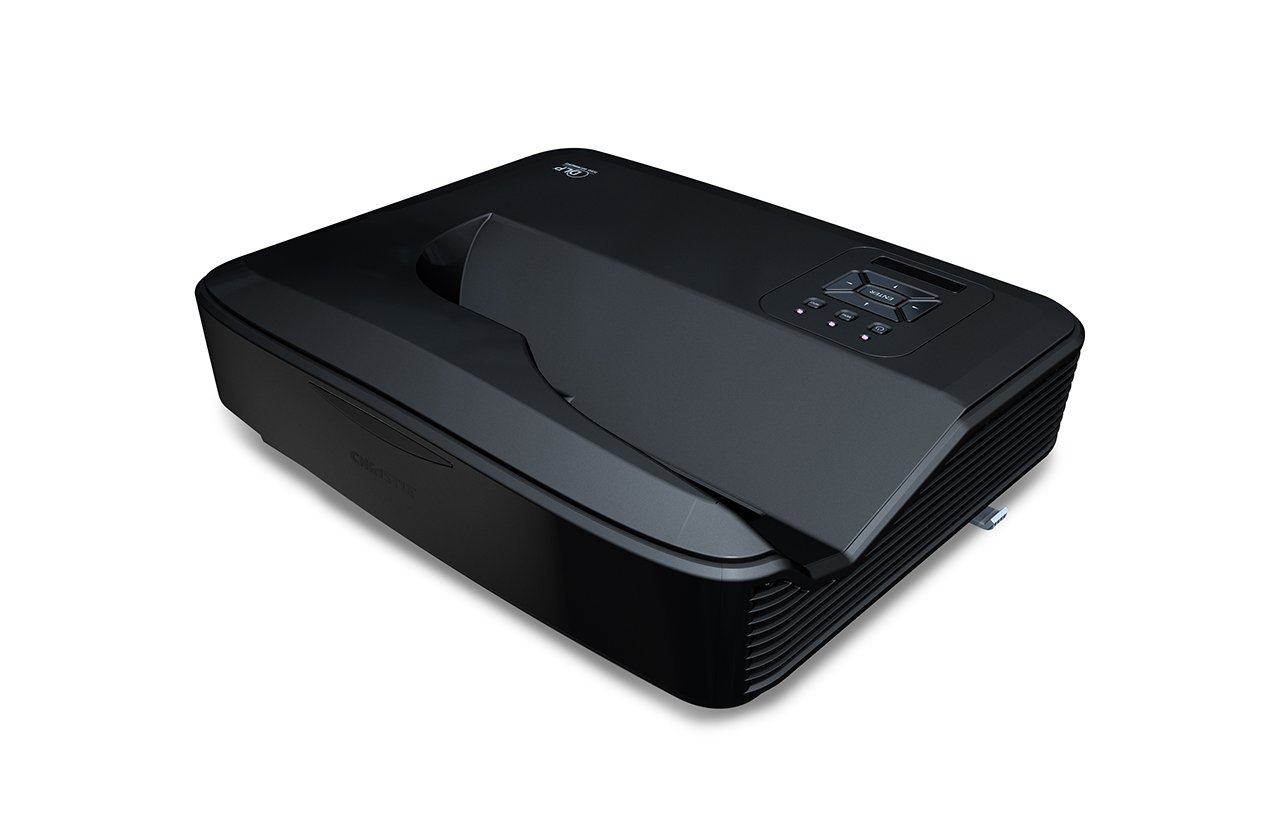

Make the most out of your space with the Christie® Captiva DHD400S 1DLP® ultra short throw projector. With one of the shortest throw distances available, this compact, quiet and powerful 3,500 lumen projector allows you to maximize your space without sacrificing visual impact. Easily add interactivity capabilities and create and share unique user experiences whether it’s in the classroom, conference room or retail environment.
Featuring laser illumination, the Christie Captiva DHD400S provides 20,000 hours of low cost and low maintenance operation. With a suite of easy-to-use features, multiple mounting options, instant on/off and a very attractive price point, the Christie Captiva DHD400S lets you focus on what’s important – the content.
Features
- Compact, quiet, powerful and bright
- Standard HD aspect ratio
- 20,000 hours of low cost operation
- Reliable, easy to use and economical
- Multiple orientation options and 3D formats
- Easily add interactivity
Christie support and service
All Christie products are backed by industry-leading warranties, renowned service and support. We ensure our customers are well supported with training, service and technical support through our extensive distribution and support network.
Specifications
- - 3500 center lumens
- - 3100 ANSI lumens
- - 3500 ISO lumens
- - 1800:1 contrast ratio (Full on/off)
Display
- - 0.65” 1DLP chip
- - 1920 x 1080 (16:9)
- - 80-100" diagonal image size
Illumination
- Solid state (Laser phosphor)
- 20,000 hrs
Signals
- Standard
- - HDMI x 2
- - VGA x 1 + monitor out or VGA x 2
- - VGA audio in (3.5mm phone jack)
- - Composite video x 1 (RCA) + audio (RCA x 2)
- - Microphone input
- - USB A (for use with optional Wireless Dongle)
- Max input pixel rate
- - 1600 x 1200 @ 60Hz (162MHz)
- - 1920 x 1200 @ 60Hz reduced blanking (154 MHz)
- 3D
- - Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a)
- - Frame sequential DLP link 3D (VGA/HDMI)
- - Frame sequential/field sequential HQFS 3D (Composite/S-Video)
- Pixel clock
- - 162 MHz

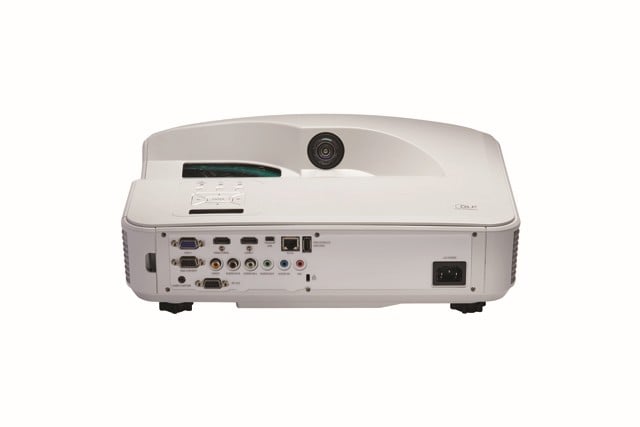

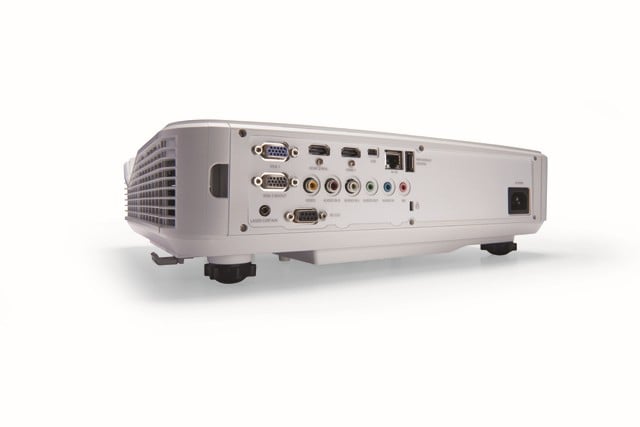

Inputs, control and networking
- - VGA monitor out (or second VGA in)
- - 10W speaker
- - Audio output (3.5mm phone jack)
- - RS-232 in
- - Ethernet (100BaseT) RJ45

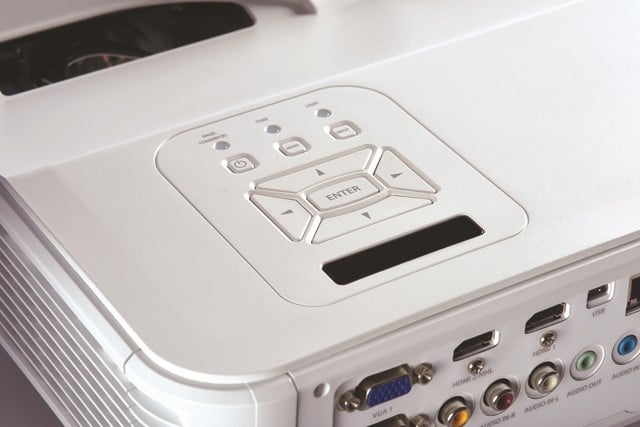

- - Built-in keypad
- - Compatible with Crestron RoomView, AMX, PJ Link
Accessories
- Standard

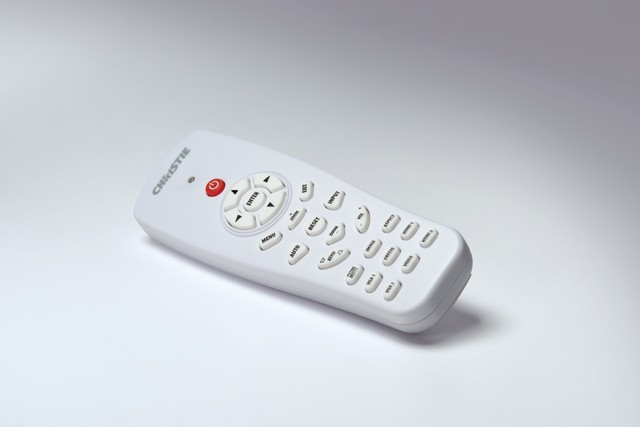

- - IR remote
- - AC Line cord for projector Head
- - VGA cable
- - Camera for interactivity accessories
- - User manual
- Optional

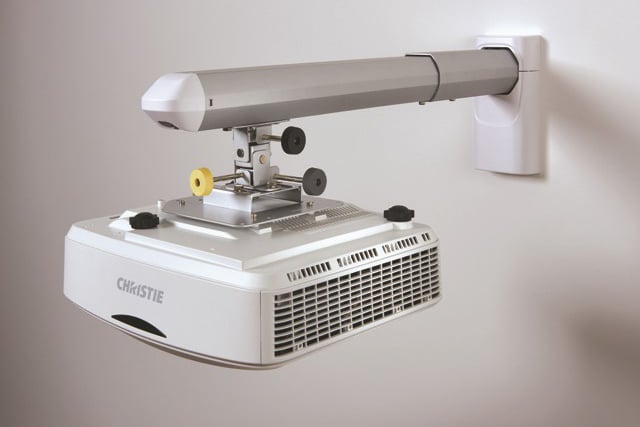

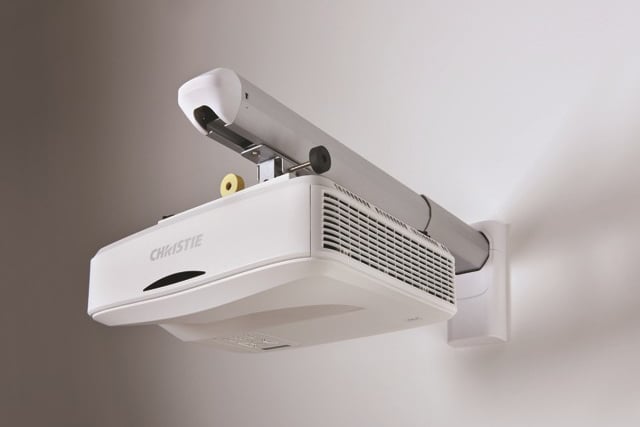

- - Wall mount
- - IR pens
- - Captiva Touch (laser IR curtain)
Due to constant research, specifications and features are subject to change without notice.
1Please reference the Christie Standard Limited Warranty document for details
Downloads
Christie Captiva Series datasheet - English
Mar 10, 2016 | PDF: 543 KB
Captivate audiences, inspire creativity and nurture collaboration with the Christie® Captiva Series of 1DLP® lampless ultra short throw projectors.
Christie Captiva Series datasheet
Aug 12, 2015 | PDF: 178 KB
This document describes the key features and specifications for the Christie Captiva Series of lampless 1DLP projectors.
