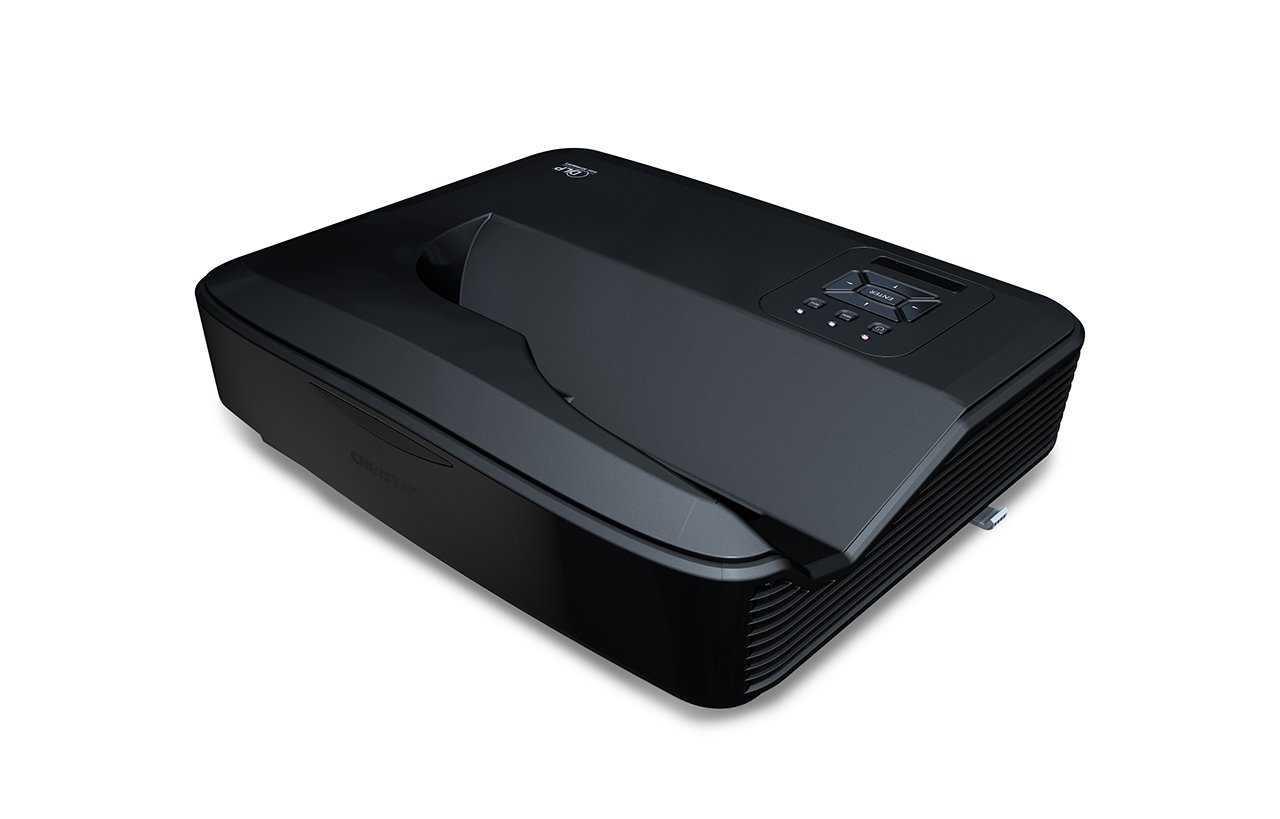

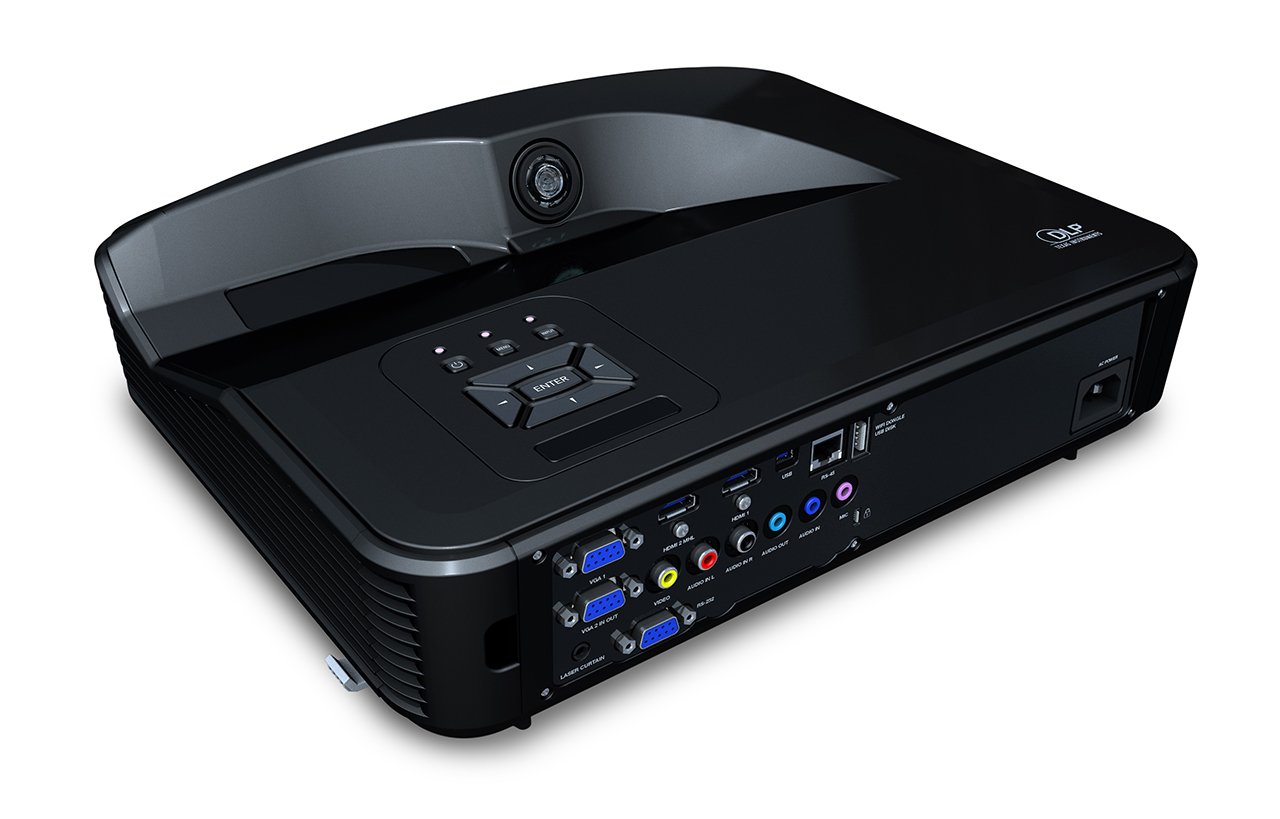

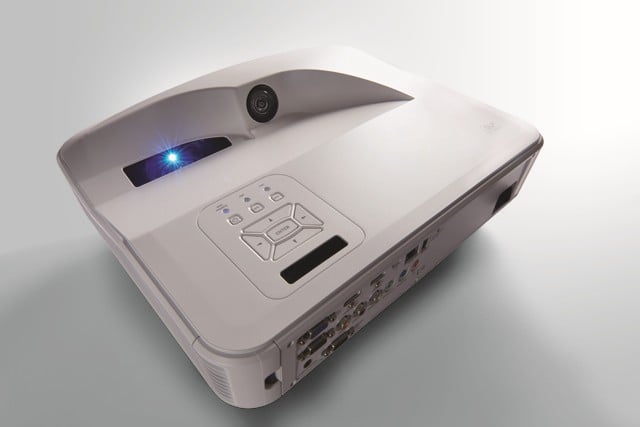

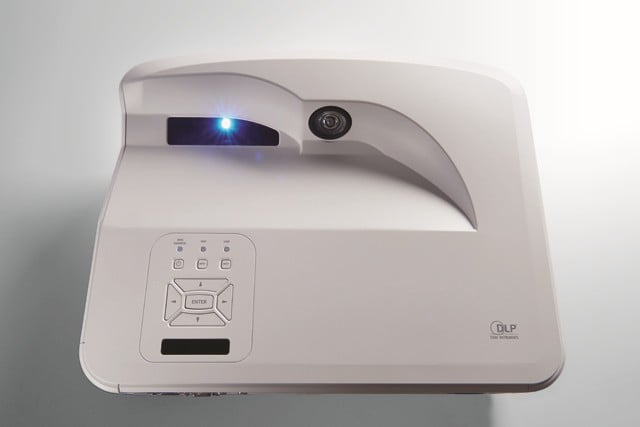

Captivate audiences or inspire collaboration with striking, ultra wide visuals with the Christie® Captiva DUW350S ultra short throw projector. Create high definition canvases up to 140” diagonal in size with this 3,000 lumen, 1DLP® lampless projector. With an impressive 16:6 aspect ratio, you’re able to run multiple applications side-by-side for presentation and collaboration ease. Or use the entire space to showcase your content in unique ways that attract and engage audiences. Easily add interactivity capabilities for an enhanced user experience.
Featuring laser illumination, the Christie Captiva DUW350S provides 20,000 hours of low cost and low maintenance operation. With a suite of easy-to-use features, multiple mounting options, 3D, instant on/off and a very attractive price point, the Christie Captiva DUW350S lets you focus on what’s important – the content.
Features
- Compact, quiet, powerful and bright
- Unique ultra wide aspect ratio
- 20,000 hours of low cost operation
- Reliable, easy to use and economical
- Multiple orientation options
- Easily add interactivity
Christie support and service
All Christie products are backed by industry-leading warranties, renowned service and support. We ensure our customers are well supported with training, service and technical support through our extensive distribution and support network.
Specifications
- - 3000 center lumens
- - 2700 ANSI lumens
- - 3000 ISO lumens
- - 1800:1 contrast ratio (Full on/off)
Display
- - 0.65” 1DLP chip
- - 1920 x 720 (16:6)
- - 100-140" diagonal image size
Illumination

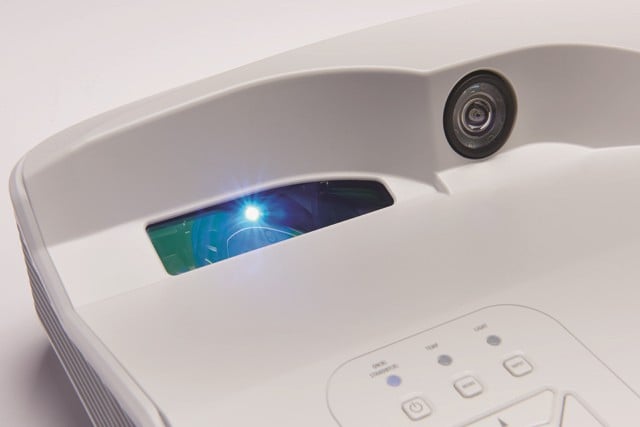

- Solid state (Laser phosphor)
- 20,000 hrs
Signals
- Standard
- - HDMI x 2
- - VGA x 1 + monitor out or VGA x 2
- - VGA audio in (3.5mm phone jack)
- - Composite video x 1 (RCA) + audio (RCA x 2)
- - Microphone input
- - USB A (for use with optional Wireless Dongle)
- Max input pixel rate
- - 1600 x 1200 @ 60Hz (162MHz)
- - 1920 x 1200 @ 60Hz reduced blanking (154 MHz)
- 3D
- - Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a)
- - Frame sequential DLP link 3D (VGA/HDMI)
- - Frame sequential/field sequential HQFS 3D (Composite/S-Video)
- Pixel clock
- - 162 MHz

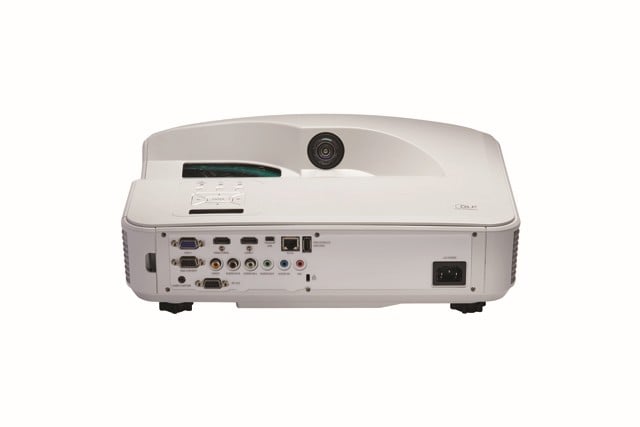

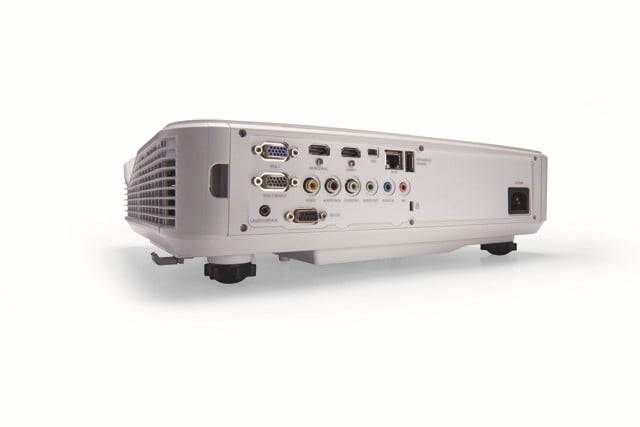

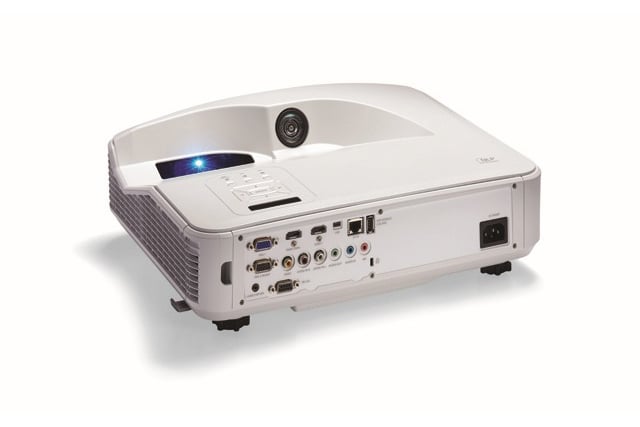

Inputs, control and networking
- - VGA monitor out (or second VGA in)
- - 10W speaker
- - Audio output (3.5mm phone jack)
- - RS-232 in
- - Ethernet (100BaseT) RJ45

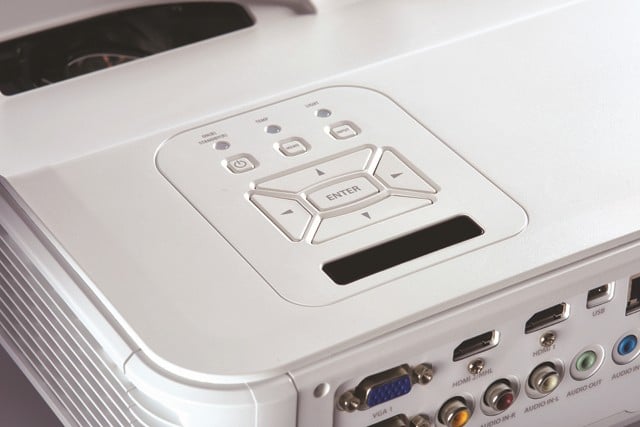

- - Built-in keypad
- - Compatible with Crestron RoomView, AMX, PJ Link
Accessories
- Standard

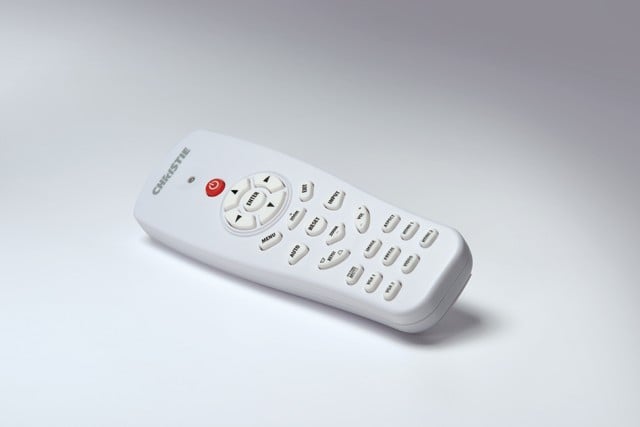

- - IR remote
- - AC Line cord for projector Head
- - VGA cable

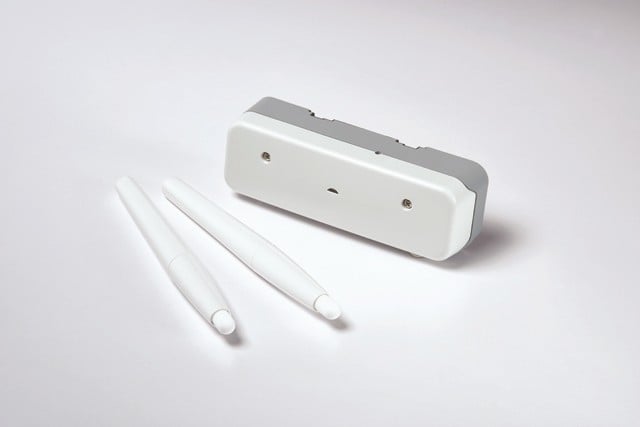

- - Camera for interactivity accessories
- - User manual
- Optional

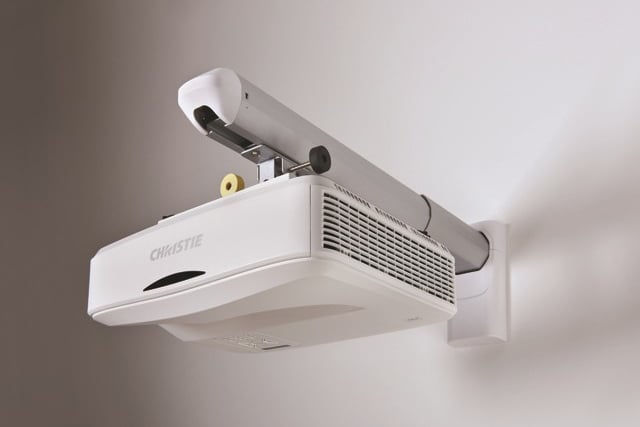

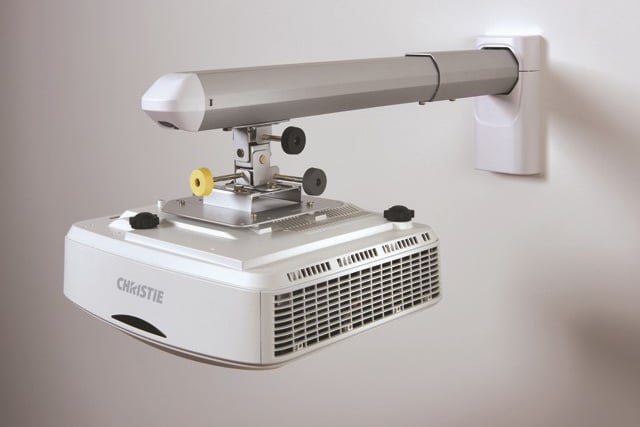

- - Wall mount
- - IR pens
- - Captiva Touch (laser IR curtain)
Due to constant research, specifications and features are subject to change without notice.
1Please reference the Christie Standard Limited Warranty document for details
