*This product is no longer available. View Christie's current line of projectors.

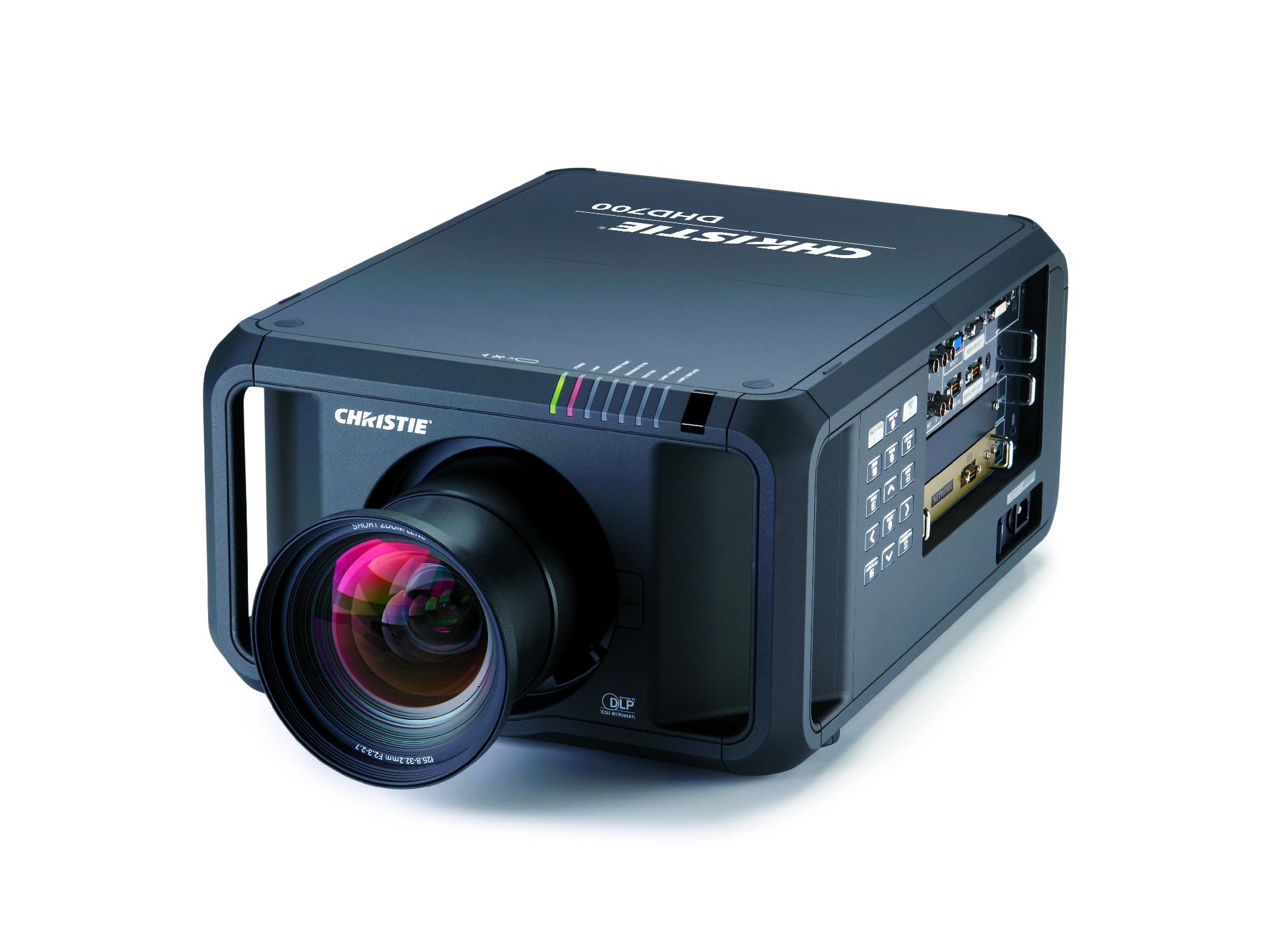

Offering you more options than any other HD single-chip DLP® projector on the market, the Christie DHD700 delivers high brightness in full HD (1920 x 1080) resolution. With a unique, user-changeable, twin-color wheel system (high brightness and rich-color option color wheels) you can tailor every presentation to maximize either high brightness needs or superior color reproduction. With an incredible 6500 ANSI lumens, and a series of six optional motorized, high definition lenses, the Christie DHD700 delivers superior image performance.

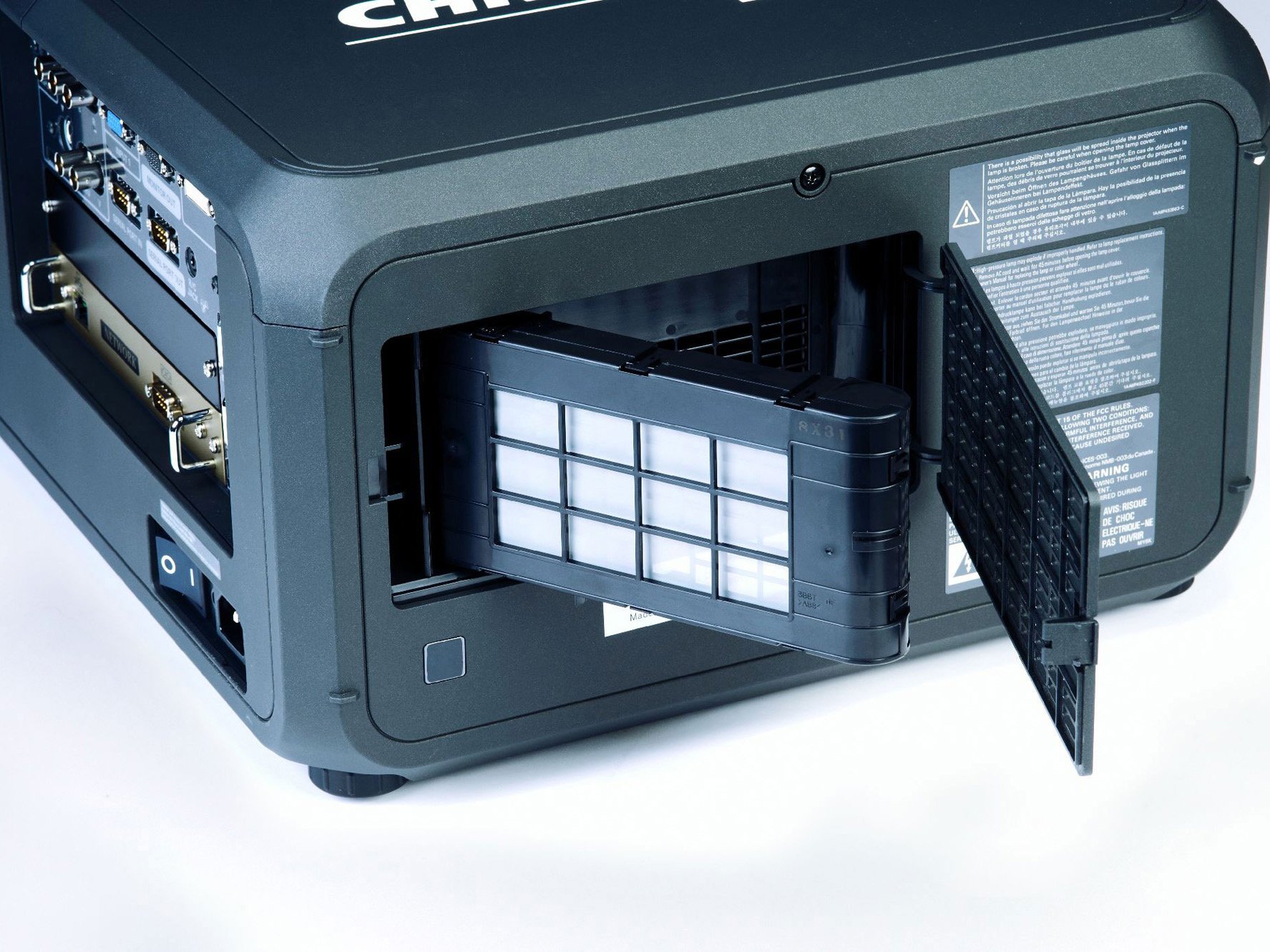

Featuring the latest in DLP® technology including Brilliant Color™ and Philips’ VIDI™ lamps, the Christie DHD700is a professional grade projector ready for 24/7 requirements. A sealed optical engine with optional extended-use Auto-filter ensures superior reliability in extended use applications.
Features
- 6500 ANSI Lumens (HI Bright CW) for high brightness presentation
- Up to 7500:1 contrast ratio with DynamicBlack™ for image clarity
- Full HD (1920 x 1080) native resolution with scaling to WUXGA and video up to 1080p for compatibility with most computers and video sources

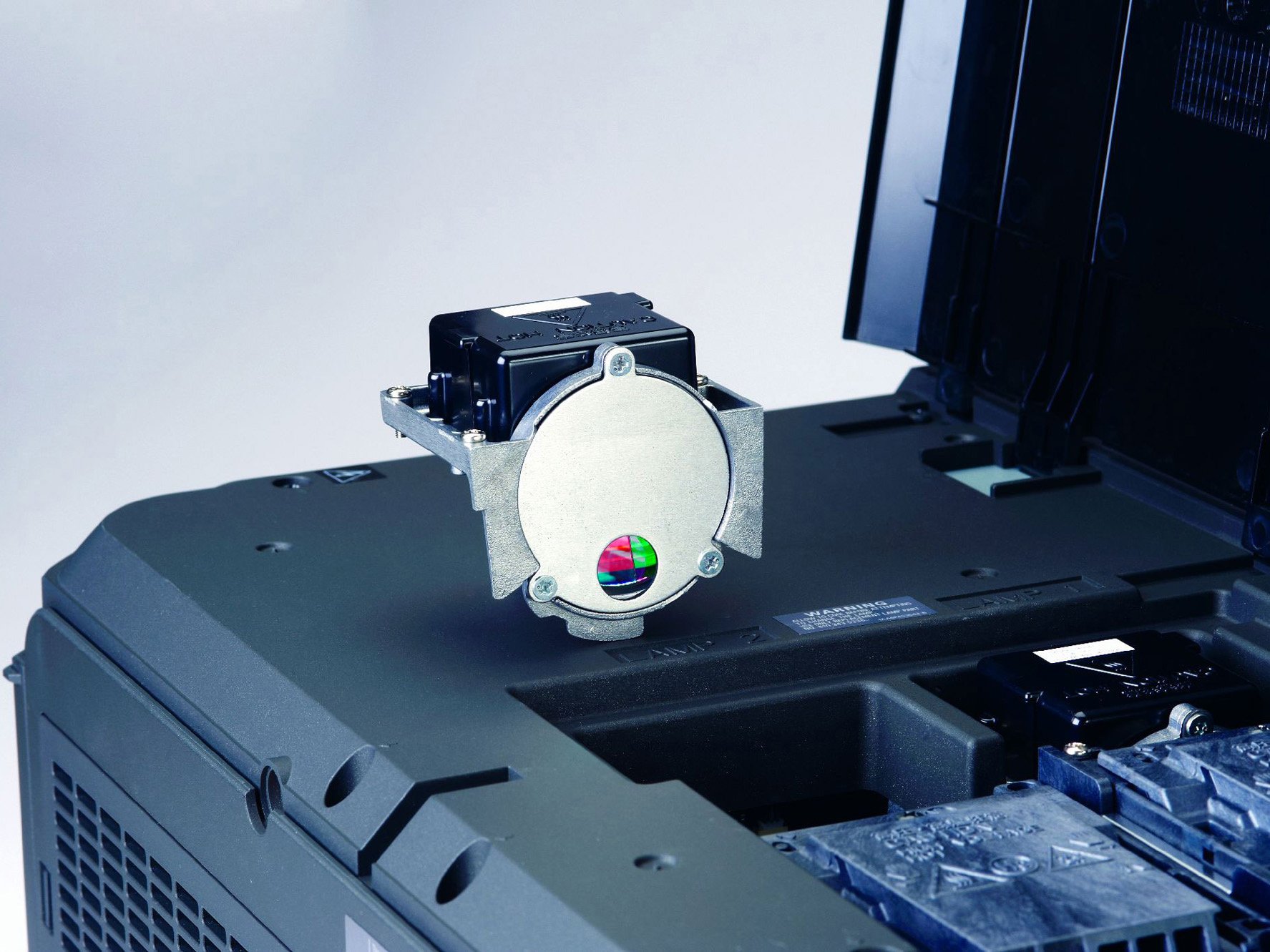

- Innovative user-changeable color wheels for high brightness or superior rich-color use
- Built-in color matching and edge-blending functions with the ability to edge blend on all four sides
- Flexible and customizable – install it anywhere, connect to virtually anything
Built-in color matching and edge-blending functions, picture-in-picture or picture-by-picture modes and low acoustic noise offer presentation confidence and installation flexibility. With a broad range of standard inputs, this 1-chip DLP® solution is flexible and customizable – install it anywhere, connect to virtually anything.
Exceptional image quality, 24/7 performance reliability, and unique application flexibility options, all backed by Christie’s renowned service and support – the Christie DHD700 is an excellent choice for large video presentations with high resolution content.
Specifications
- 6500 ANSI Lumens (HI Bright CW)
- Contrast Ratio: Up to 7500:1 with DynamicBlack™
Display Technology
- 1-chip 0.95" DLP light engine
- 1920 x 1080 full HD

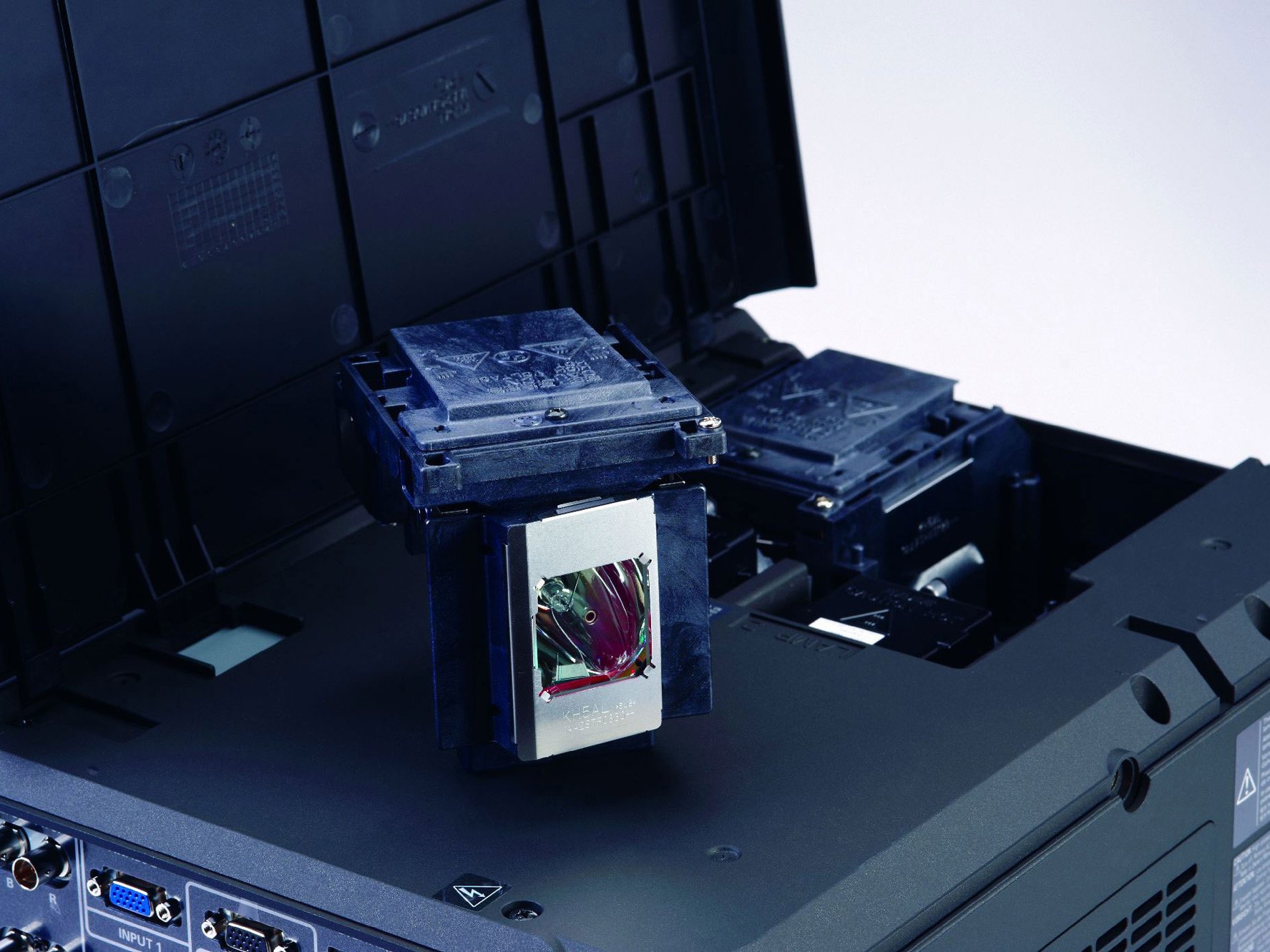

Lamp
- - Dual 330W VIDI™ UHP
- - Normal mode: up to 2000 hours
- - Eco mode: up to 2500
Input Signal Compatibility
- - WUXGA
- - UXGA
- - WSXGA+
- - SXGA+
- - SXGA
- - WXGA
- - XGA
- - SVGA
- - VGA
- - MAC
- - Video(480i,480P,575i,575p,720P,1080i, 1080p/psf)
- - Pixel clock: Analog 230 MHz / Digital 160MHz max
- - Scan Rates: 15–120 kHz horizontal and 48–120 kHz vertical

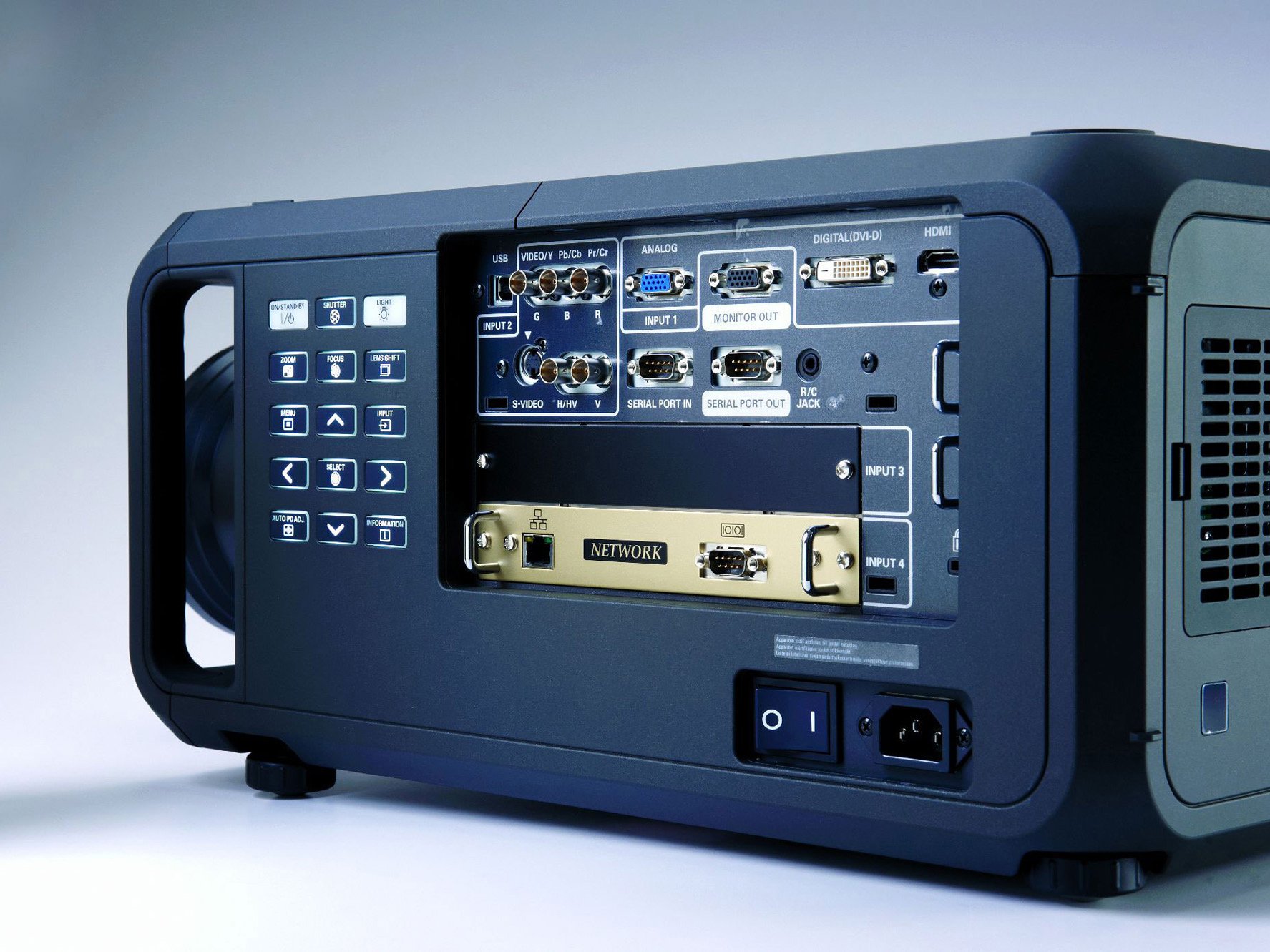

Inputs/outputs, control and networking
- - Input #1 – DVI-D x 1(Compatible with HDCP), HDMI x 1(v1.3b), D-Sub15 x1
- - Input #2 – BNC x 5 (R, G, B, H, V & Y, Pb/Cb, Pr/Cr & Composite), S-Video (Mini DIN 4-pin)
- - Input #3 – Option Card Slot
- - Input #4 – Option Card Slot (includes CCM-LX-I Network Card)
- - D-Sub15 Monitor out x 1
- - Serial Input – Dsub-9 x 1
- - Serial Output – Dsub-9 x 1
- - R/C Jack – Mini jack x 1 (wired remote)
- - USB Port B type (Service use only)
Lenses
- - The DHD700 is shipped without a lens. Choose the lens appropriate for your application.
- - Fix Lens HD 0.8:1
- - Short Zoom HD 1.2-1.5:1
- - Short Zoom HD 1.5-1.8:1
- - Standard Zoom HD 1.8-2.8:1
- - Long Zoom HD 2.8-5.0:1
- -Ultra Long Zoom HD 4.8-8.0:1
Due to constant research, specifications and features are subject to change without notice.
Downloads
Christie DHD700 RS232 Codes
May 24, 2011 | PDF: 204 KB
This PDF document describes the serial communications (frequently referred to as RS232 codes) of the Christie projectors listed below. These communications allow the control of the projector by an external controller, such as an AMX or Creston controller. Once connected to the RS-232 port of the projector, controllers can access projector controls and setups, issue commands and receive replies. Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
Christie DHD700 Serial Communications Protocol-Expanded
Apr 21, 2010 | PDF: 674 KB
This PDF document describes the serial communications (RS232 codes) of the Christie projectors and/or display equipment listed below. These communication protocols allow for the control of the Christie projector by an external controller, such as an AMX or Creston controller. Once connected to the RS-232 port of the projector, controllers can access projector controls and setups, issue commands and receive replies. Contact our technical support center or your Christie Sales Manager if you require more information or assistance.
