*This product is no longer available. View Christie's current line of projectors.

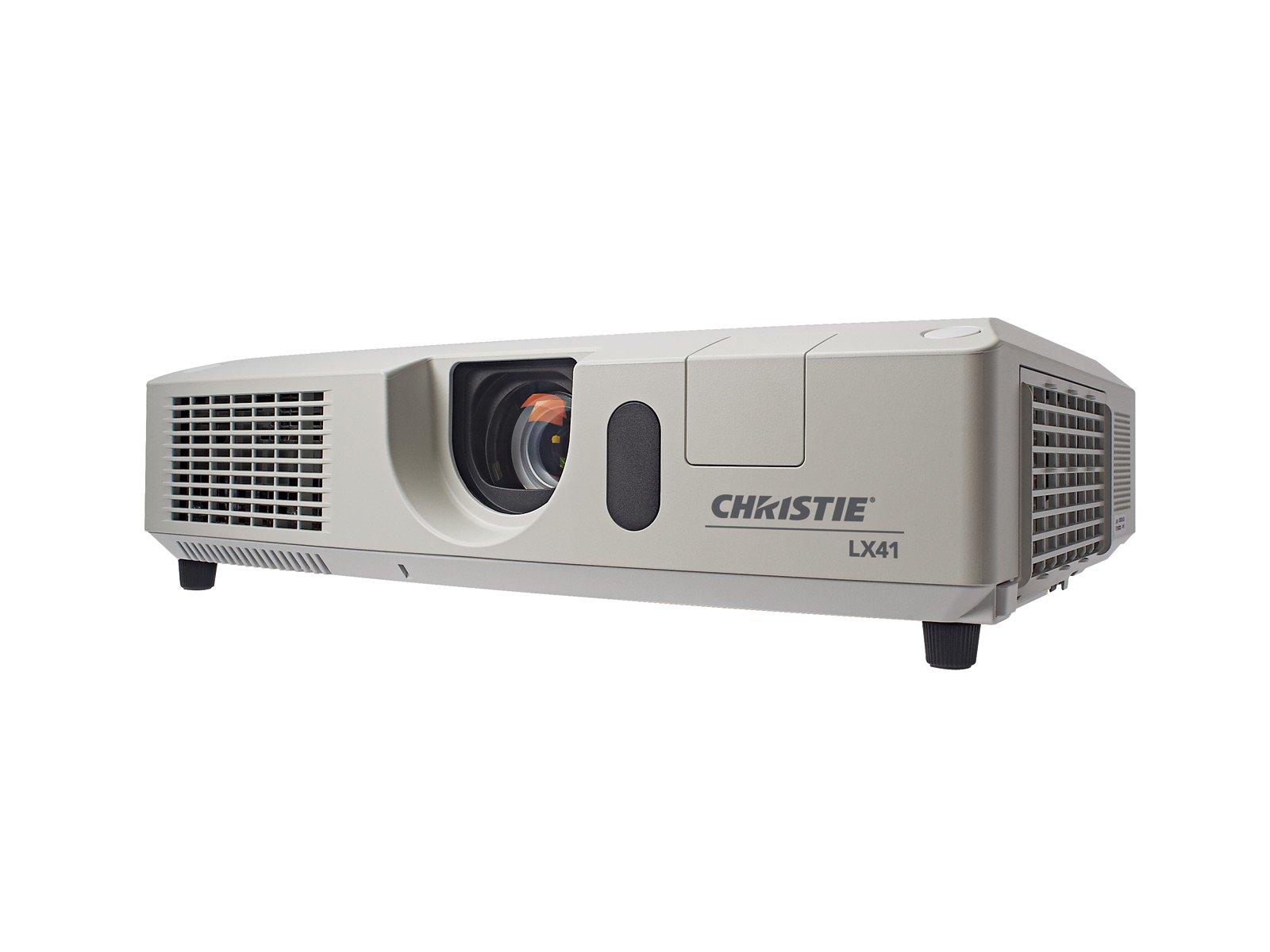

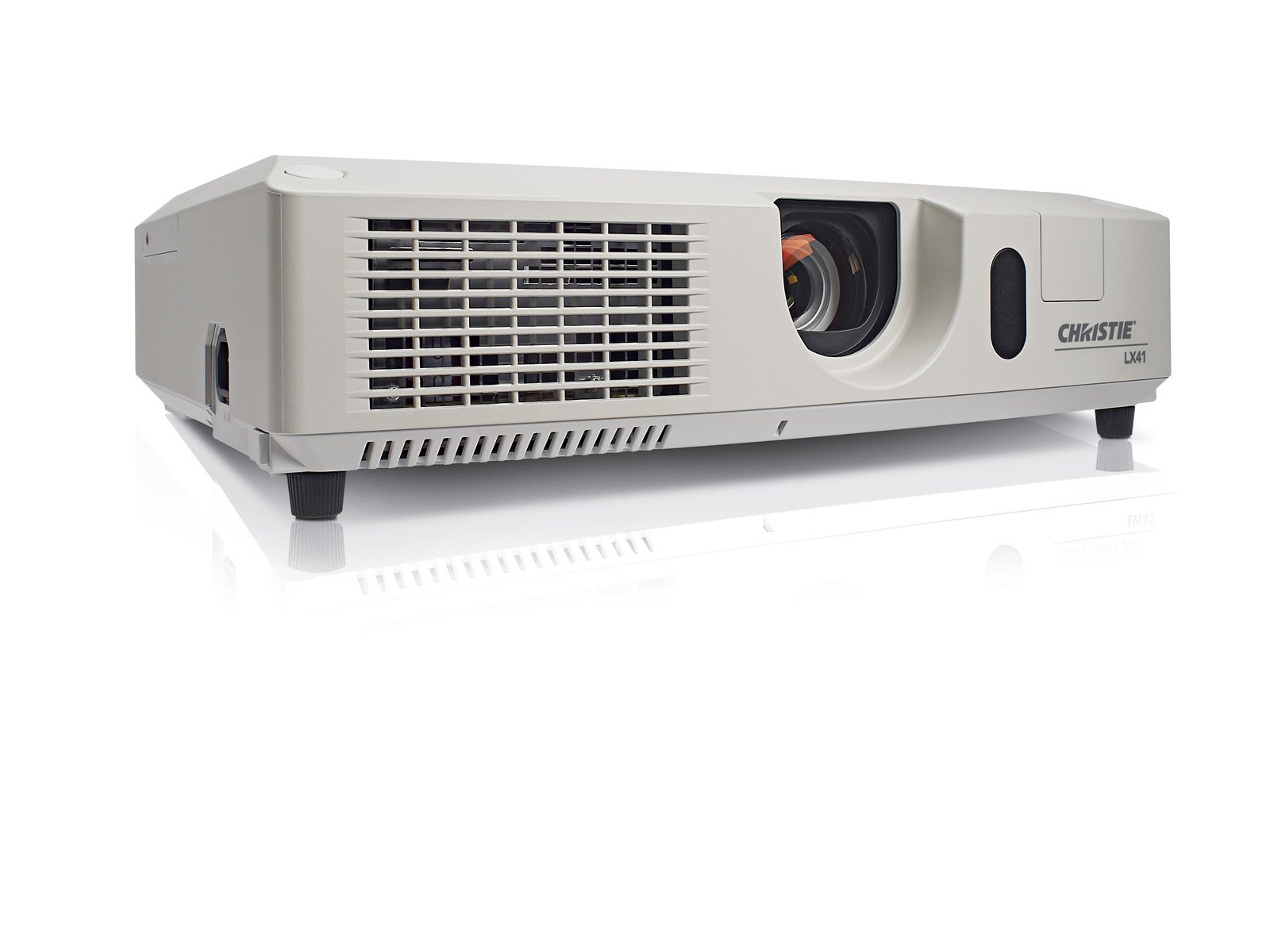

The Christie LX41 is a bright, affordable option in XGA (1024 x 768) resolution. It meets ProAV feature requirements in small to medium-sized venues. The Christie LX41 is ideal for corporate AV, higher education, and house of worship applications or for any organization that requires a full-featured, portable XGA projector in the 4000 ANSI lumens range. This projector is designed for today’s needs for network capabilities and advanced plug and play features for third-party integration.
With flexible installation needs in mind, the Christie LX41 ships standard with a 1.7 x manual zoom lens and 3D Keystone™ geometry correction that will simplify installation and maintenance of the display.
As with all Christie LCD projectors, the Christie LX41 is backed by a three-year warranty and Christie’s renowned service and support.
Features
- 4000 ANSI lumens
- XGA (1024 x 768) resolution
- 1.7x manual zoom lens for greater flexibility of installation options
- 3D Keystone geometry correction technology with (simple) curved screen capabilities
- A multi-PC display option for collaborative presentation display (up to 4 PCs)
- AMX Device Discovery1
- High-resolution HD content capabilities
- LAN networking for asset management, monitoring and content delivery
1 AMX Device Discovery is a technology integrated into manufacturers' products to make programming easy and operation with an AMX control system effortless. Embedding this AMX exclusively-designed technology improves the way A/V installations are programmed, managed and operated.
Specifications
- 4000 ANSI lumens
- 2000:1 (Full on/off)
Display technology
- - 3 x 0.63” inorganic LCD
- - XGA 1024 x 768 resolution
- - 245W UHP lamp
Signals compatibility
- SDTV: 480i, 480p, 576i,576p • HDTV: 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz
- VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA, MAC 16"
Scan rates
- 27-162 MHz (see user’s manual for detail information)
Inputs, control and networking
- - Video Input: S-video – Mini Din 4 pin x 1; Composite video – RCA x 1; Component video – RCA x 3
- - Audio Input: 3.5 mini x 2 RCA x 2 (L/R)
- - Computer Input: D-sub 15 pin x 1
- - HDMI Input: HDMI x 1 (HDCP compliant)
- - USB: USB type A x1 for PC-Less presentation; USB type B x 1 for USB display or mouse control
- - LAN: RJ45 x 1 wired network
- - Microphone input: Mono 3.5 mini x 1 (Dynamic and unbalanced microphone)
Optical system
- - Standard lens included - 1.7 x zoom lens
- - Manual zoom and focus (1.5-2.5:1 throw ratio)
- - Vertical lens shift Up/Down ± 50%
- - Horizontal lens shift left/right ± 8% (calculations based on center lens center image using standard zoom lens)
Downloads
Christie LX41/LW41 Datasheet (China)
Dec 13, 2012 | PDF: 226 KB
This is the PDF product brochure that outlines key features, specifications and uses for the Christie products listed below. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.
Christie LX41 and LW41 Datasheet
Jun 08, 2012 | PDF: 201 KB
This is the PDF product brochure that outlines key features, specifications and uses for the Christie products listed below. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.

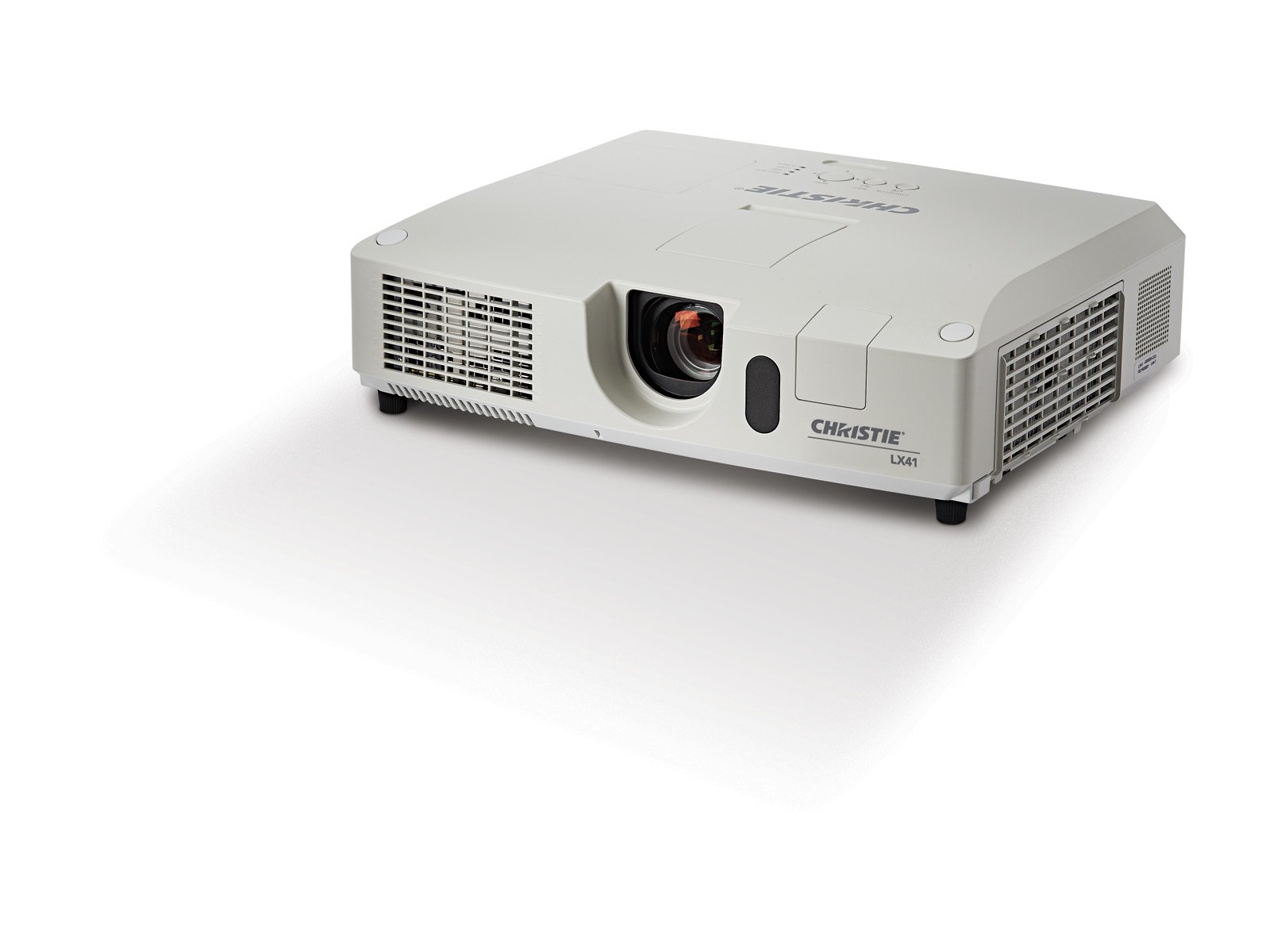

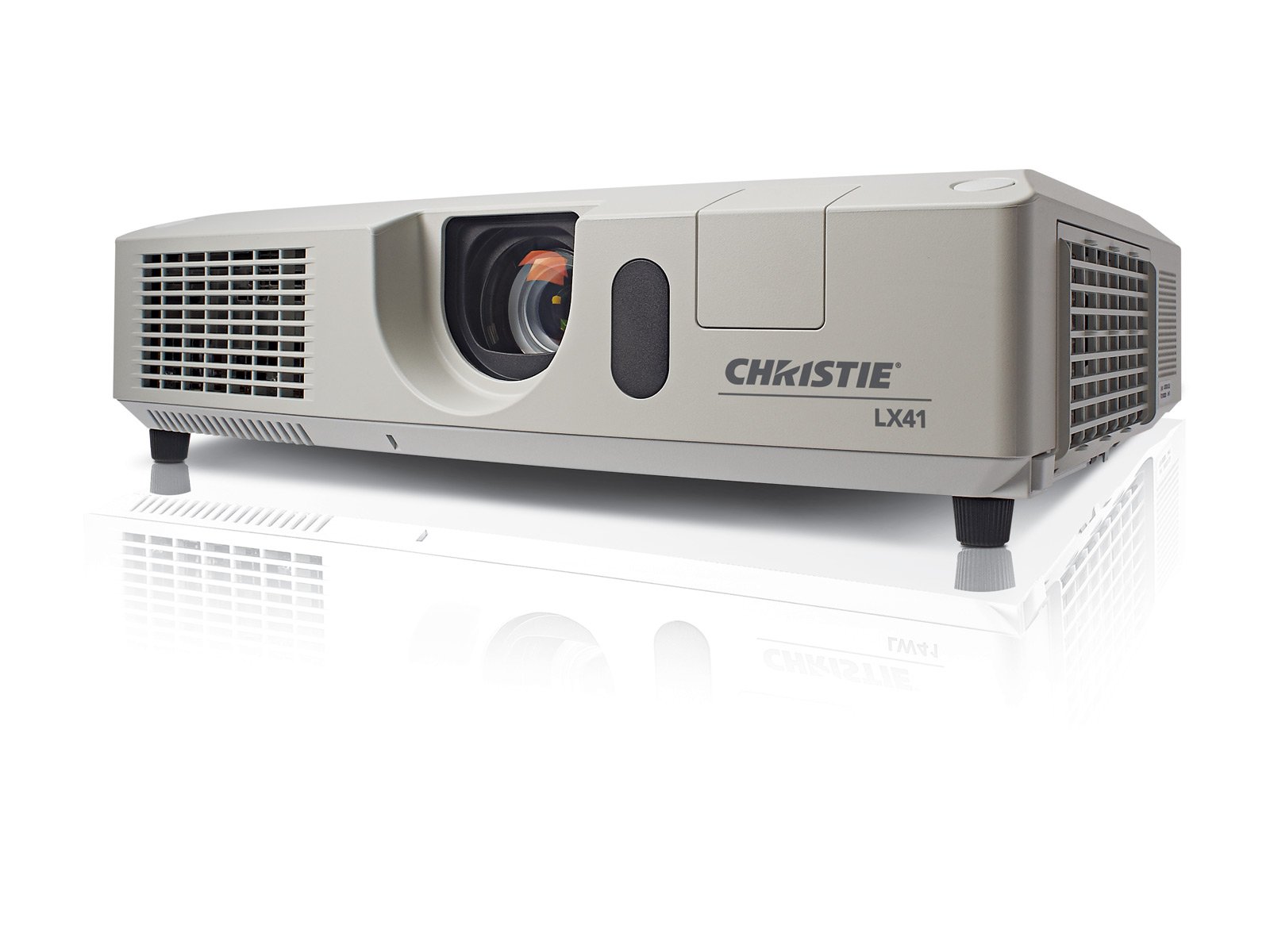

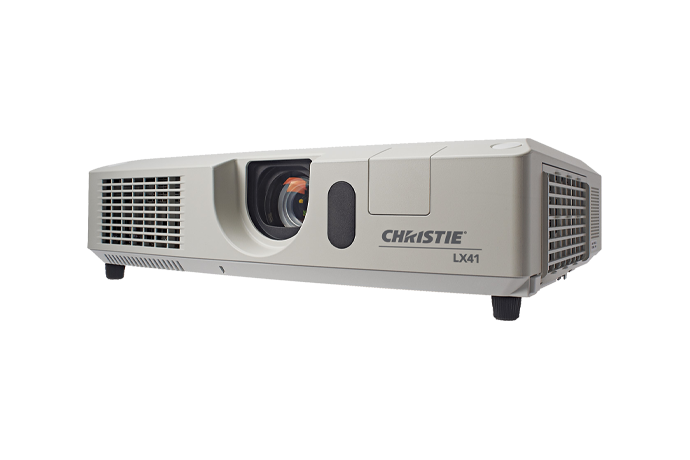

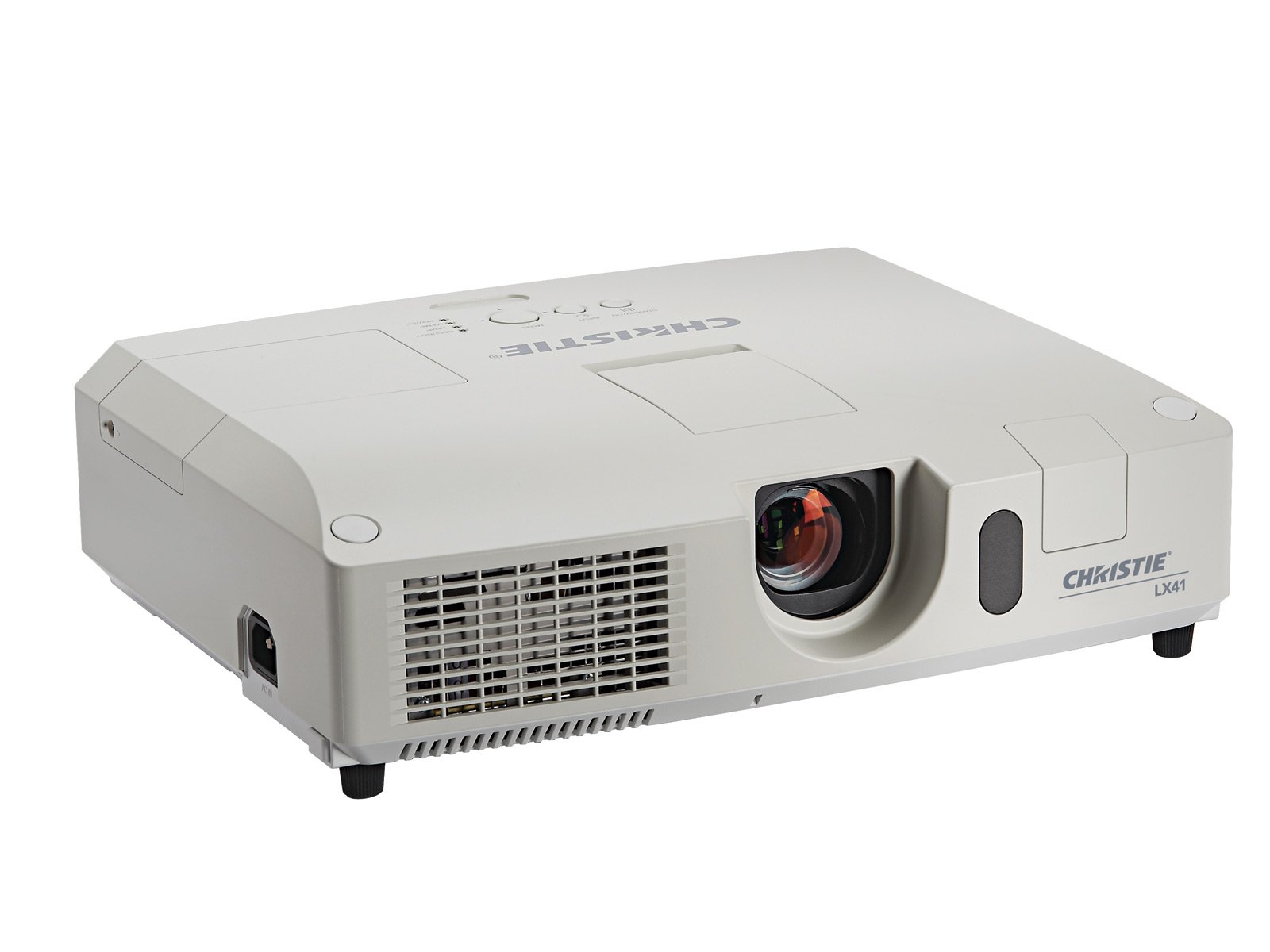

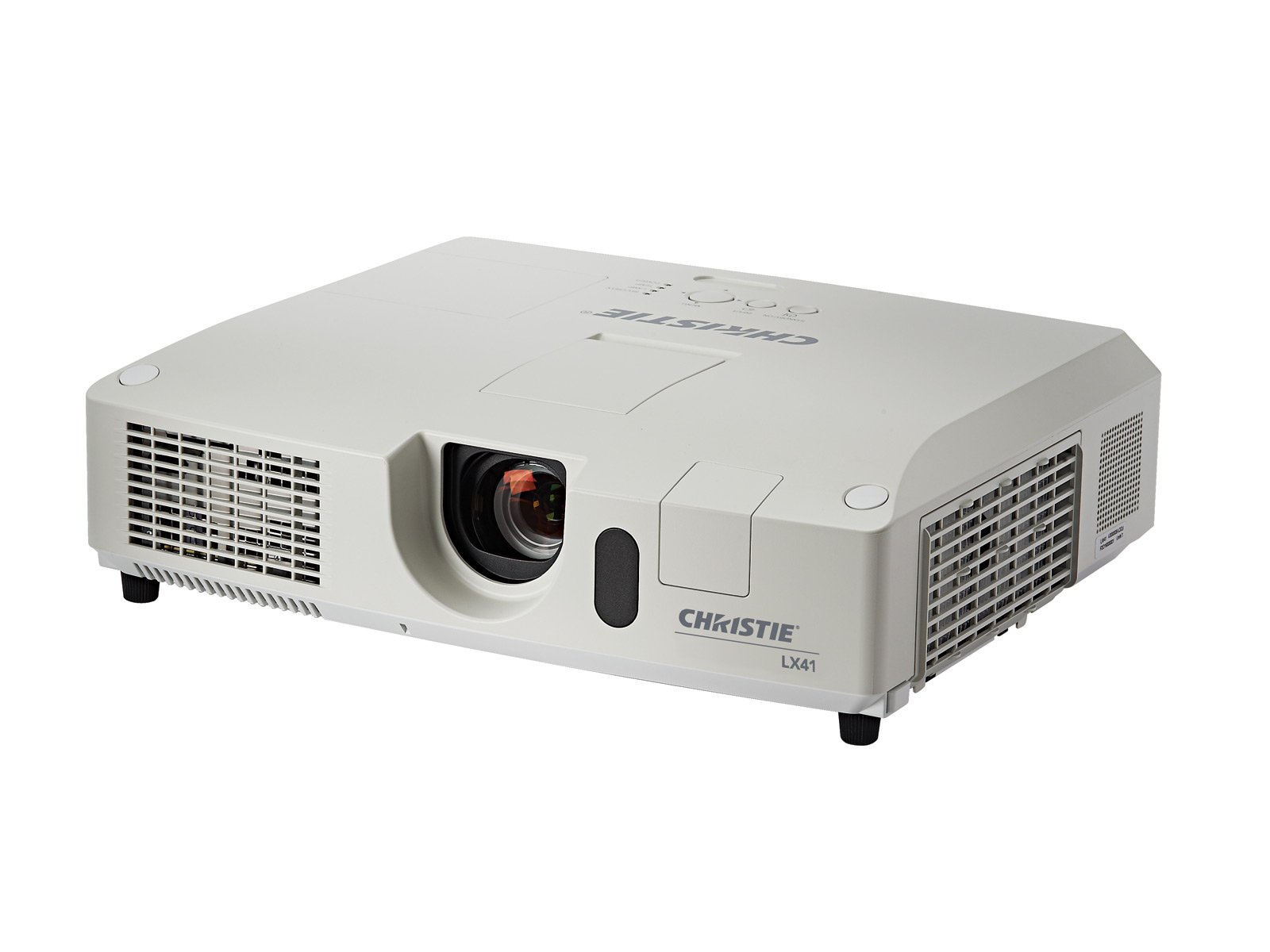

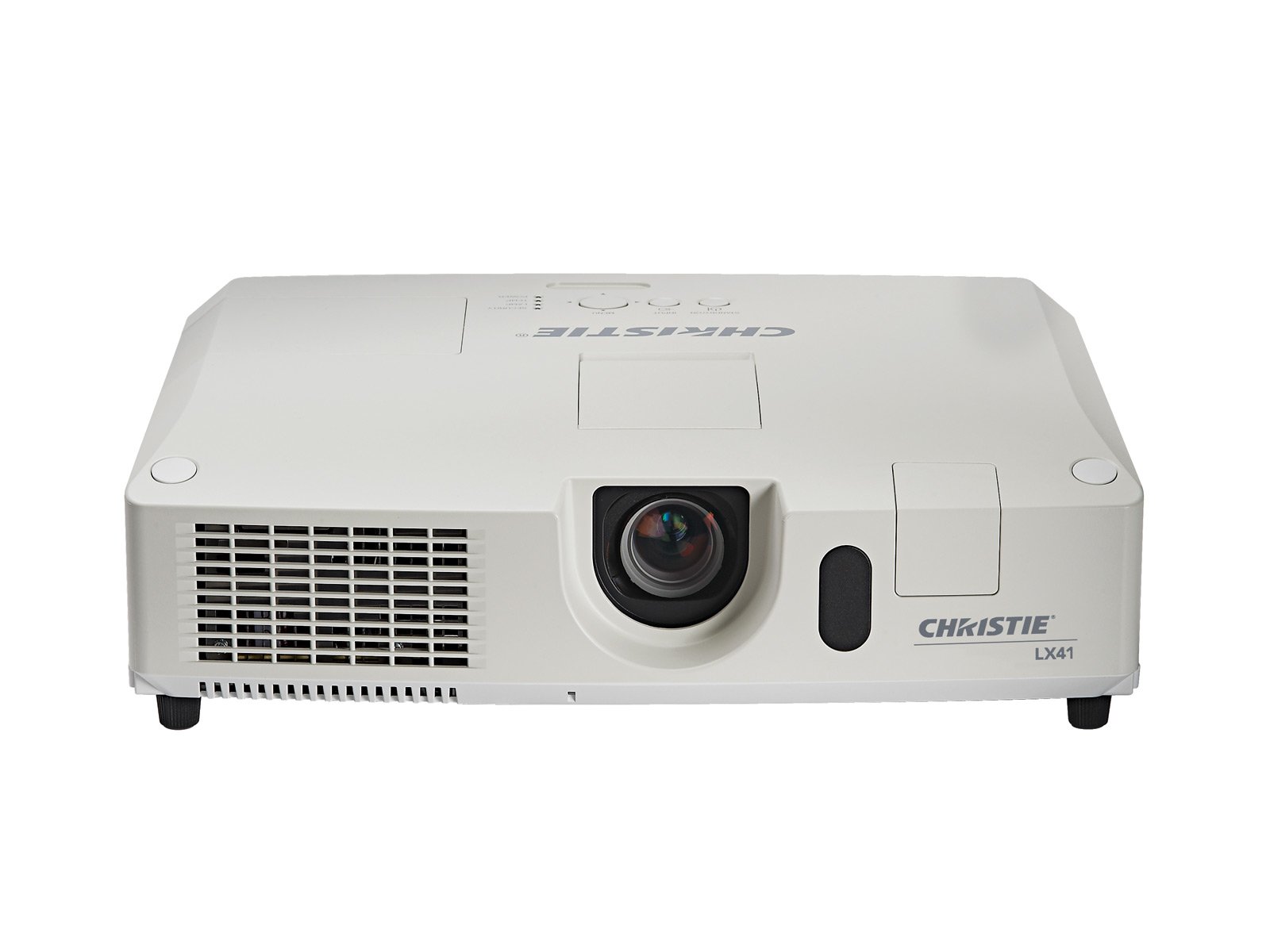

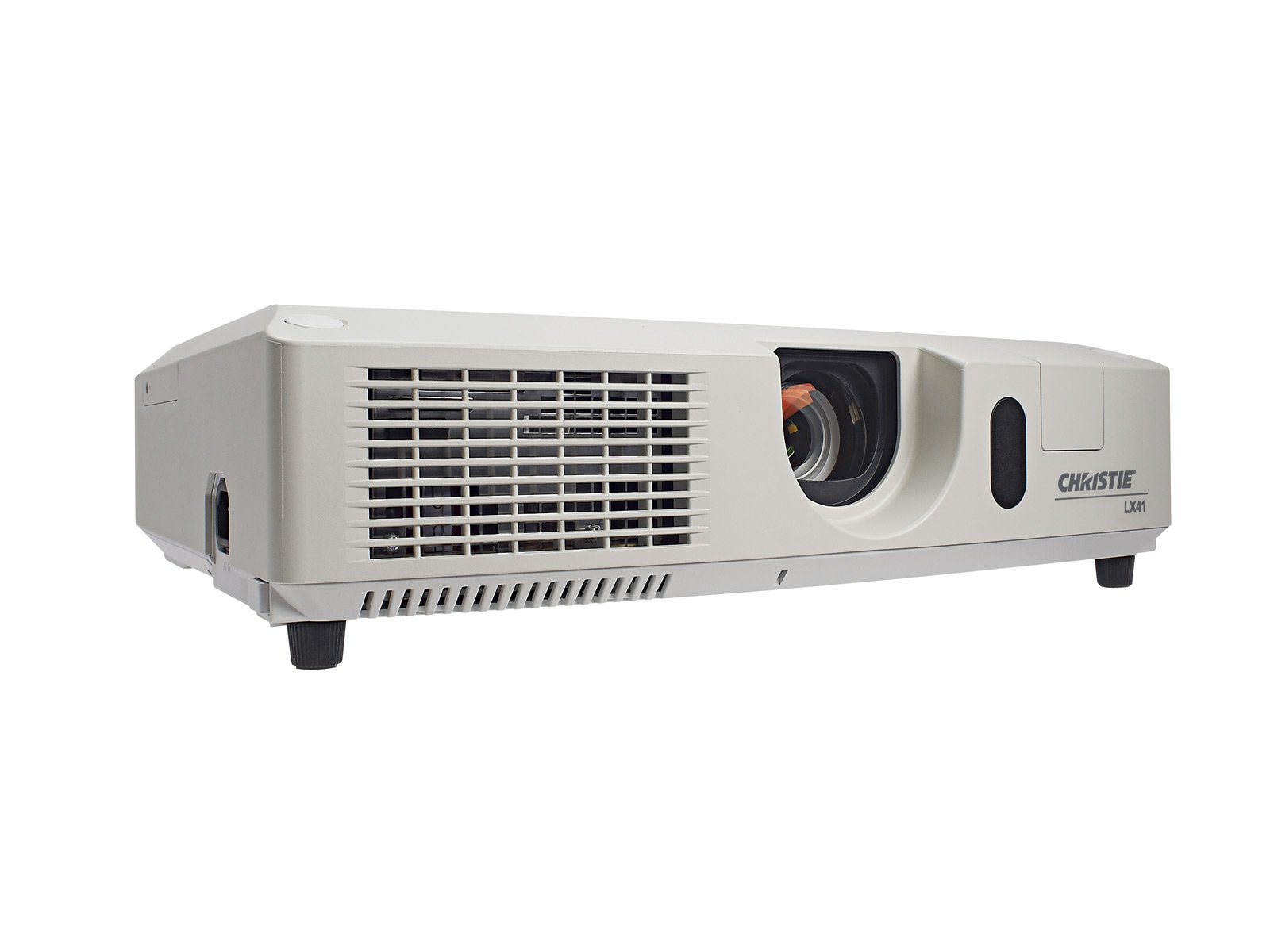

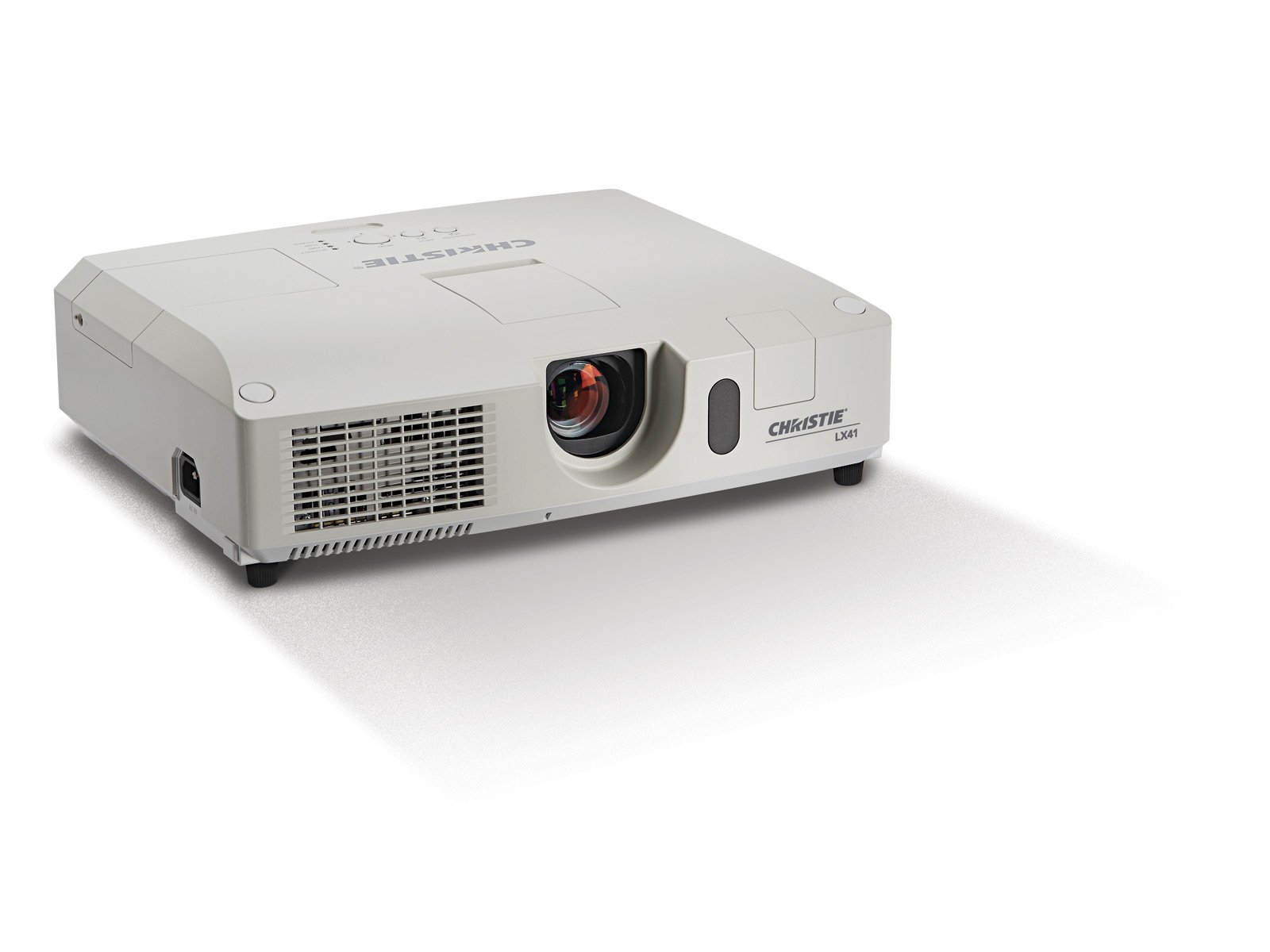

Images
