*This product is no longer available. View Christie's current line of projectors.
This high performance 40,000 lumen, 4K resolution, RGB laser projector features advanced TruLife™ electronics and our proprietary RGB laser illumination technology for amazing visualization and 3D experiences.
Incredible image fidelity
Christie® TruLife electronics unlocks the full performance potential of RGB laser illumination. Supporting frame rates of 4K 120Hz and 240-480 Hz @ 2K resolution, TruLife delivers unrivaled, blur-free visual experiences. Combine this with 3D capability, an expanded color gamut, and high-contrast RGB pure laser illumination technology and the Mirage 4K40-RGB is ideal for advanced visualization, lifelike 3D experiences and groundbreaking theme park attractions.
All-in-one design
Thanks to our engineering expertise, we designed the smallest and lightest high-brightness RGB laser projector available. There are no heavy external chillers, remote laser racks, or special pedestals - everything is completely integrated into a single chassis.
Key features
- All-in-one, compact design – No external chillers or laser racks and a manageable weight of 285lbs makes it the smallest and lightest high-brightness RGB laser projector available
- Omnidirectional – Operates in any orientation for unlimited installation flexibility
- Reliable, stable light source – Christie RealLaser® provides over 20,000 hours of optimal brightness performance
- Christie Twist™ – Built-in warping and blending
- High-contrast – Achieves 5,000:1 On/Off contrast for amazing depth of detail
- Expanded color gamut – Produces >95% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
- Energy efficient – Consumes less power than any other 40,000 lumen RGB pure laser projector with 220V single phase operation
- Christie TruLife electronics – Powerful processing that delivers ultra-high resolution, high frame rate video up to 120fps and unprecedented image fidelity at 4K resolution and 240Hz at 2K resolution

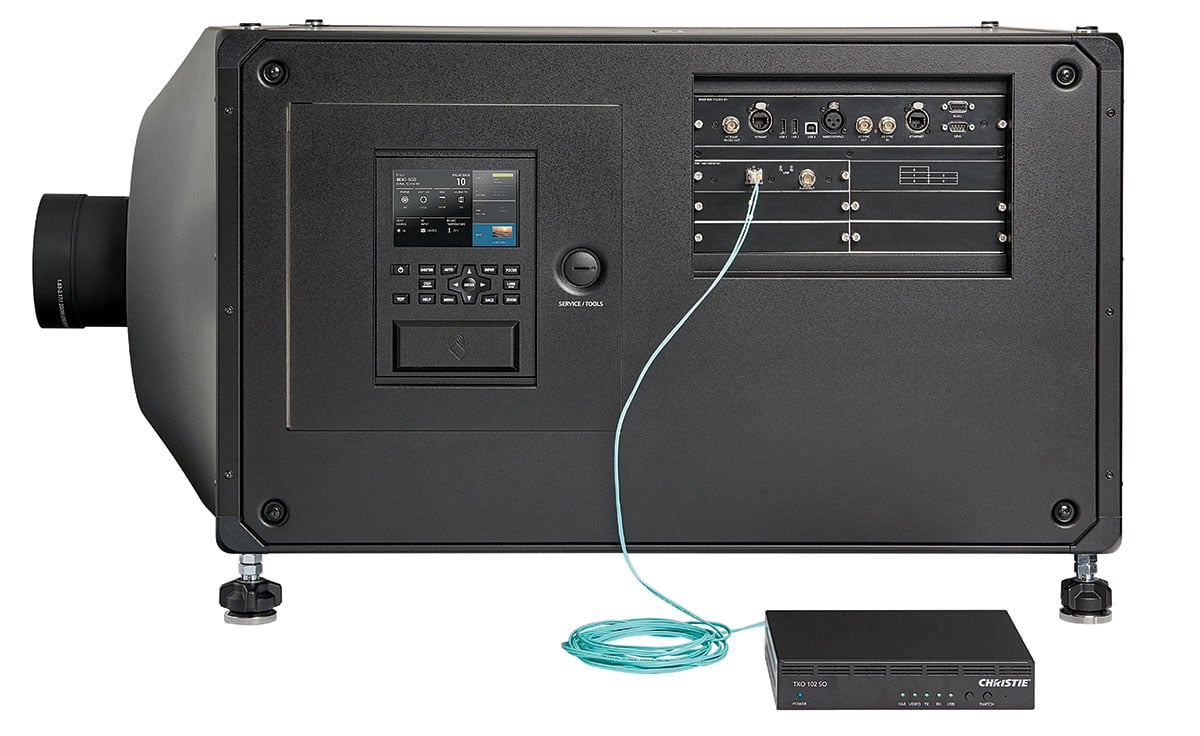

- Christie Terra® input card – Seamlessly integrates into SDVoE networks
- 4K lens compatibility – Compatible with most Christie 4K lenses
- Field-replaceable light source – Provides easy service and replacement of the laser light source
Quick links
-
Top 10 reasons to choose RGB laser projection
Videos
Christie RGB pure laser projectors and Terra AV-over-IP deliver robotic surgery learning at IRCAD
Specifications
ISO lumens
45,000
ANSI lumens
40,000
Contrast ratio
5,000:1 On/Off*
Dynamic contrast
N/A
Display type
3DLP 1.38" sealed to the prism
Resolution
4K (4096 x 2160)
* Using high contrast lens which reduces brightness by 30%.
**To 50% brightness.
*** Terra does not support 4K @120Hz operation.
Customer stories
Downloads
Projection solutions and tools line card
Jan 19, 2024 | PDF: 451 KB
End of production notice - multiple projectors
May 01, 2023 | PDF: 81 KB
On May 1, 2023, Christie Griffyn® 4K32-RGB, Crimson HD31, D4K40-RGB, Mirage 4K40-RGB, D20HD-HS, and D13HD2-HS projectors reached end-of-production status.
Top 10 reasons to choose RGB laser projection
Apr 15, 2022 | PDF: 392 KB
Learn about all the reasons why RGB laser projection
Christie Mirage 4K40-RGB datasheet
Jun 03, 2019 | PDF: 297 KB
This document outlines the key features and specifications for the Christie Mirage 4K40-RGB laser projector.
