*This product is no longer available. View Christie's current line of projectors.

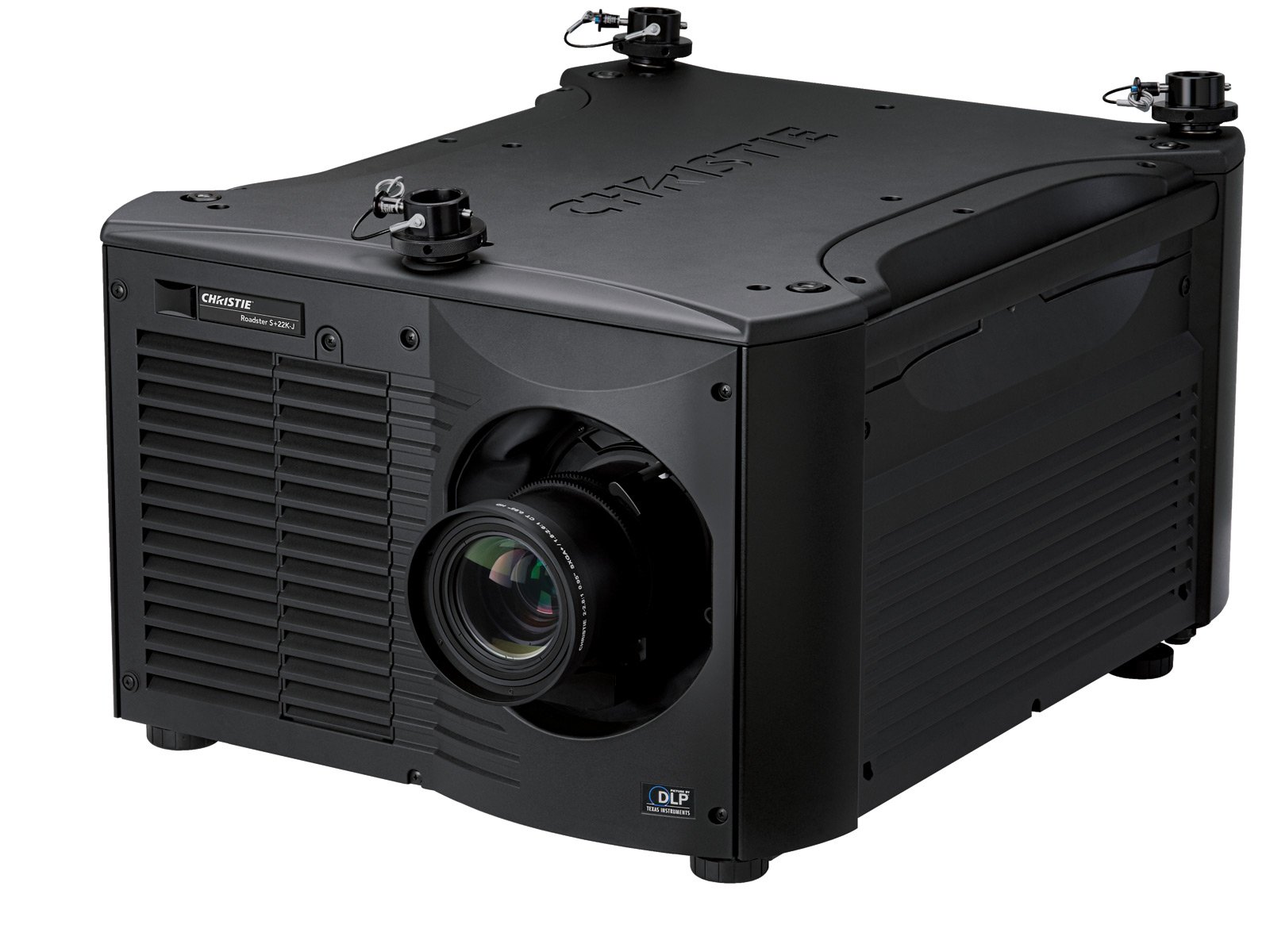

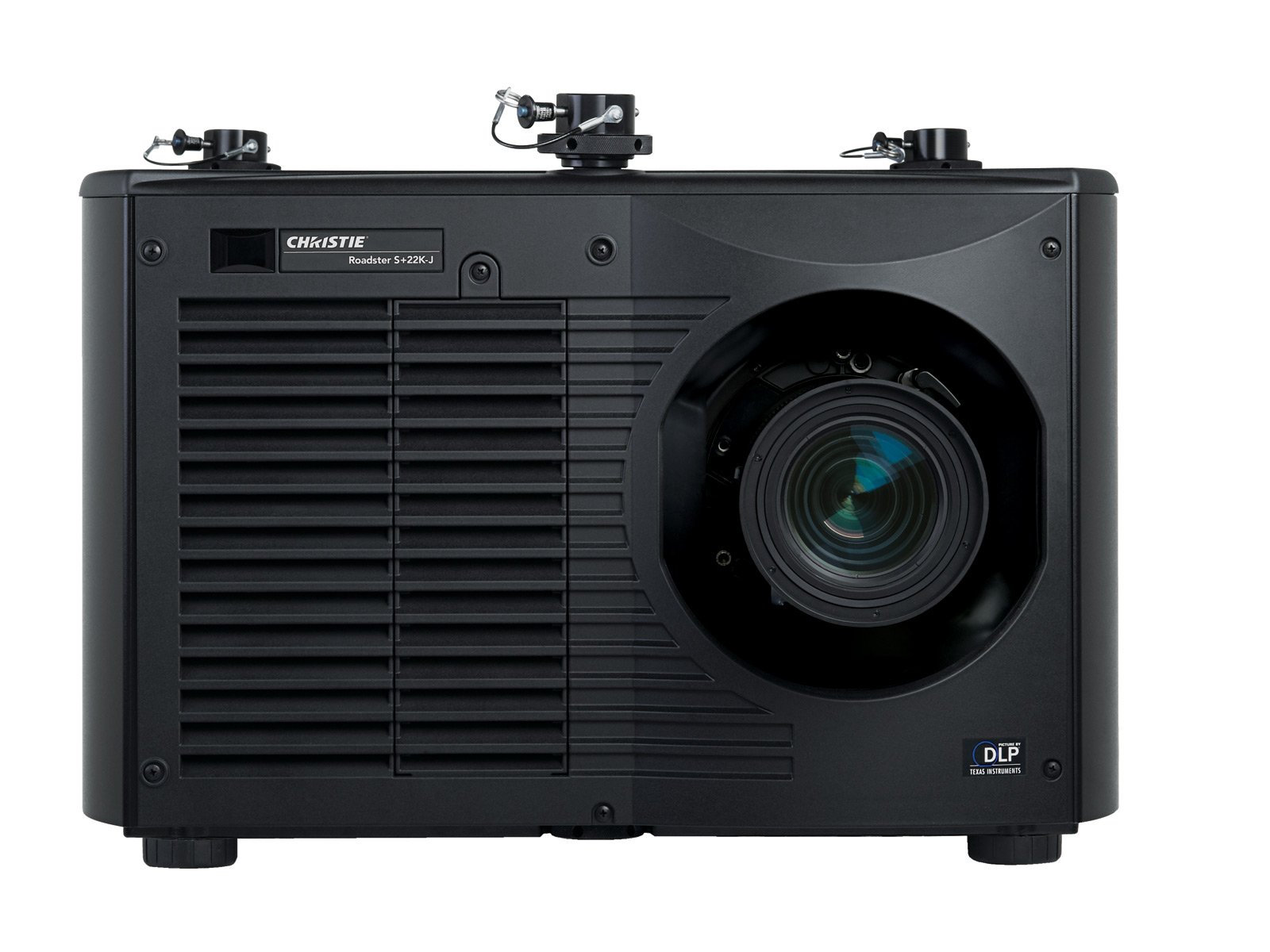

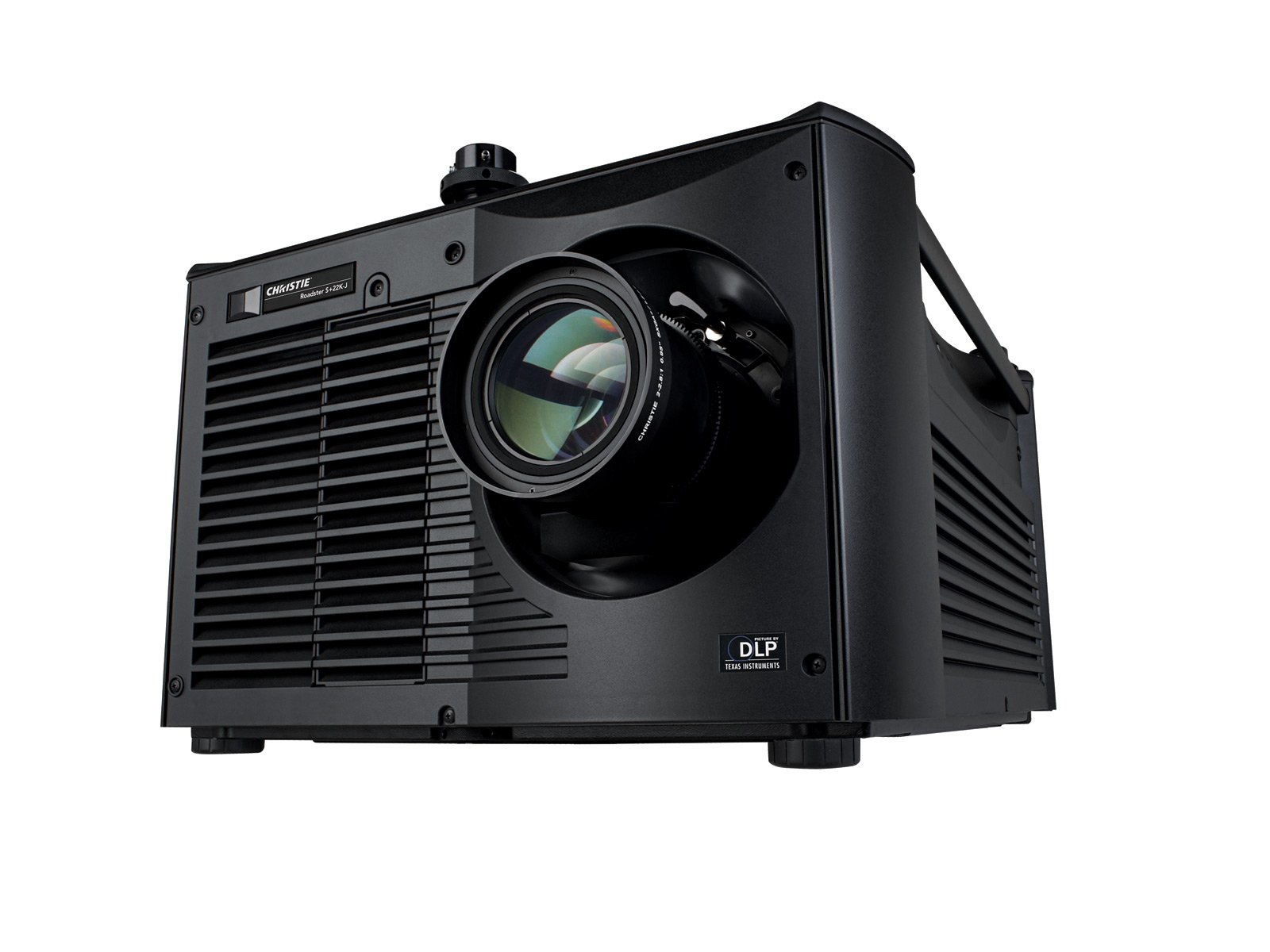

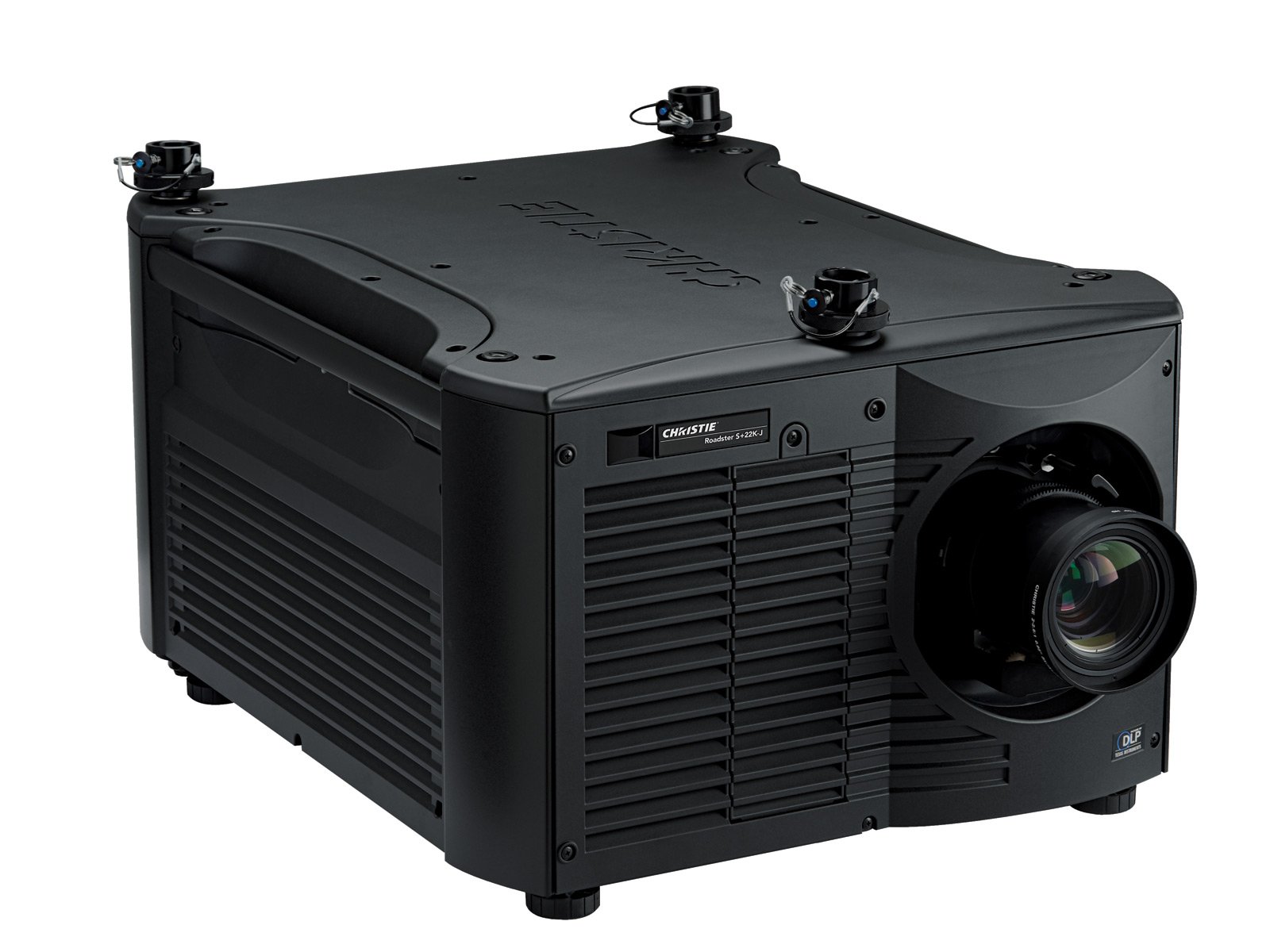

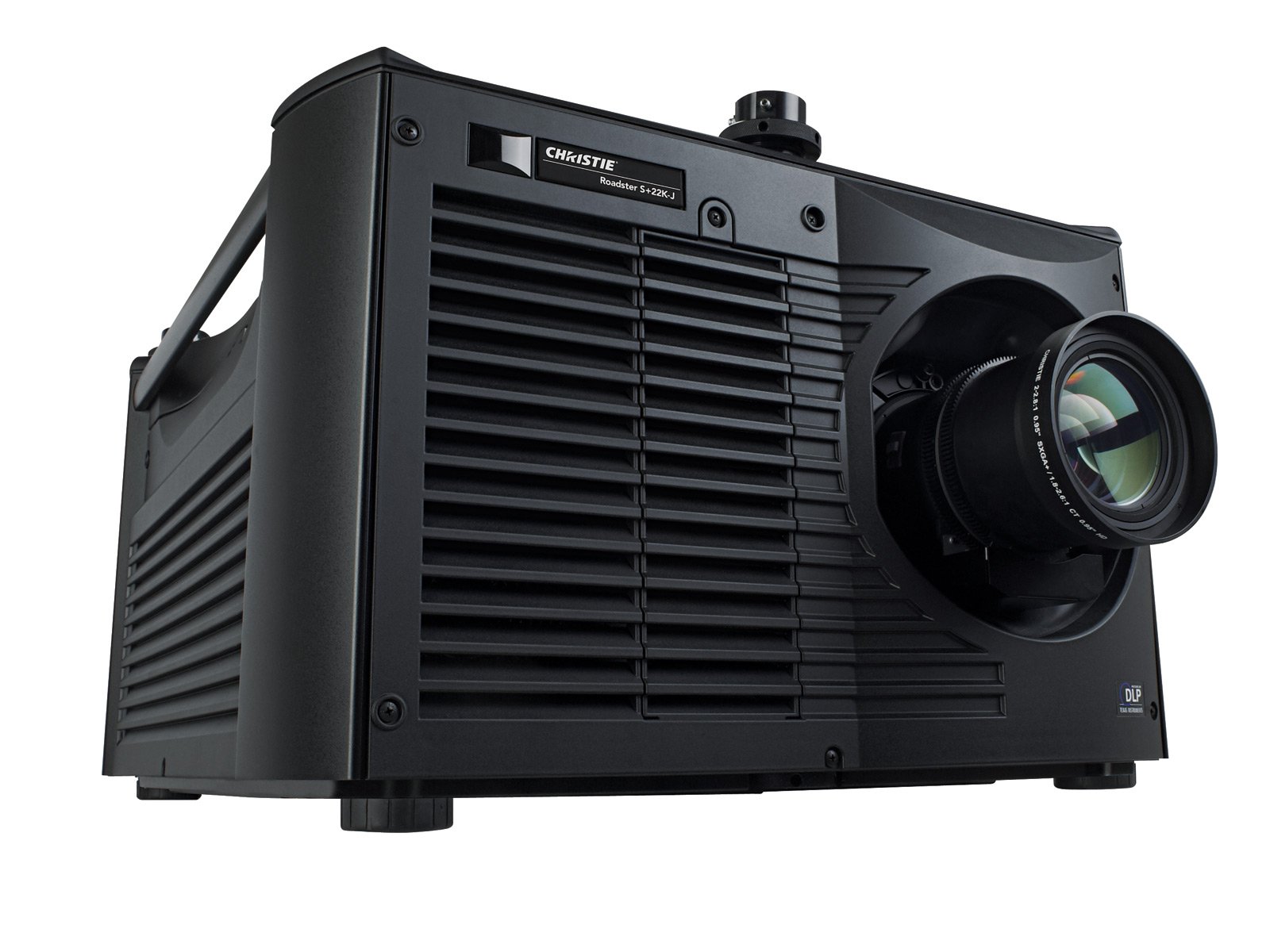

Creating visually compelling displays is paramount to your success. That’s our business too, so we’ve made higher brightness, Christie® Twist™, 3D upgradability and flexibility standard in the Christie Roadster S+22K-J. You’ll see we’ve upgraded our existing Xenon 3DLP® platform with the features and functionality that you rely on to share, collaborate and create.
Ideal for large venues - building displays, churches, classrooms, concerts, conference rooms, live events, tradeshows and more, the Roadster S+22K-J is fitted with the broadest range of high-quality lenses – all with Intelligent Lens System (ILS™) capabilities. You can use existing stacking hardware, lenses1, lamps, input cards2 and other Christie accessories with this new line of projectors. Fly, rig, stack and ship it - the Roadster S+22K-J performs flawlessly.
This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility. The additional standard features, an expanded lens suite and world-renowned Christie warranties, service and support, ensure the Christie Roadster S+22K-J provides high performance and more lumens per watt in the smallest chassis in its class.
With the Christie J Series you can customize your model according to your needs. Each projector ships standard with the ILS lens mount, but if you prefer to use your existing inventory of CT lenses or require a yellow notch filter (YNF), you can choose, at the time of purchase, the following options:
- ILS lens mount (ships standard)- 132-016119-XX
- ILS lens mount + YNF* - 132-016311-XX
- CT lens mount*- 132-016210-XX
- CT lens mount + YNF*- 132-016412-XX
Features
- SXGA+ resolution (1400 x 1050)
- 22,000 center lumens
- Embedded Christie Twist™ for image warping and edge blending
- Variable contrast ratio of 1600-2000:1 full field | 650:1 ANSI for crisp, detailed images
- 3.0kW Xenon bubble lamp module
- Comprehensive Color Adjustment (CCA™)
- Dust-sealed engine

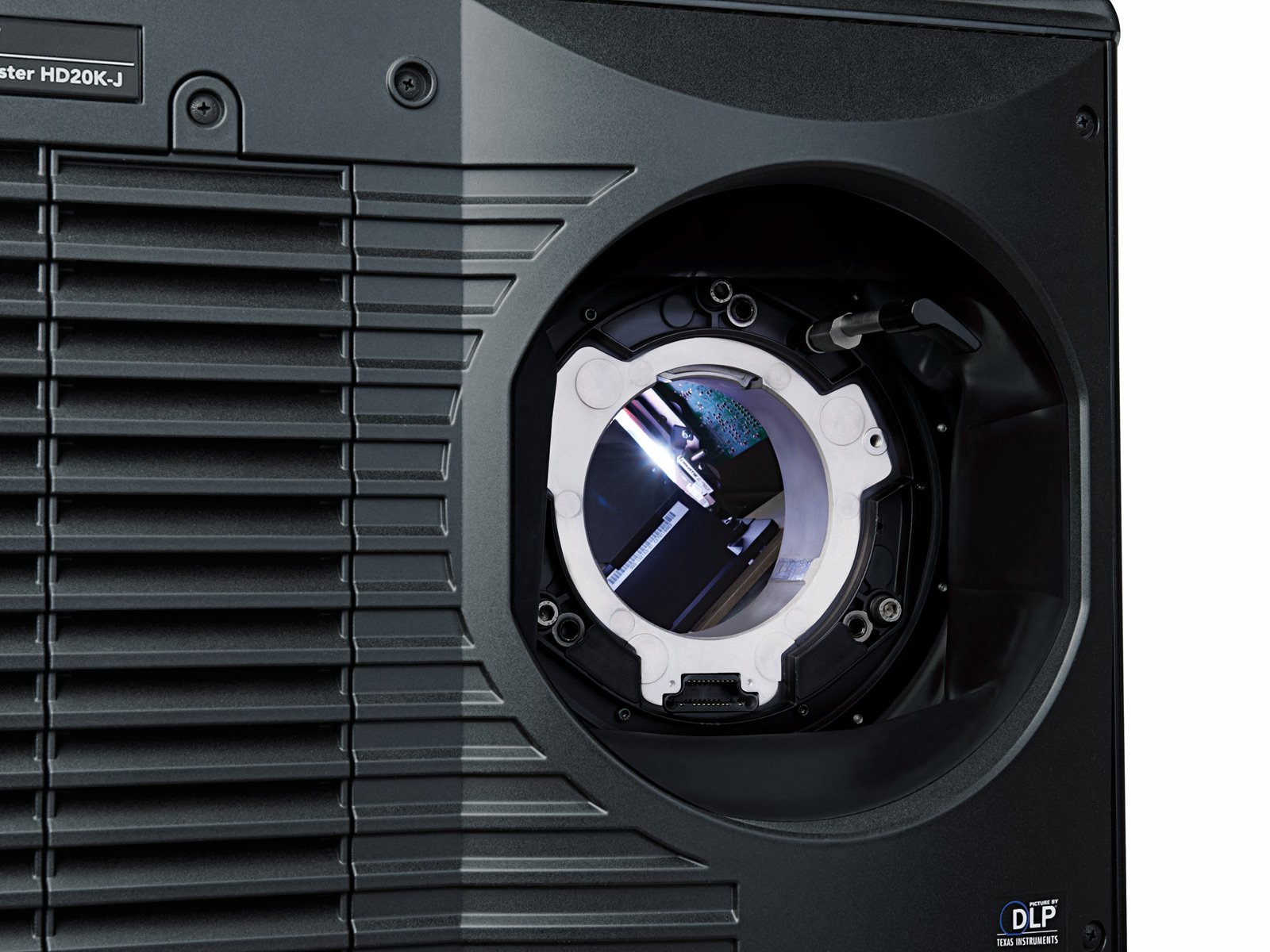

- Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
- Multiwindowing and screen processing (up to a 3x3 array)
- CT lens mount (optional)
- Yellow notch filter (optional)
- Set-up lights help users see menu displays in low-light environments
- Hybrid stacking
- User-replaceable lamps
- Built-in portrait capabilities

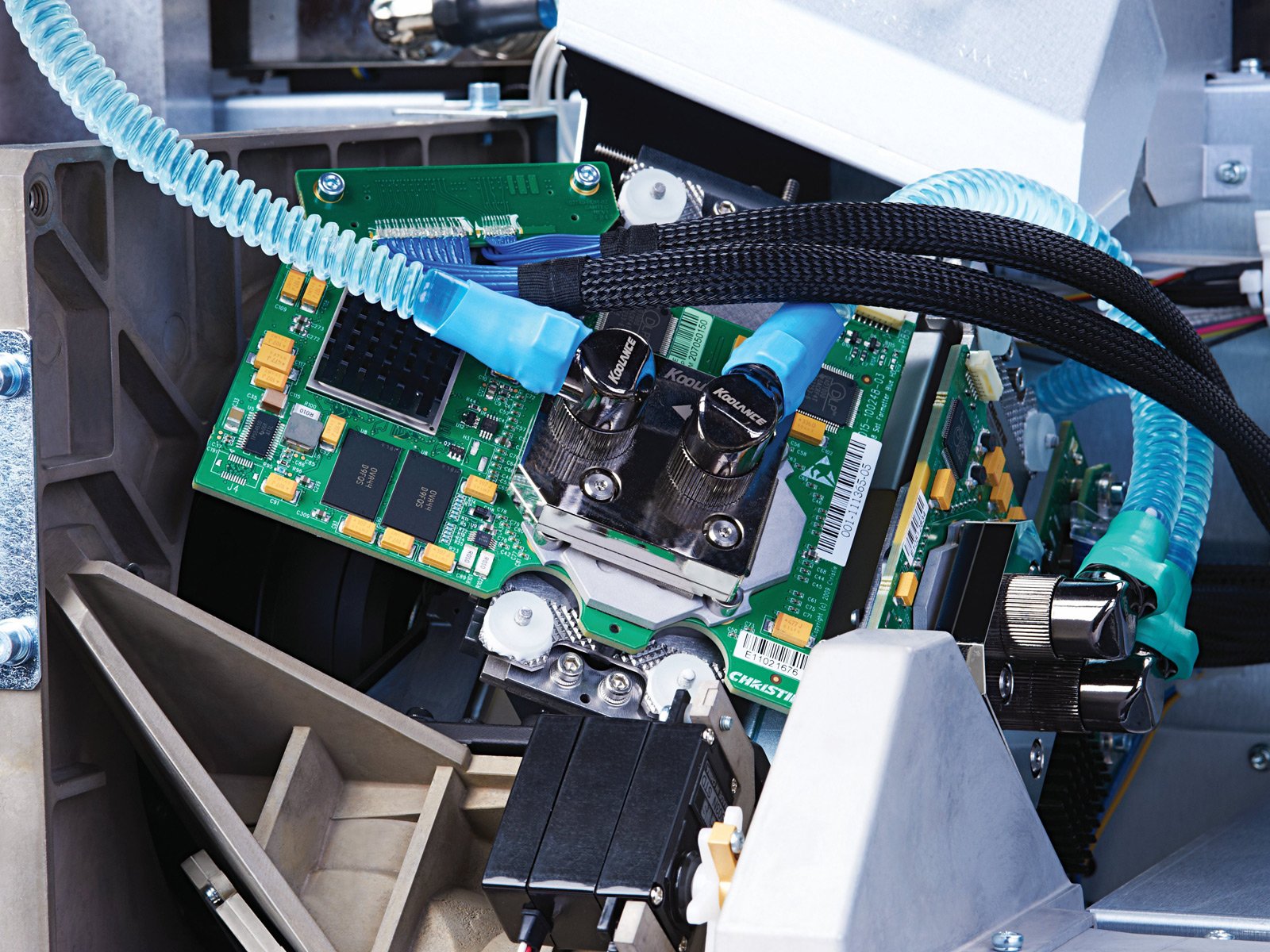

- Liquid cooling allows for operating temperatures up to 104°F (40°C)
- 3D capable model available in the Mirage Series
- 3D upgradable
1 - CT refers to the suite of lenses available for use with Christie’s legacy Xenon platform. Note: ILS capabilities are not available with CT lenses and lens mount.
2 - Legacy input cards are not compatible with Christie J Series models. The input card supported by the J Series are compatible with Christie M Series models.
Specifications
- - Brightness: 22,000 center (20,000 ANSI) lumens
- - Contrast: 1600-2000:1 full field | 650:1 ANSI
- - Uniformity: 90% brightness uniformity
Display
- Type: 3DLP 0.95” DMD
- Native resolution: SXGA+ (1400 x 1050)
Lamp
- Type: 3.0kW Xenon bubble lamp module
- Life: 750 hours typical lamp life
Input
- Standard
- - Analog
- - Dual link DVI
- - SD/HD-SDI
- - Video Decoder
- Optional
- - Analog
- - Dual link DVI
- - SD/HD-SDI
- - Video Decoder
- - Twin HDMI
- Signals
- - HDTV formats VGA through to QXGA (2048 x 1536)
- - Accepts all current HDTV/DTV formats
- - Multi-standard video decoder
- - Horizontal and vertical scaling, all inputs
- Pixel clocl
- - 165 MHz
- Scan rates
- - 15 kHz to 120 kHz Horizontal
- - 23.97 Hz to 150 Hz Vertica

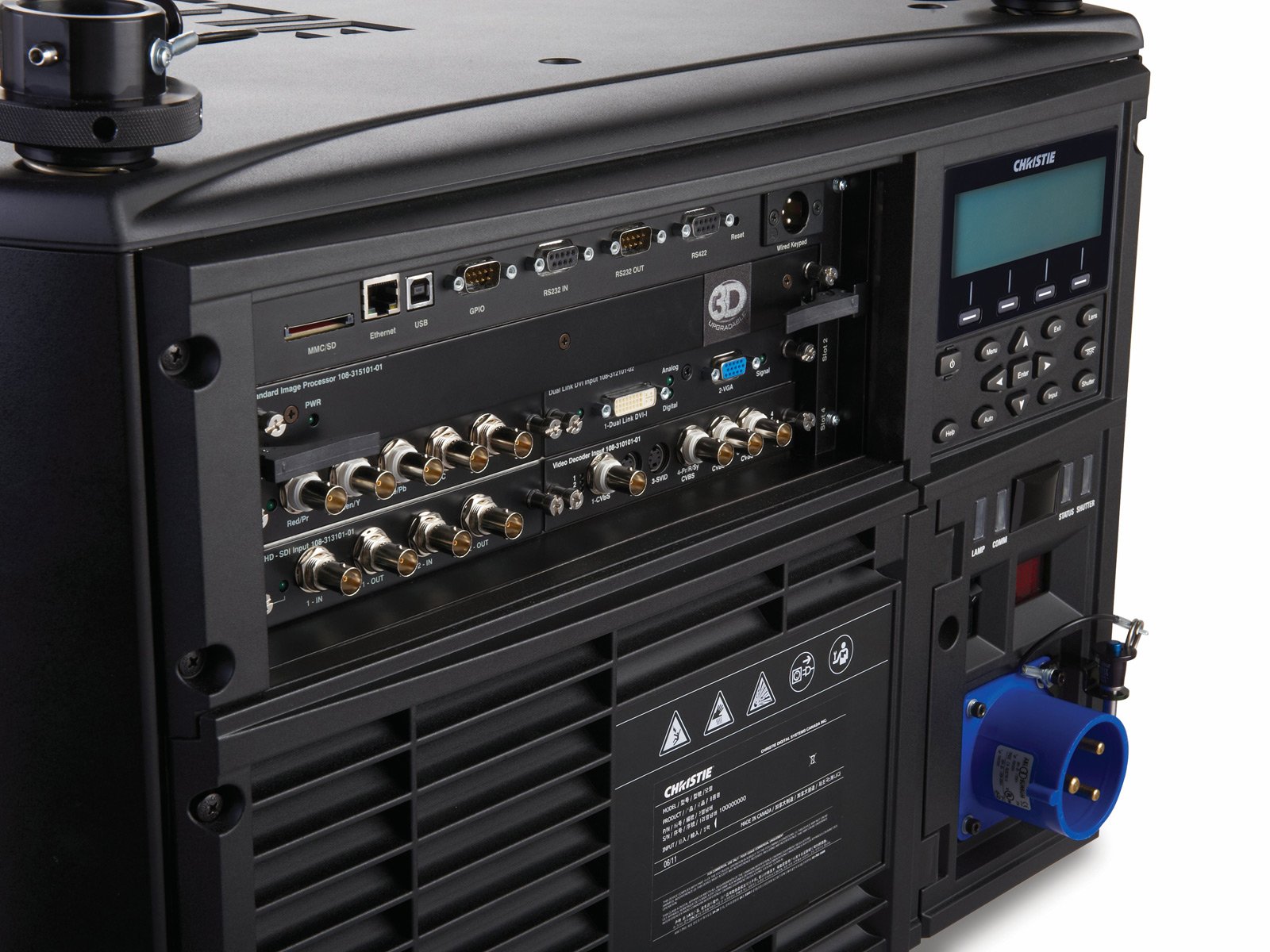

Control and networking
- - RS232 In/Out
- - RS422 In
- - Ethernet (10/100)
- - USB Device
- - GPIO (RS232 9 Pin male connector)
- - Built-in, backlit LCD keypad
- - Remote control (with optional wired XLR connection)
Lens options
- Fixed
- - ILS Lens 0.73:1 SX+ / 0.67:1 HD*
- - ILS Lens 1.2:1 SX+ / 1.1:1 HD
- Zoom
- - ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
- - ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
- - ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
- - ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
- - ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
- - ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD
- Offsets
- - +/- 100% Vertical
- - +/- 50% Horizontal
- - (* +/-23%V +/- 13%H)
- - (** +/-70%V +/- 45%H)
Due to constant research, specifications and features are subject to change without notice.
