View our current lineup of LED video walls.

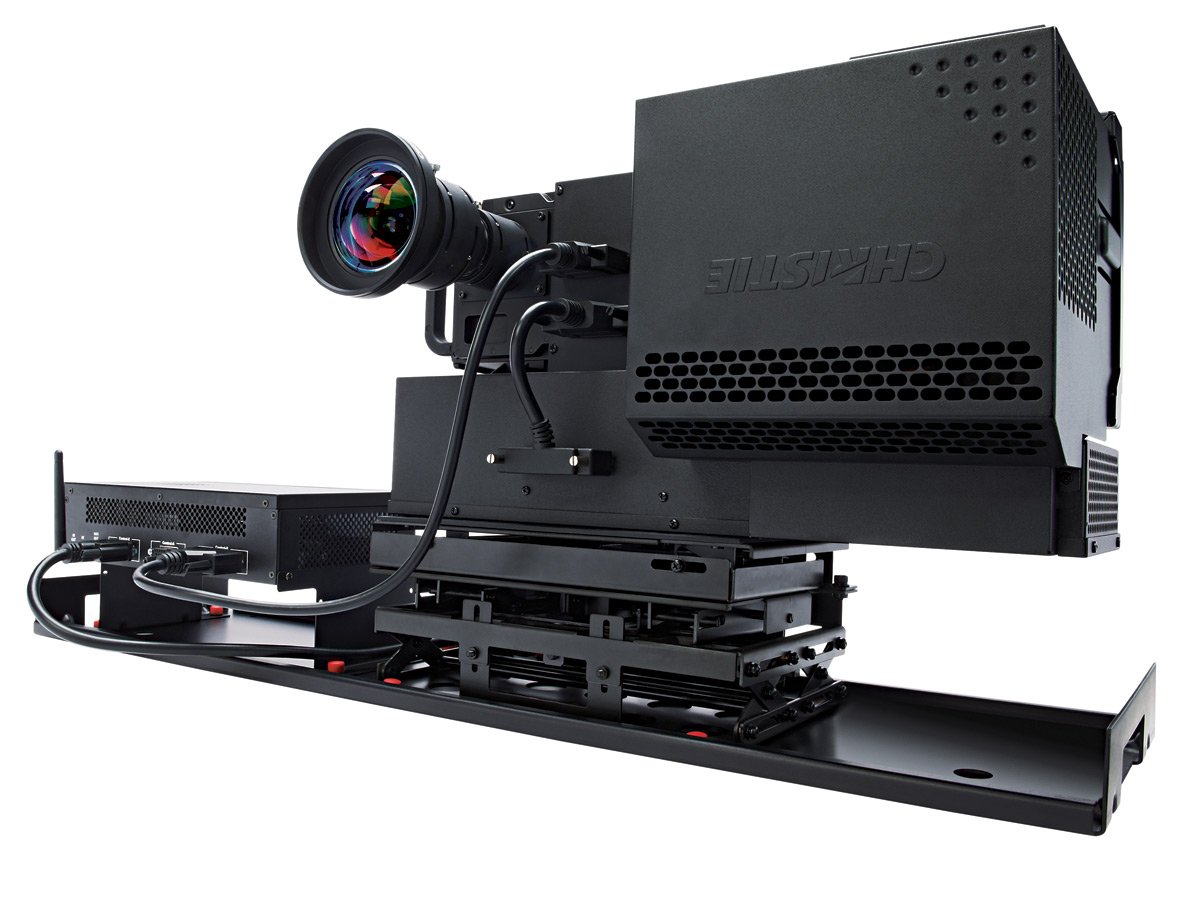

Christie Entero™ HB is an evolution in performance, reliability and confidence for control room video wall displays and rear projection engines.
Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness rear projection engines and display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers high brightness, 24/7 performance, reliability, all with an overall low cost of ownership and operation.
Control – The Christie Entero HB series is the first and only LED control room display to offer wireless control through Wi-Fi capability – make adjustments, control the wall or perform diagnostic monitoring through an iPad or other similar wireless device. It’s that simple.
Flexibility – The Christie Entero HB HD video wall rear projection engines, are part of an expanded series of control room display solutions offering installation flexibility with options in resolution and vertical or horizontal lens orientation to meet specific room or space requirements. Retrofit kits provide even greater flexibility letting you retrofit Christie Entero HB engines into earlier Christie cube offerings.
Maintenance – Designed for zero maintenance, the Christie Entero HB series is solid state, has no consumables and no scheduled maintenance for at least 5 years.
The Christie Entero HB offers unparalleled 24/7 performance and years of worry-free operation. Plus, with simple, intuitive hardware installation, minimal set-up time and effort and modular design for fast and easy servicing if required, the new Christie Entero™ HB control room display cubes exceeds your expectations.
Features
- up to 900 lumens – normal mode / up to 1350 lumens – high brightness mode
- HD (1920 x 1080) resolution
- high performance – high brightness, wide color gamut, superb contrast, excellent brightness and white level uniformity
- Wi-Fi enabled – wireless video wall control through iPad or similar hand-held device
- Christie ArraySync™ third-generation automatic LED video wall color and brightness management
- 24/7 reliability – based on latest DLP® technology
- zero maintenance design – no consumables, no maintenance for at least 5 years
- low cost of ownership/operation
- 16:9 aspect ratio
- integrated 6-axis adjustment system – no electronic image correction required
- reduced disruption because there are no consumable components to replace
- very wide color gamut for superior color reproduction
- ultra high contrast, view-ability and display performance
- designed for long-term use and performance – no need to replace in a few years
- >80,000 hours rated LED life (eco mode)
- modular design for minimal downtime if a repair is required
- dust free sealed optics

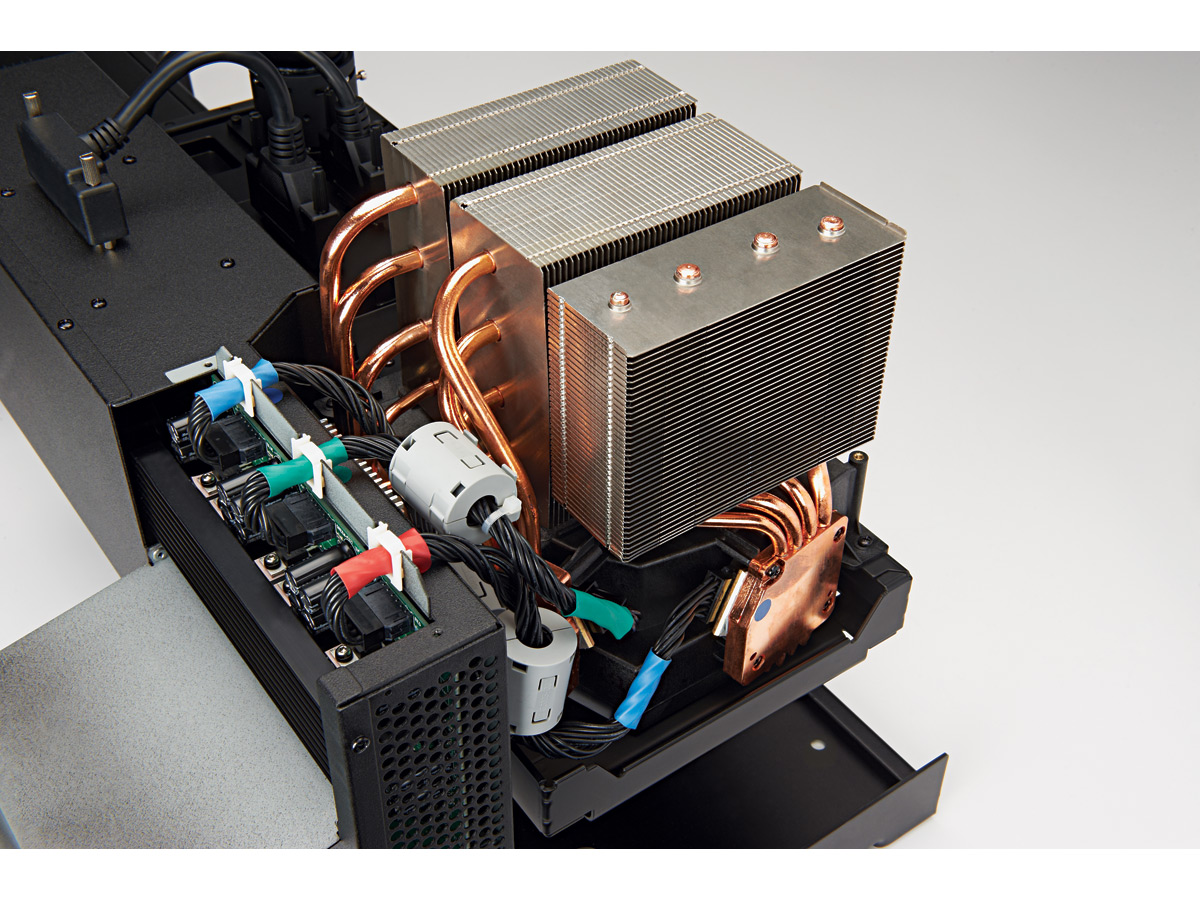

- permanently sealed liquid cooling system (no pumps or hazardous liquids)
Specifications
Light engine
- RPMHD-LED02 (HD)
Application
- New, custom rear projection displays
- Retrofit of existing cube displays
- Retrofit of older customer display walls
Imaging technologies
- Imaging
- 1DLP, DarkChip
- Texas Instruments
- Native resolutions: HD (1920 x 1080) | 16:9 aspect ratio

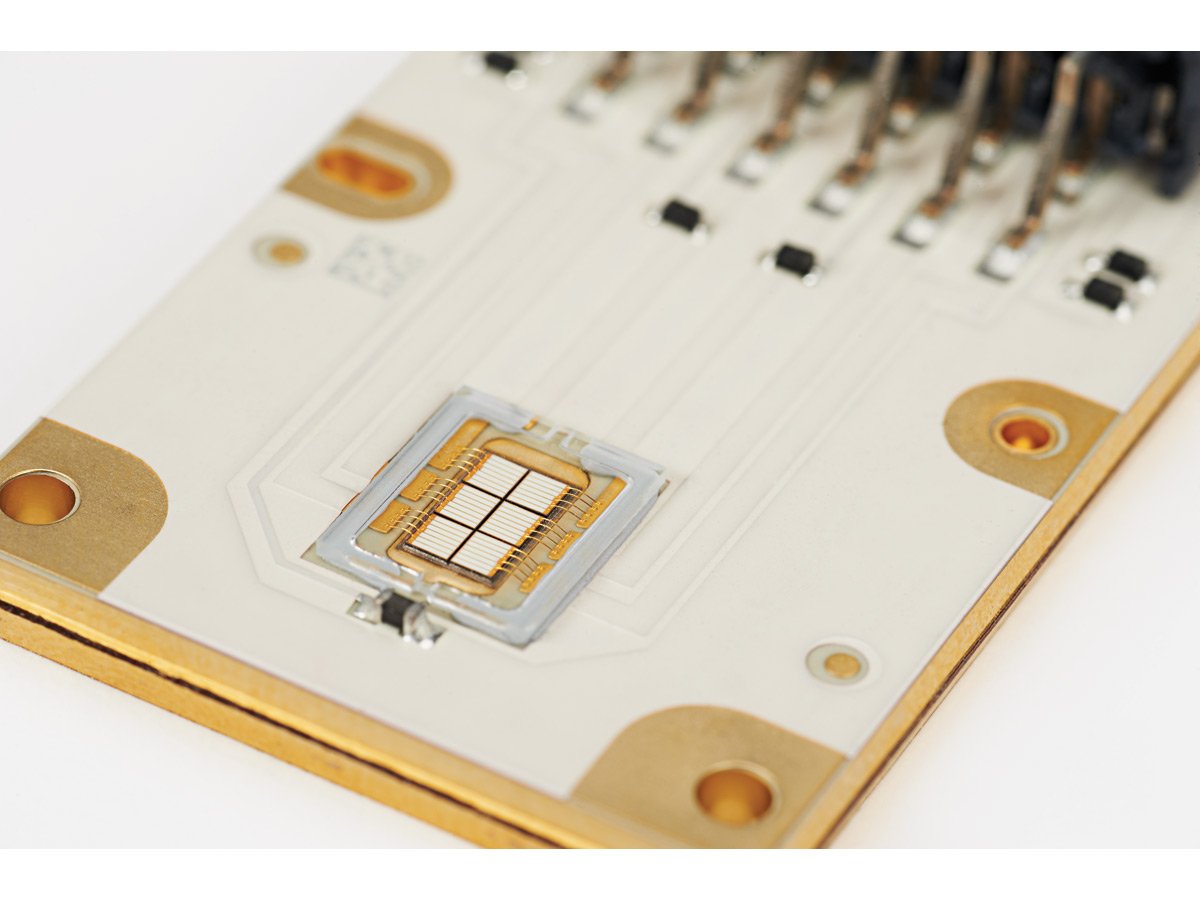

- Illumination: LED (red, green, blue) | OSRAM | Redundant LED architecture
Native resolutions
- HD (1920 x 1080)
- 16:9 aspect ratio
Brightness ANSI
- Up to 1350 lumens in high brightness mode
- 900 lumens in normal mode
- 700 lumens in eco mode
Operating modes
- Normal, eco and high brightness
Downloads
Christie Entero HB SXGA+, HD and WUXGA Light Engines Brochure
Aug 11, 2014 | PDF: 576 KB
This PDF is the brochure that outlines key features, specifications and uses of the Christie products listed below. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.
Entero HB HD datasheet
Jan 16, 2014 | PDF: 746 KB
This is the PDF product datasheet that outlines key features, specifications and uses for the Christie Entero HB HD video wall cubes. Please refer to the information presented on the Christie website or speak to your Christie representative for the confirmation of installation-critical specifications and features.
