Convert and output almost any source format

The Christie Universal Routing Switcher (URS) is an all-in-one matrix switcher that accepts multiple sources in any format (analog composite to digital 4K) and seamlessly routes any of these sources to any of 8 user-configurable outputs, each of which can be independently configured for any analog or digital output format.

The Christie URS handles any input-output combination of computer and video formats with ease, including analog/digital, interlaced/progressive, and high/low resolution. With built-in integrated source monitoring and sophisticated keying, the URS accepts sources from analog composite to digital 4K and seamlessly routes them to any destination display. You won’t find any matrix switcher on the market today that can do what the URS does.

The URS performs all the processing to match the source to the output, including scaling, aspect ratio, color-space, and frame rate conversion repeats. Normally, these functions require additional equipment and complex, restrictive control systems; however, the URS simplifies the entire process, saving you time, money and resources.

Key features

• Universal input/output capabilities – mix and match multiple formats with one piece of equipment

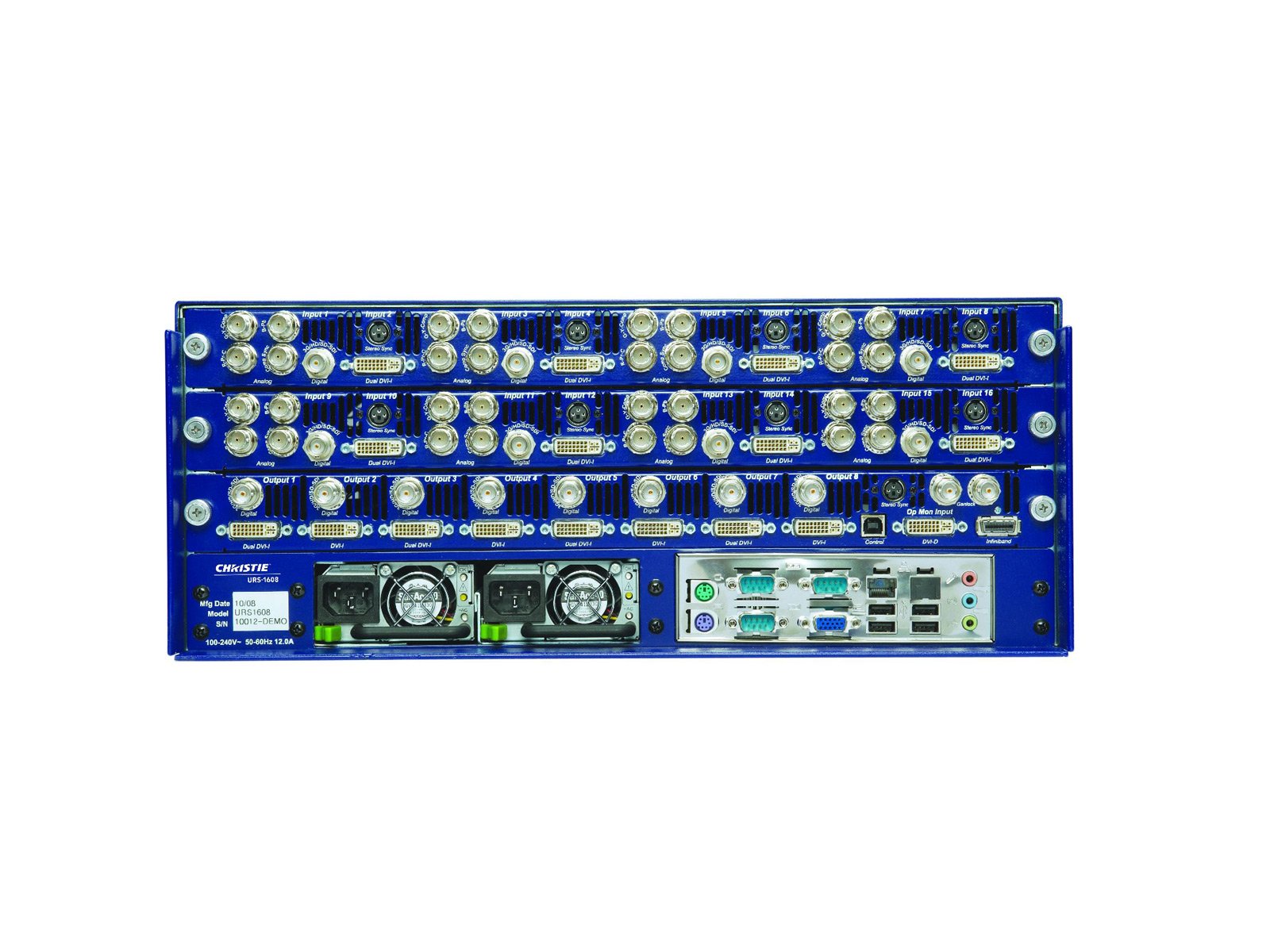

• Input capability – either 8 or 16 inputs (depending on model) that can be a mix of analog BNC and DVI signals
• Output capability – 8 outputs that natively support any display from component analog 480i to digital 4K
• Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and frame rate – seamlessly route any source to any user-configurable output
• Define properties for each output independent of each signal
• Integrated source monitoring – real-time and full frame view of all sources connected to the URS (either 16 or 8 inputs) on a single output, tiled into a 4 x 4 array
• Overlay (key) capability – up to four sources can be layered onto each output for a multitude of needs, including background/foreground transitions, PIP windows, bugs, lower-third titling, tickers, messaging, sign windows and more

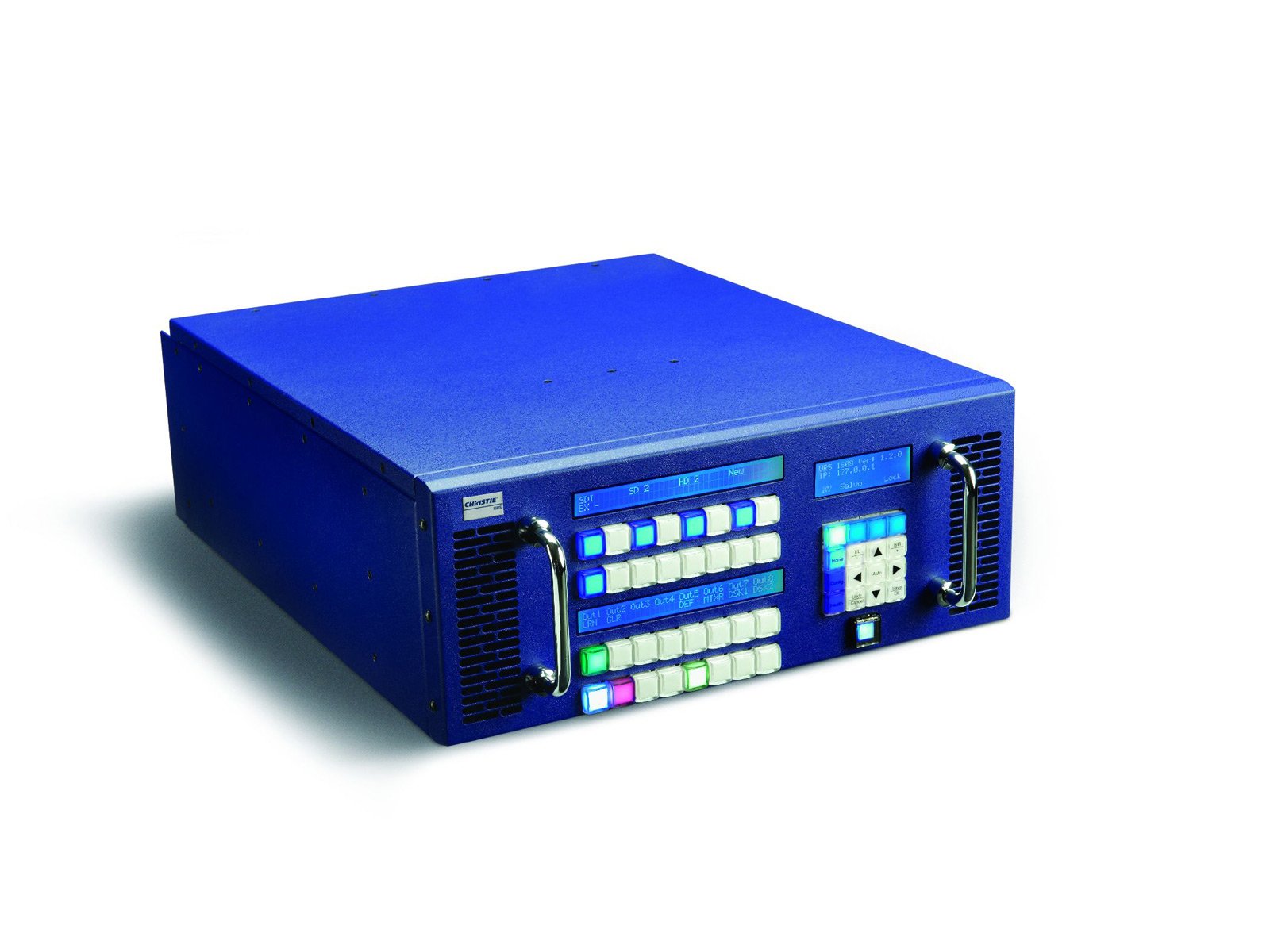

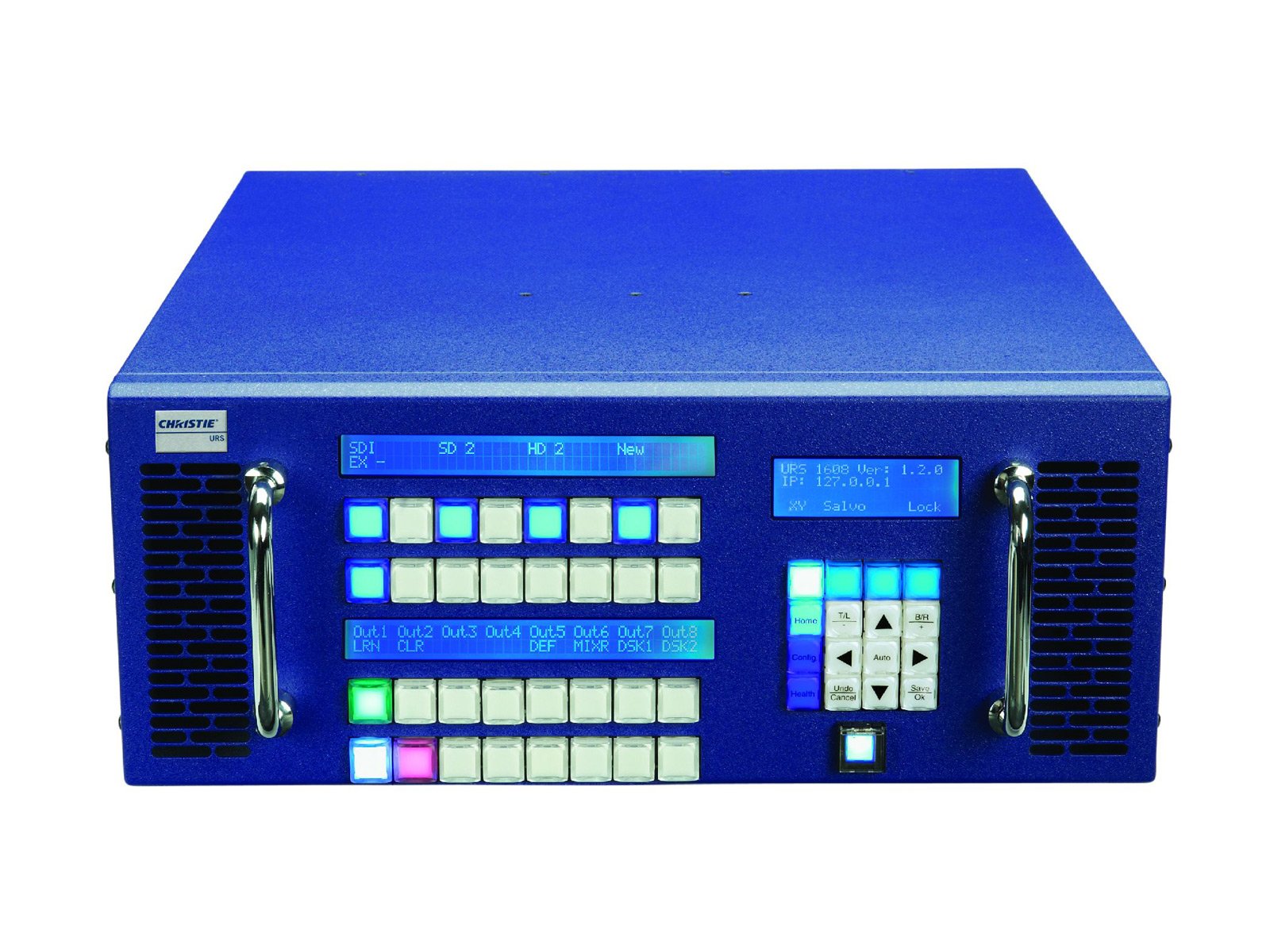

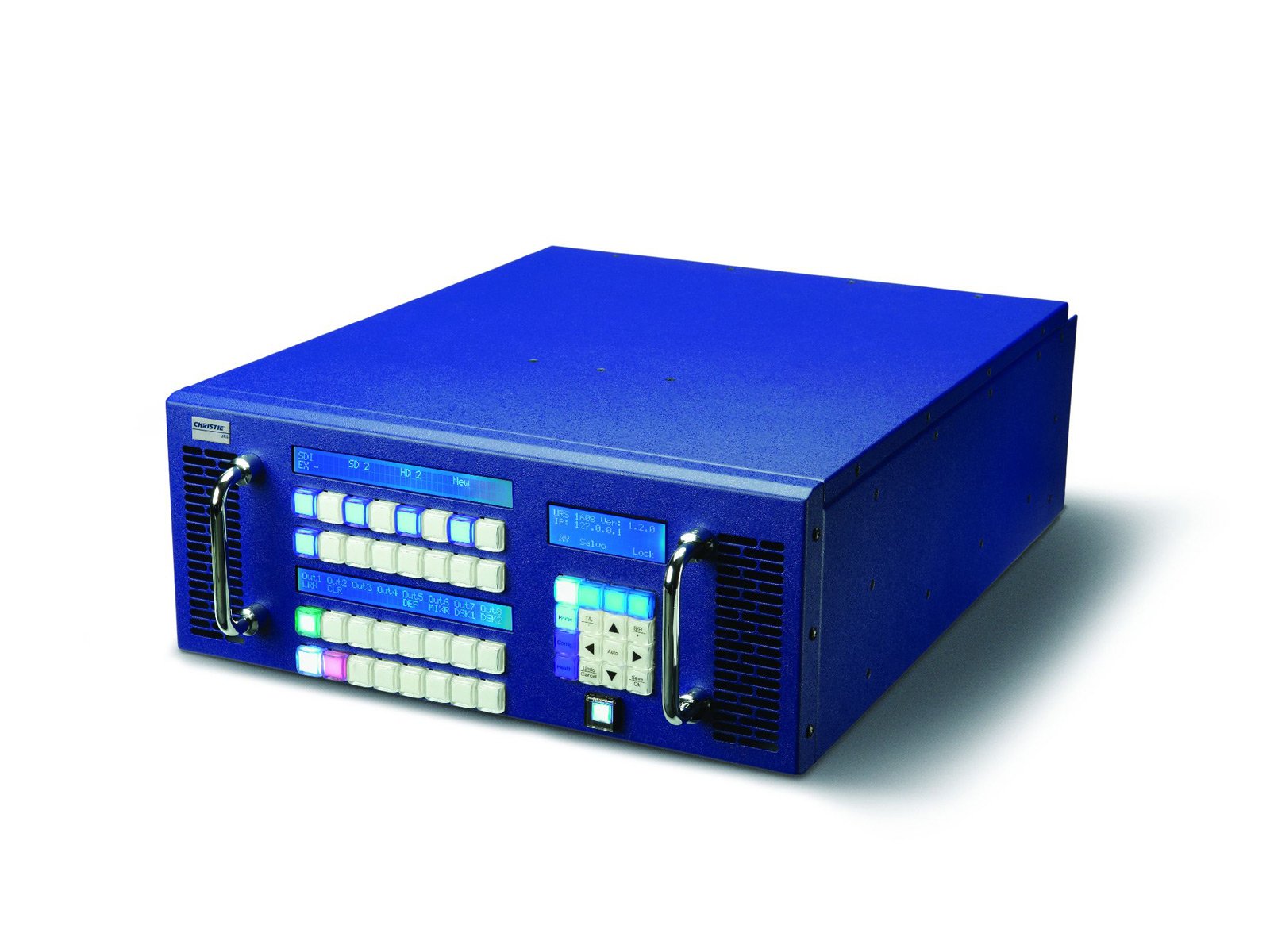

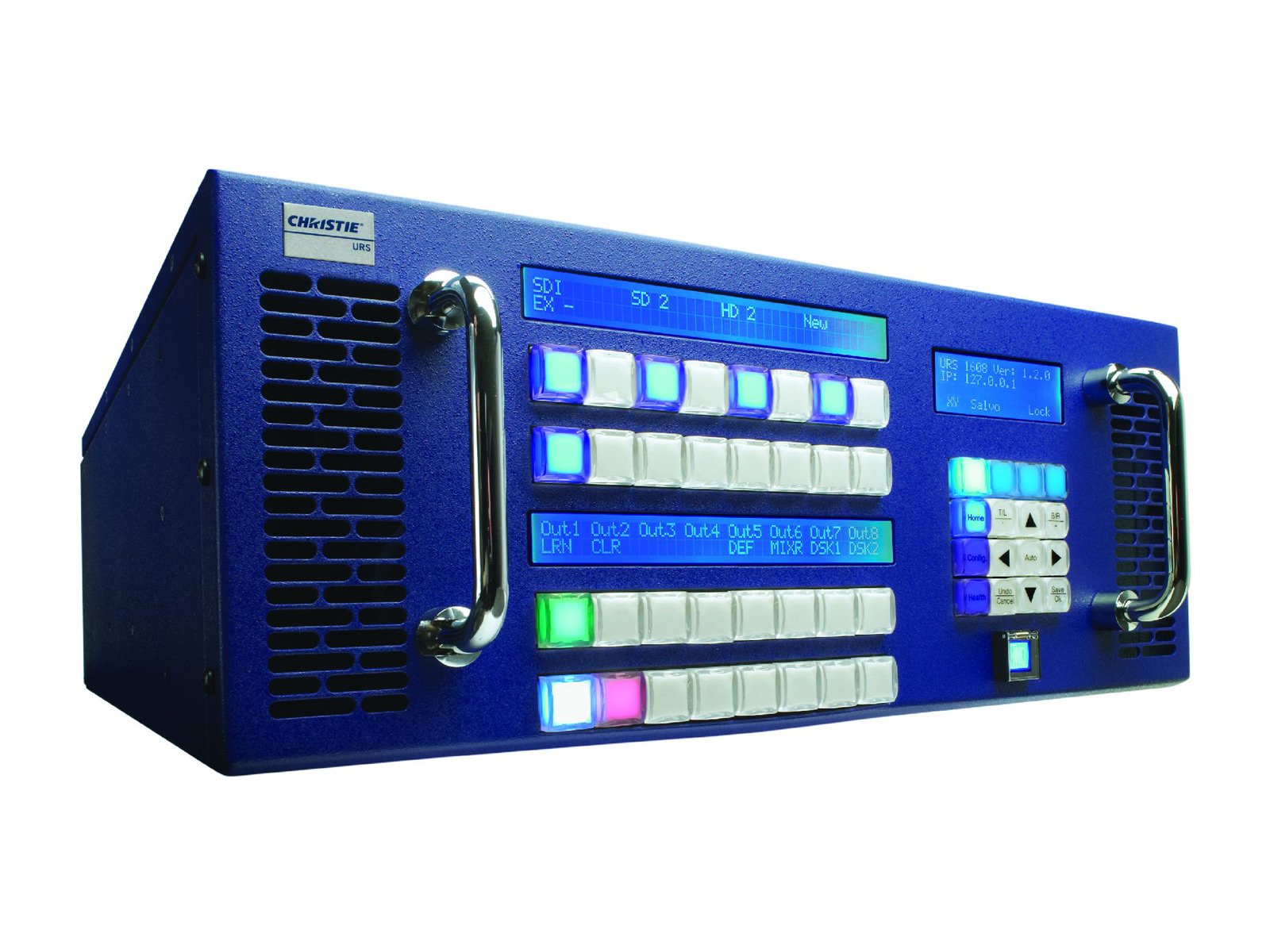

• Single point of control for all processing and signal distribution functions from front panel, PC via Ethernet, or external control system
• Small form factor - (LxWxH): 21.9 x 17.3 x 7.0" (556 x 439 x 178 mm). Additionally, only one piece of equipment is required so the overall space required on a rack is reduced
• Each output individually supports rotation; enabling the creation of vertically oriented displays
• Easy-to-use web-based interface enables monitoring and control of the URS from any computer on the network
• Built-in image capture/Still Store functionality
• Auto set-up feature
• Intuitive graphical user interface (GUI)
• Simple cohesive control of all functions
• Redundant hot swappable power supplies
• Optional URS-IBSS High Speed InfiniBand Still Store server
• Optional stereoscopic support
• The URS-0808 is expandable - can be modified to support 16 inputs

There are two models in the Christie URS series:

• Christie URS-0808 - 8 inputs, 8outputs
• Christie URS-1608 - 16 inputs, 8 outputs
