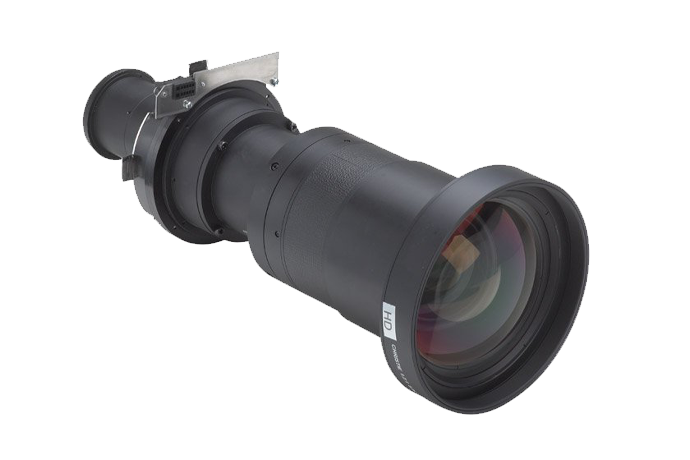

This short focal length lens is meant for screens that are between 37" and 64" in width (95 - 162 centimeters).
When used with Christie's 3-chip DLP® 1080 HD products, this lens has a fixed 1.1:1 throw ratio. If used with any Christie 3-chip DLP SXGA+ products, the lens will provide a fixed 1.2:1 throw ratio.
Please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.
Specifications
Throw ratio
- 1:2:1
Vertical offset
- +119/-119%
Horizontal offset
- +42/-42%
Screen sizes
- 37.3" - 63.7" (94.7 - 162 cm)
Lens length
- 16.6" (42.2cm)
SXGA+ specifications
- Throw ratio
- - 1:3:1
- Vertical offset
- - +100/-100%
- Horizontal offset
- - +50/-50%
- Screen sizes
- - 37.3" - 63.7" (94.7 - 162 cm)
- Lens length
- - 16.6" (42.2cm)
Due to constant research, specifications and features are subject to change without notice.
