Christie® D Series expands our existing 3LCD projection family by broadening our range of resolution and brightness options, as well as offering connectivity, integration with third-party systems and a variety of lens options. With an attractively designed exterior and high-performance features, Christie D Series single-lamp projectors give you choice to meet your venue’s needs.
Whether you’re outfitting a meeting room, event space, classroom or auditorium, the Christie LX801i-D delivers:
- Affordability
- XGA resolution
- 8,000 lumens – brightest single-lamp in XGA
- Simple integration with third-party control systems
- Exceptional image quality
- Reliability and versatility
- Ease of use and maintenance
- Industry-leading warranties and service
- DICOM simulation mode for training purposes
Specifications
- - Brightness: 8,000 ANSI lumens
- - Contrast: 10,000:1 full on/off
- - Colors: 1.074 billion
Display technology and resolution
- - 3 x inorganic LCD 0.79" Polysilicon TFT active matrix
- - 1024 x 768
- - 4:3

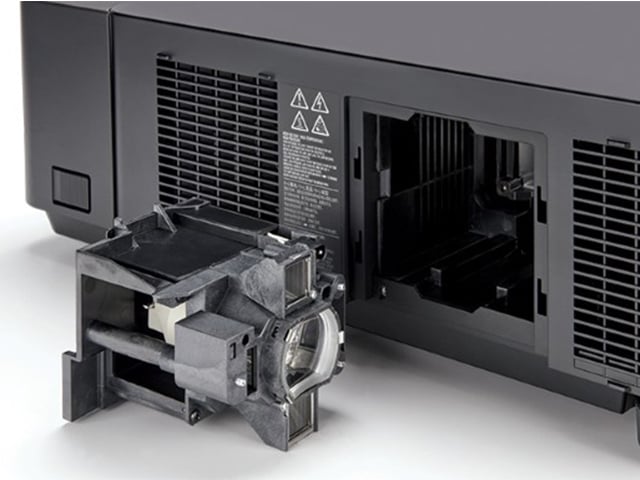

Lamp
- - 430W UHP lamp
- - Standard mode: 2,000 hours
- - Eco mode: 4,000 hours

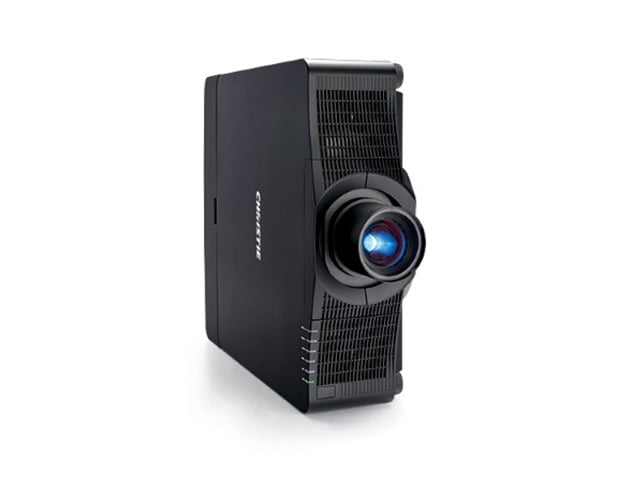

- - Portrait mode: 1,000 hours

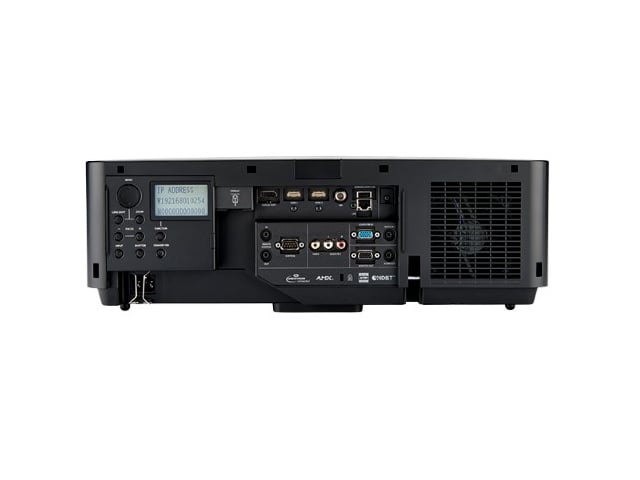

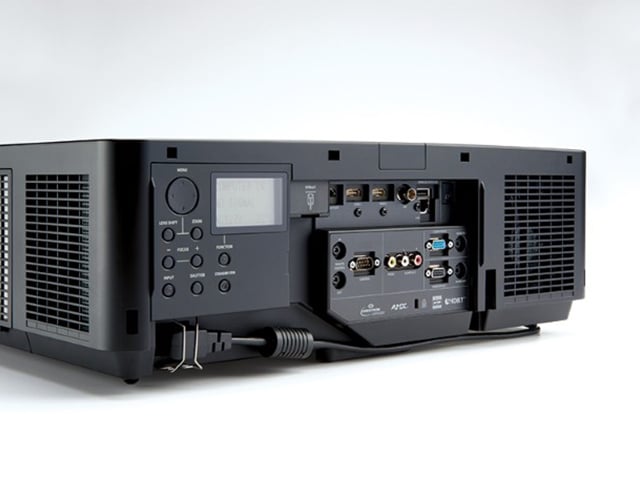

Inputs
- - HDMI connector x 2
- - DisplayPort
- - HDbaseT x 1
- - D-sub 15 pin (RGB & Component) x 1
- Composite video x1
- USB type A connector x 1 (for wireless USB dongle)
Signals
- HDTV formats VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
- 27 ~ 150 MHz
Due to constant research, specifications and features are subject to change without notice.
Downloads
Christie QuickConnect for Android
Feb 12, 2014 | HTML: 4 KB
The Christie QuickConnect App enables end users and installers to project photos, documents and websites to a compatible Christie projector over Wi-Fi from their Android enabled mobile digital devices. It also allows users to control their projector. This app is specifically designed to control Christie LW401, LWU421, LX501, LW551i, LWU501i, LX601i, DXG1051-Q, DWX951-Q and DWU951-Q projectors.The app is supported on Android OS version 2.3 & 4.0-4.3 enabled mobile digital devices.The Christie QuickConnect app and the projector must be on the same local Wi-Fi network. Projector discovery Content delivery lets users display content from their Android devices to the projector: Documents, Images, Webpages, Projector control, Control projector - standby/on, audio mute, blank and freeze, Input source selection - choose from two computer ports, two USB ports, HDMI, video, s-video and LAN. Advanced setting: Display modes - full image mode or multi-devices mode (up to 4 Android-enabled devices at the same time). Presenter mode enables the user to invite others to present or prevent another device from connecting to the projector.
Christie QuickConnect for iOS
Jan 09, 2014 | HTML: 4 KB
The Christie QuickConnect App enables end users and installers to project photos, documents and websites to a compatible Christie projector over Wi-Fi from their Android enabled mobile digital devices. It also allows users to control their projector. This app is specifically designed to control Christie LW401, LWU421, LX501, LW551i, LWU501i, LX601i, DXG1051-Q, DWX951-Q and DWU951-Q projectors.The app is supported on Android OS version 2.3 & 4.0-4.3 enabled mobile digital devices.The Christie QuickConnect app and the projector must be on the same local Wi-Fi network. Projector discovery Content delivery lets users display content from their Android devices to the projector: Documents, Images, Webpages, Projector control, Control projector - standby/on, audio mute, blank and freeze, Input source selection - choose from two computer ports, two USB ports, HDMI, video, s-video and LAN. Advanced setting: Display modes - full image mode or multi-devices mode (up to 4 Android-enabled devices at the same time). Presenter mode enables the user to invite others to present or prevent another device from connecting to the projector.
