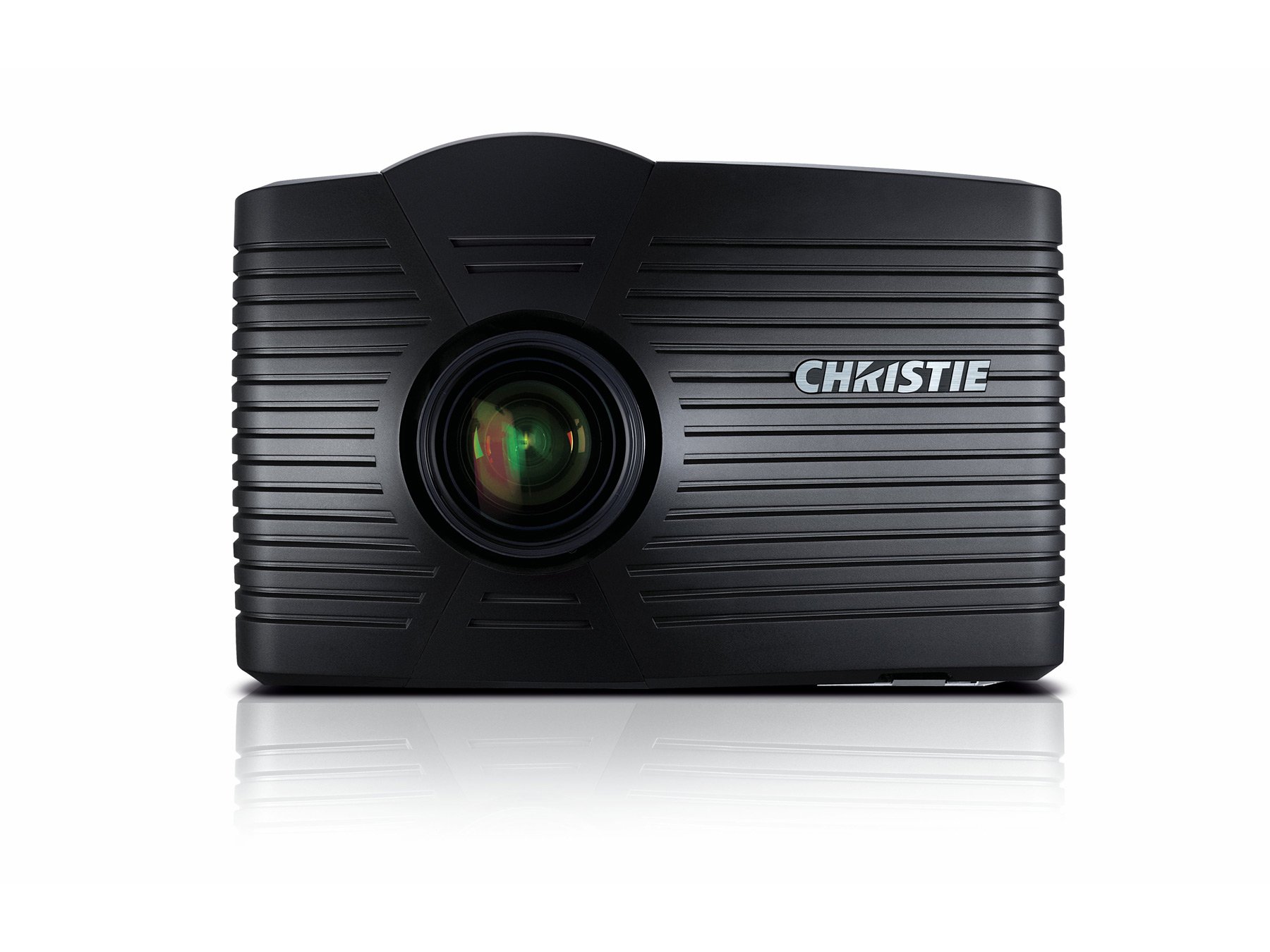

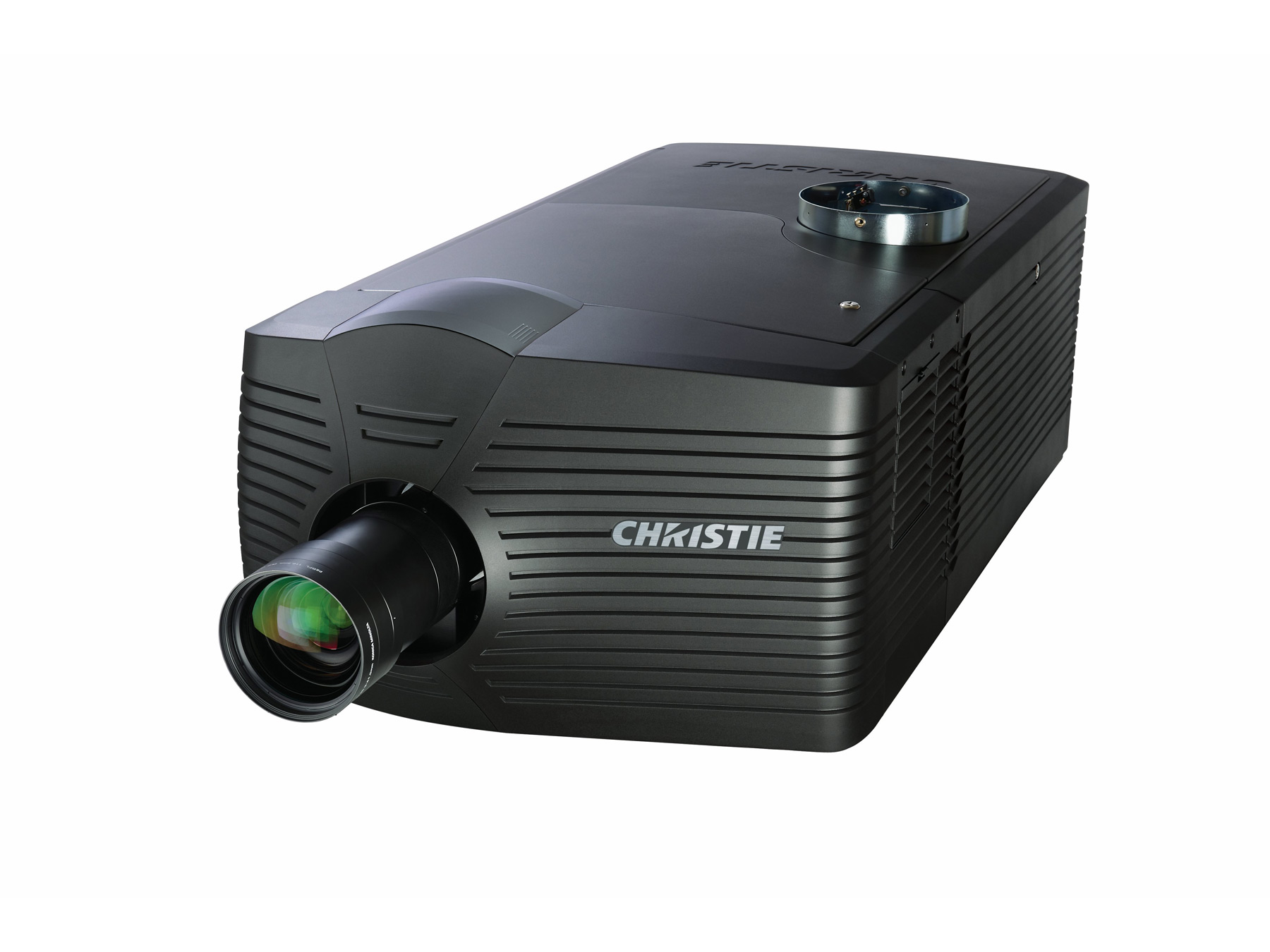

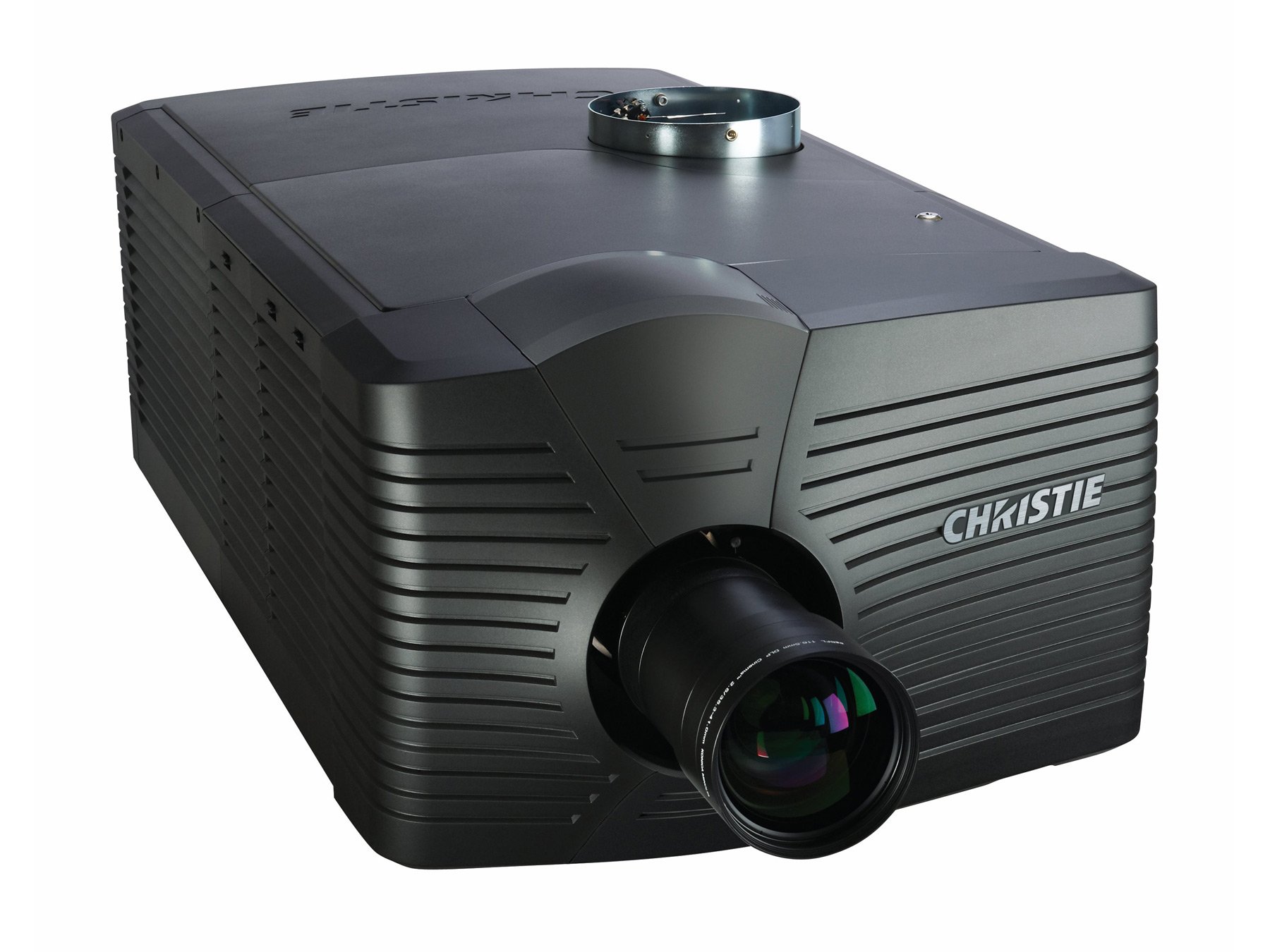

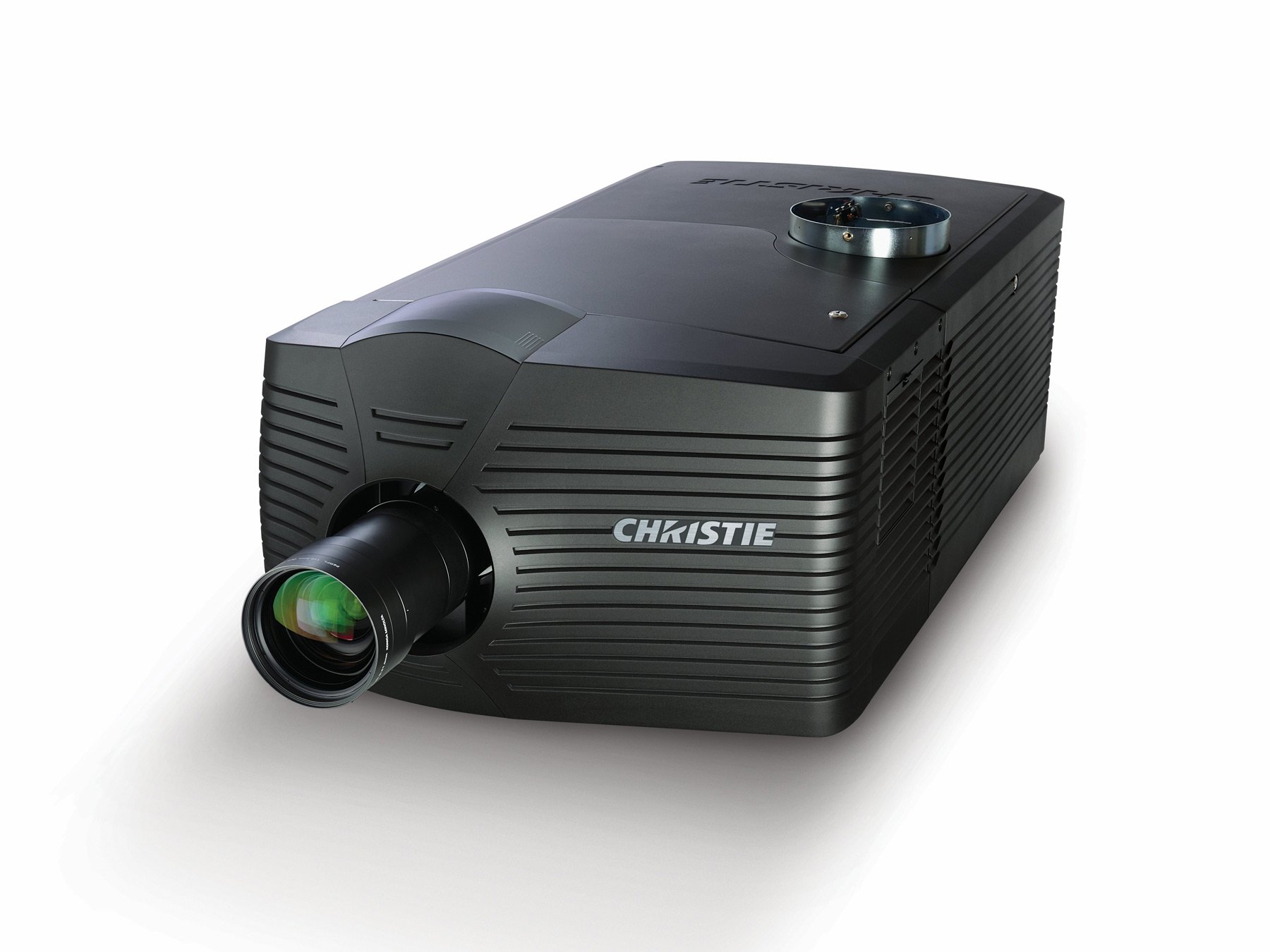

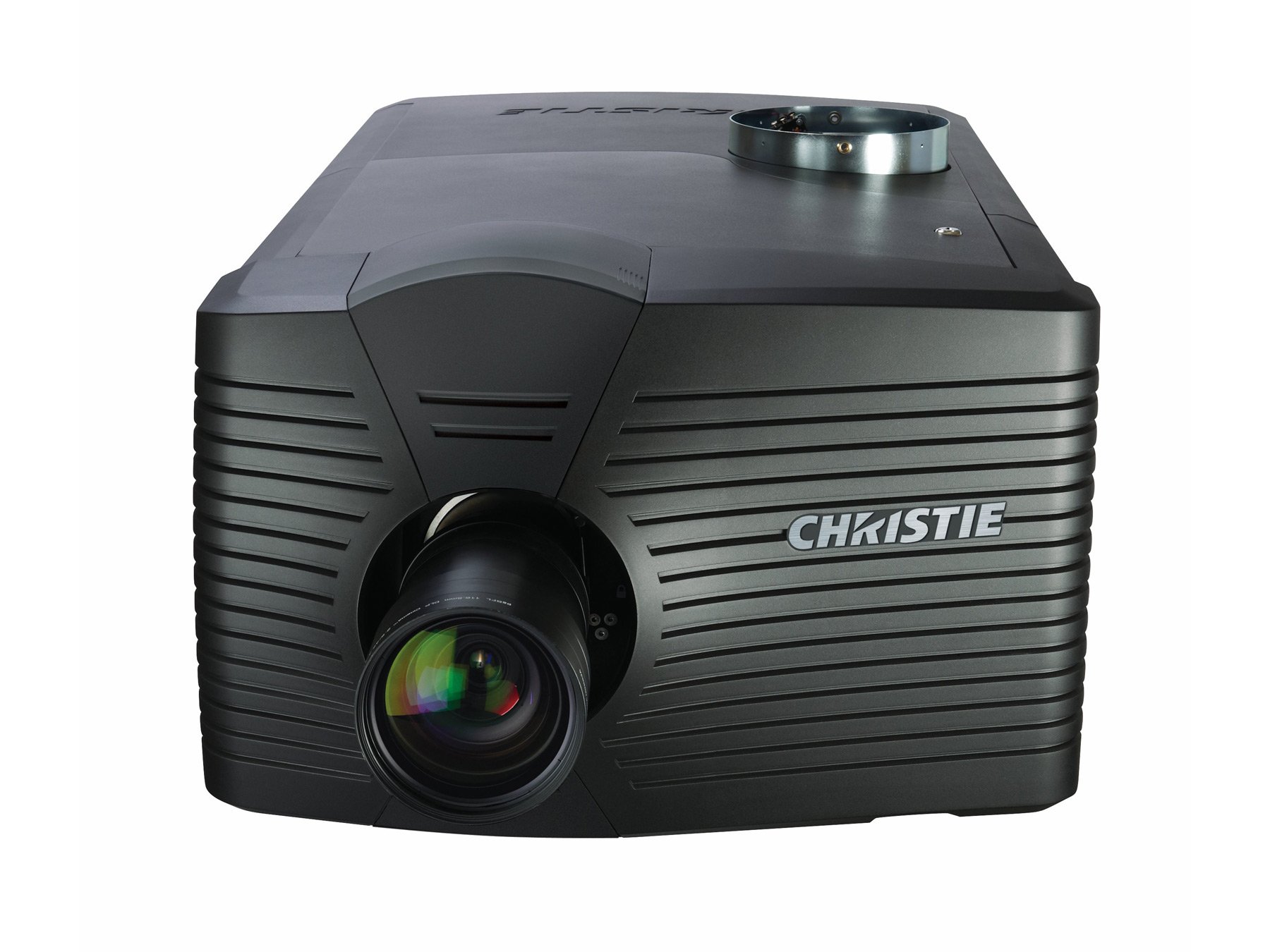

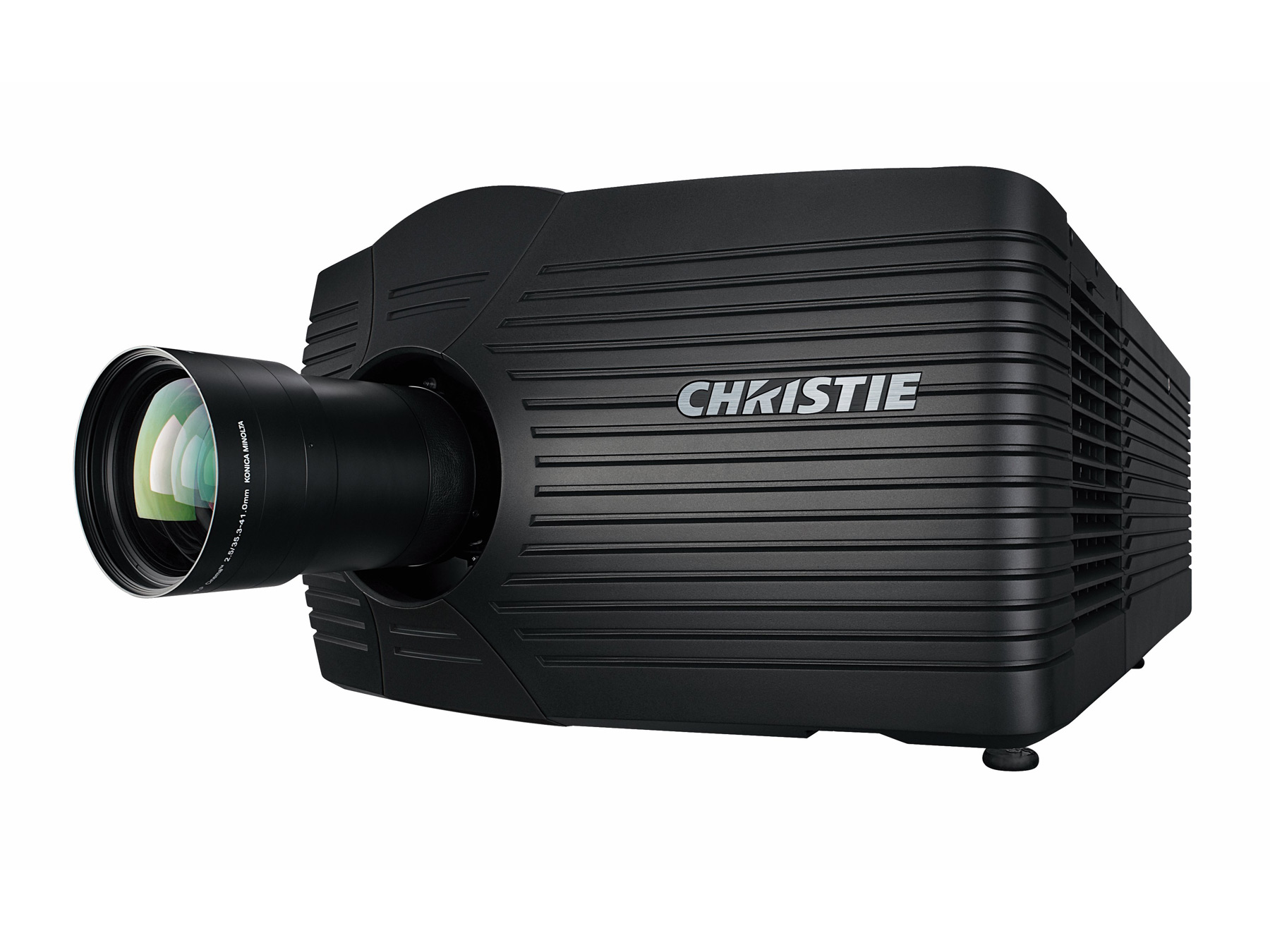

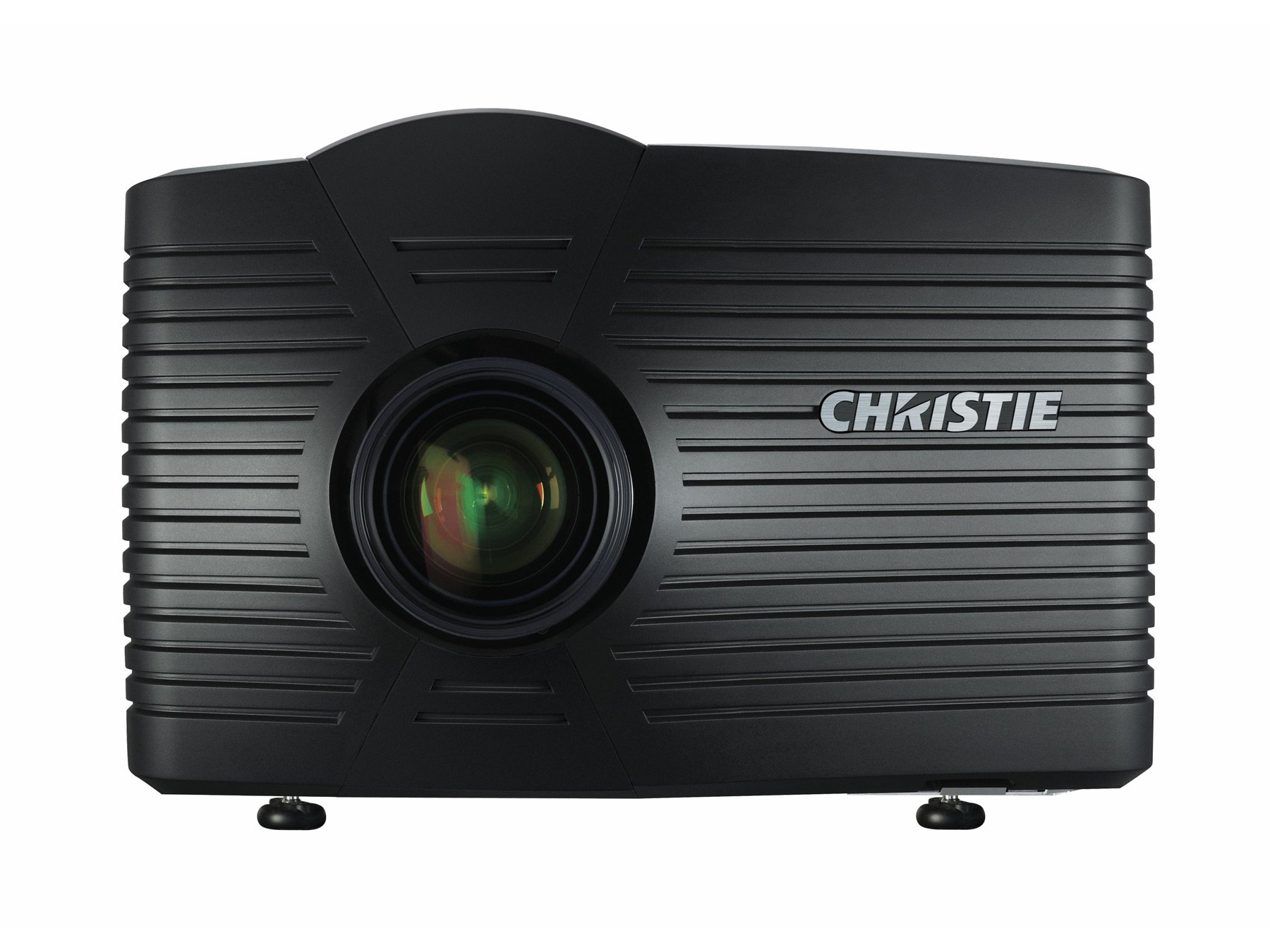

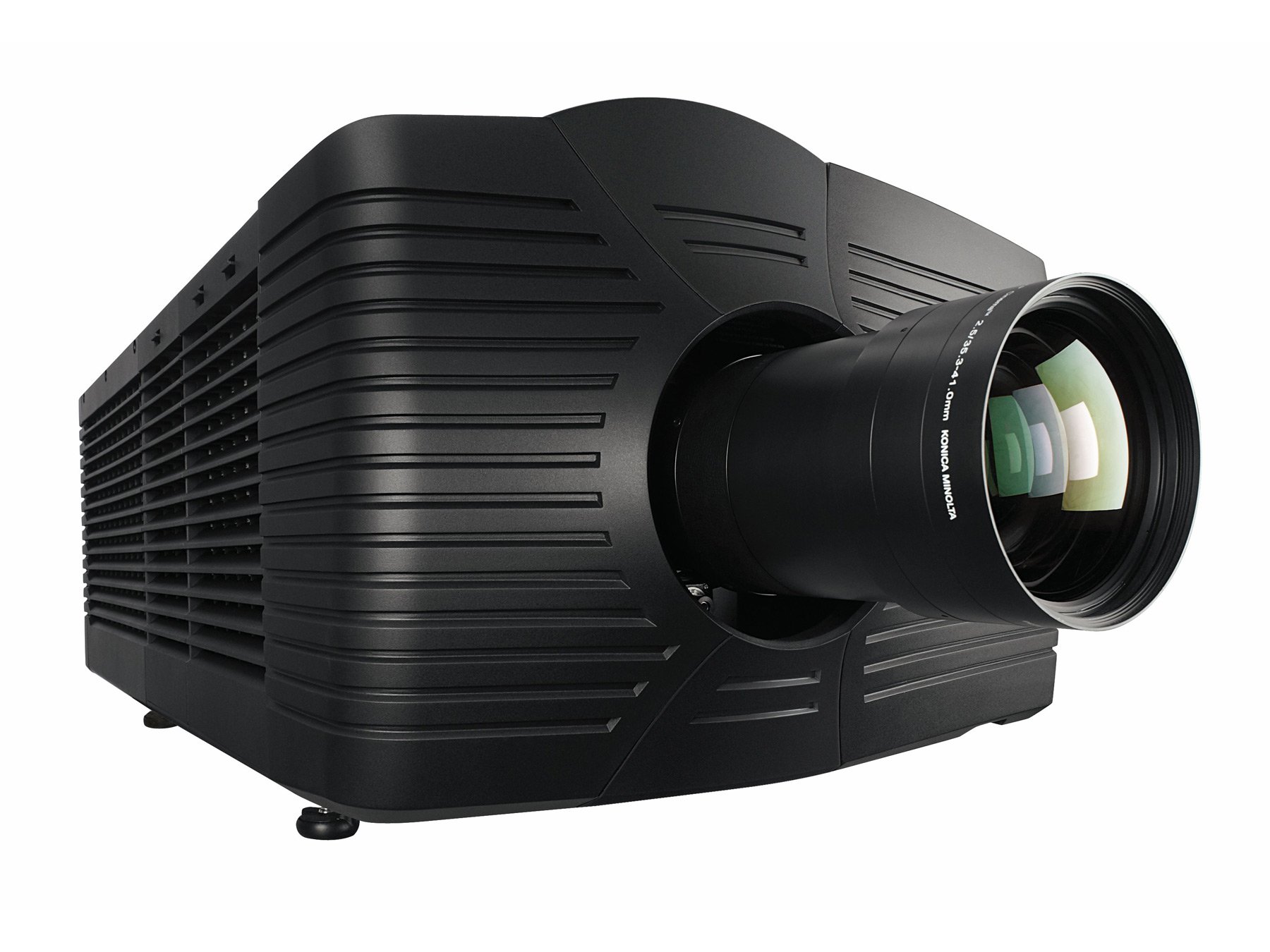

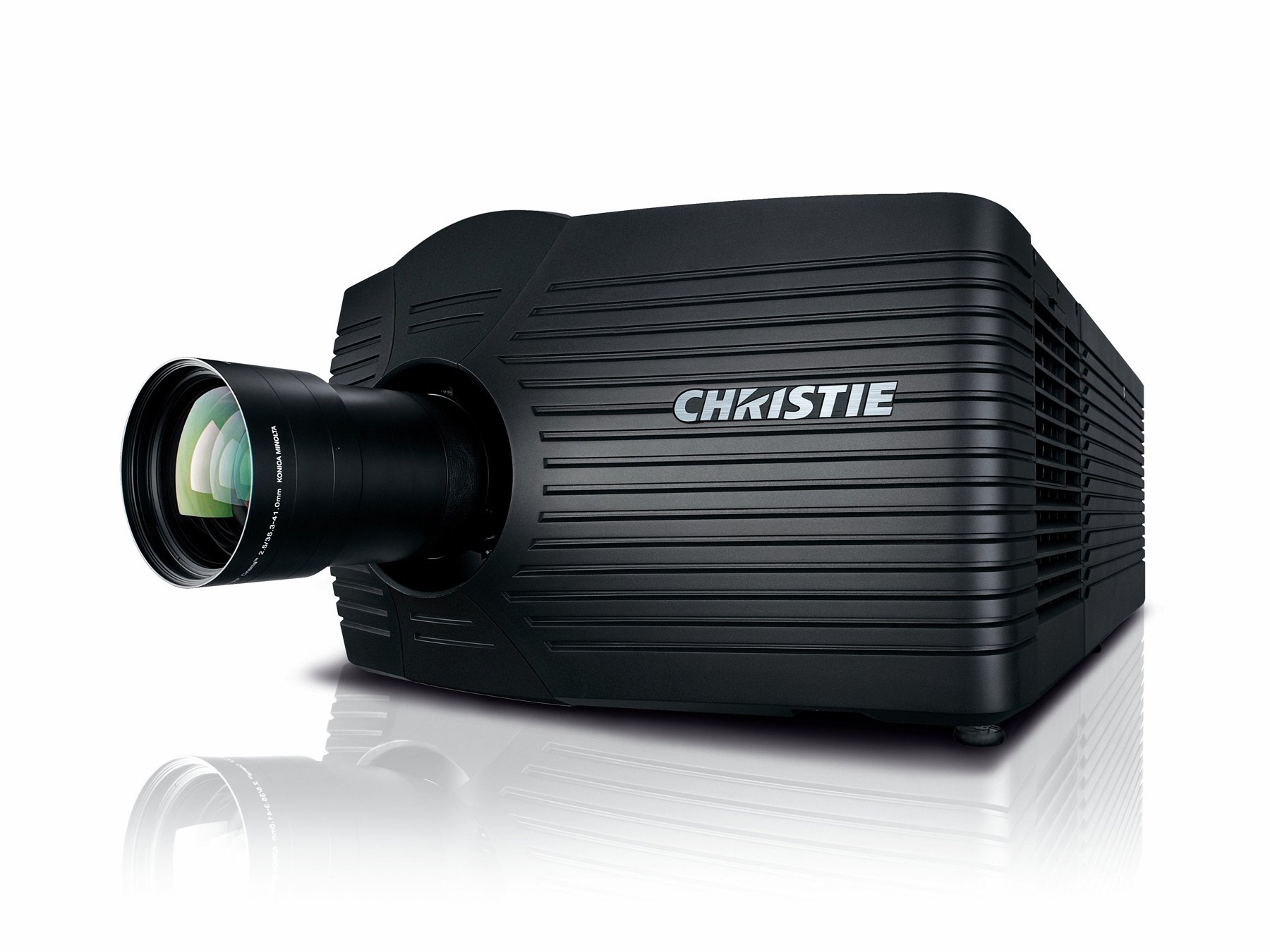

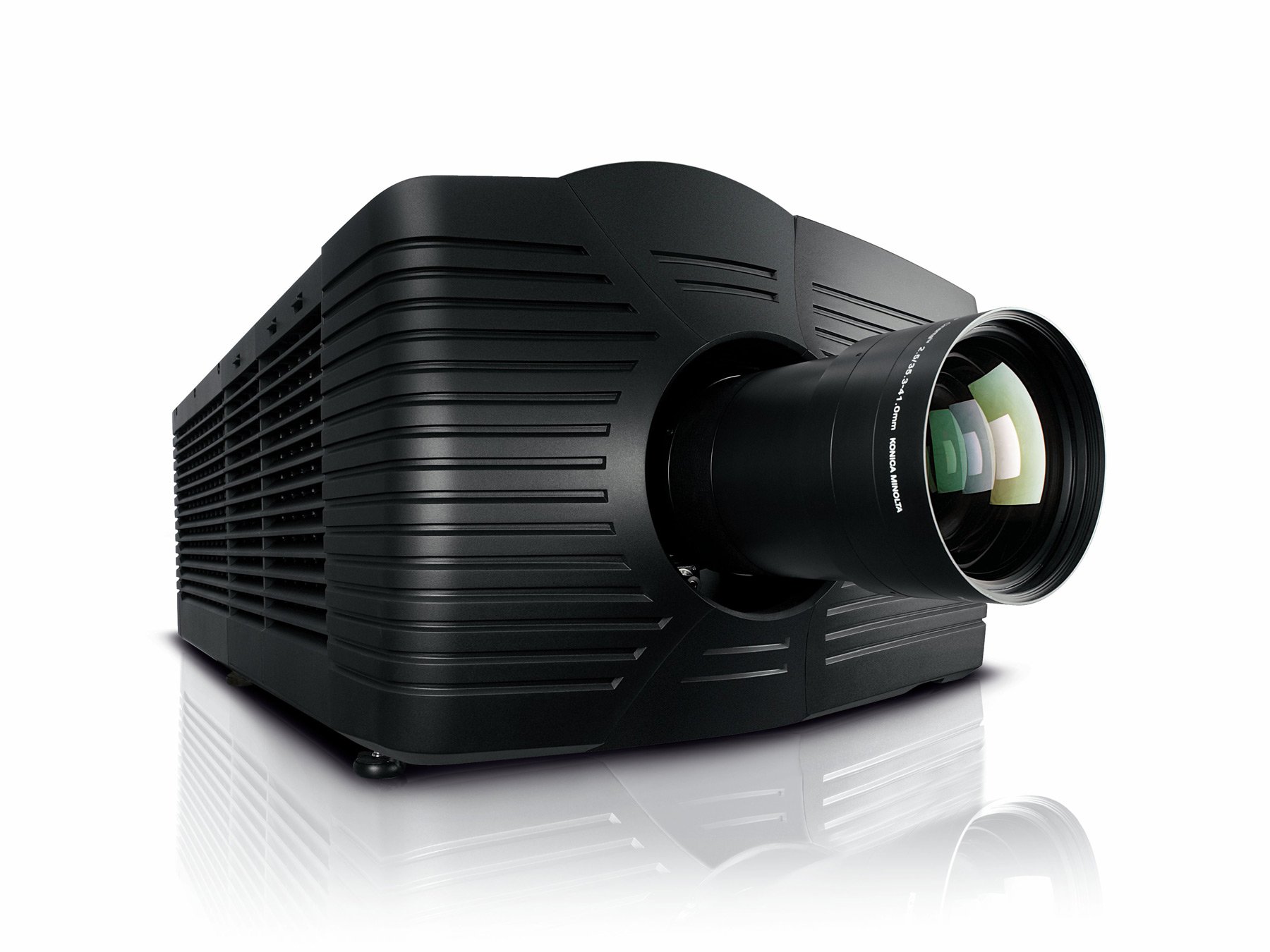

For a quantum leap in image processing, look no further than the Christie® Mirage 4K. Delivering the highest DLP® resolution on the market today, the Mirage 4K is based on Christie’s unique TruLife™ electronics, giving you unprecedented image fidelity, life-like vibrant colors and up to 35,000 lumens for the brightest 3D immersive experience. Additionally, you have the added value of Xenon®-based illumination, providing the most natural color accuracy, uniformity and stability over time.
Christie TruLife supports a video-processing pipeline of up to 1.2 Gigapixels per second, which is 10 times faster than full high-definition bandwidth. This provides flexibility in supporting various 3D interconnectivity formats, including: single sequential 4K 120Hz input, dual interleaved 4K 60Hz signals and 4K 60Hz sequential frame-doubled, with all three formats resulting in 120Hz 4K output.
Based on Christie’s superior design, engineering and manufacturing, the Mirage 4K product line provides 24/7 reliability, ease of service and consistent performance for years of operation.
At Christie, we help our customers create and share the world’s best visual experiences.
Features
- 4K (4096 x 2160) resolution
- World’s first and only DLP® 4K projector at 120Hz performance
- Flexibility in supporting various 3D interconnectivity formats
- Single sequential 4K 120Hz
- Dual interleaved 4K 60Hz
- 4K 60Hz sequential frame-doubled
- All three modes resulting in 120Hz 4K output
- Additionally the Mirage 4K Features true 2K scaling to 4K with these formats:
- Single sequential 4K 120Hz
- Dual interleaved 4K 60Hz
- 4K 60Hz sequential frame-doubled
- Up to 35,000 lumens brightness
- 24/7 use capability
- Christie Twist™ warping, blending and scaling
Specifications
- 10,000 center [9000 ANSI] 2.0kW lamp
- 18,000 center [16,000 ANSI] 3.0kW lamp
- 25,000 center [22,500 ANSI] 3.0kW SD lamp
- 29,000 center [27,000 ANSI] 4.5kW lamp
- 35,000 center [32,500 ANSI] 6.0kW lamp
Contrast
- 2000:1 (full on/off)
Display Technology and Resolution
- 4K (4096 x 2160)
- 3DLP 1.38" DMD™
- 3DLP 1.38" DMD™
- HDCP compliant
Lamp
- Xenon bubble, user-replaceable lamp
Estimated lamp life
- 2.0kW lamp CDXL-20 3500 hrs
- 3.0kW lamp CDXL-30 2500 hrs
- 3.0kW lamp CDXL-30SD 1500 hrs
- 4.5kW lamp CDXL-45 900 hrs
- 6.0kW lamp CDXL-60 750 hrs
Input signals (standard)
- 4x Twin DisplayPort input card
Due to constant research, specifications and features are subject to change without notice.
*Lamp is included, but lamp choice must be specified at the time of order.
**Also compatible with a variety of 24-60Hz 2D formats.
***Christie Twist/Twist Pro warp/blend/scale functionality is included in hardware, but not available until new firmware is released in December 2013.
