The Christie® Mirage WQ-L delivers visually stunning 3D for entertainment, museums and education, scientific research, manufacturing, oil and gas exploration and, stereo simulation training. With WQXGA resolution and high pixel density, this small-footprint projection system offers dual-input 3D mode for passive to active conversion, providing the highest performance 3D video content at 120Hz. It is also an exceptionally reliable system with continuous system calibration for a cost-effective 2D/3D-capable, flexible visualization solution.
When combined with collimation, the high fidelity stereoscopic visuals of the Christie Mirage WQ-L enable true-to-life, depth-specific training with infinite focus. Your eyes don’t have to change focus – objects and scenarios such as the following are represented as ‘real life’: flight refueling, helicopter pilot training, carrier landings, crane simulators, helicopter gun port trainers, and search and rescue.
LED illumination provides precise, life-like vibrant colors, no color wheel artifacts and reliable performance for years of virtually maintenance-free display. With optional lenses, embedded Christie Twist™, any-orientation projector placement and industry-leading Christie warranties, service and support, the Christie Mirage WQ-L is the perfect blend of high-performance and ease-of-use for 3D users.
Key features
- LED illumination with greater than 50,000 hrs of lifetime operation
- Native WQXGA 2560 x 1600 resolution
- 1DLP® with solid state illumination engine (no color wheel) and sealed optics
- Embedded warp and blending capabilities
- Built-in passive to active converter
- Unlimited mounting options
- Dust-sealed light engine
- Embedded Christie ARRAY LOC™ color and brightness control
Specifications
Resolution
WQXGA (2560 x 1600)
Optical system
- Lens mount:
- - Mechanical, horizontal and vertical lens shift
- - No shutter required
- - No iris required – user programmable illumination parameters (eliminates the need for a mechanical shutter)
- - Christie ArrayLOC™ :
- - Manages the brightness and color levels of all projectors within an array to a common level, in real-time with no additional latency
Lenses
- Fixed:
- - 0.68:1 WQXGA lens
- - 0.80:1 WQXGA lens
- Zoom:
- - 1.28-1.71:1 WQXGA lens
- Offsets:
- - 0.68:1 lens features ±5% (horizontal) and ±15% (vertical) offset when mounted in landscape orientation***
- - 0.80:1 lens features +100/-60% (horizontal) and +150/-100% (vertical) offset when mounted in landscape orientation***
- - 1.28-1.71:1 lens features +100/-60% (horizontal) and +150/-100% (vertical) offset when mounted in landscape orientation***
Standard accessories
- - Line cord
- - Christie Twist™4 optional
- - User kit (includes manual, IR remote)
- - Christie AutoCAL
- - Christie Twist Pro
- - Rugged motion platform kit5 to withstand 5g shock load (purpose-built)
- - Ruggedized transit case
- - Remote IR sensor
- - Christie MotoBlend™ optical blending******
Enhanced feature sets
- - Minimum Processing Latency (MPL™)
- - Auto power up
- - Menus in 5 languages
- - Christie ArrayLOC™ – automatic, continuous management of brightness and color space levels of all projectors in an array to a common level, in real-time
Power requirements
- - Operating voltage: 100-240 VAC 50/60Hz
- - Operating current: 10A max 100-120VAC, 5A 200-240VAC (lower in normal operational modes)
- - Dissipation: 2316 BTU/hr max. (lower in normal operational modes)
Due to constant research, specifications and features are subject to change.
* Standard VESA timing of 2560 x 1600 with reduced blanking.
** Frame doubling functionality is included in hardware, but not available until new firmware is released in Q1-2014.
*** Each offset is specified with the other at zero. Simultaneous horizontal and vertical offsets may limit the adjustment range of each.
**** Christie Twist/Twist Pro warp/blend/scale and Christie AutoCal functionality is included in hardware, but not available until new firmware is released in Q1-2014.

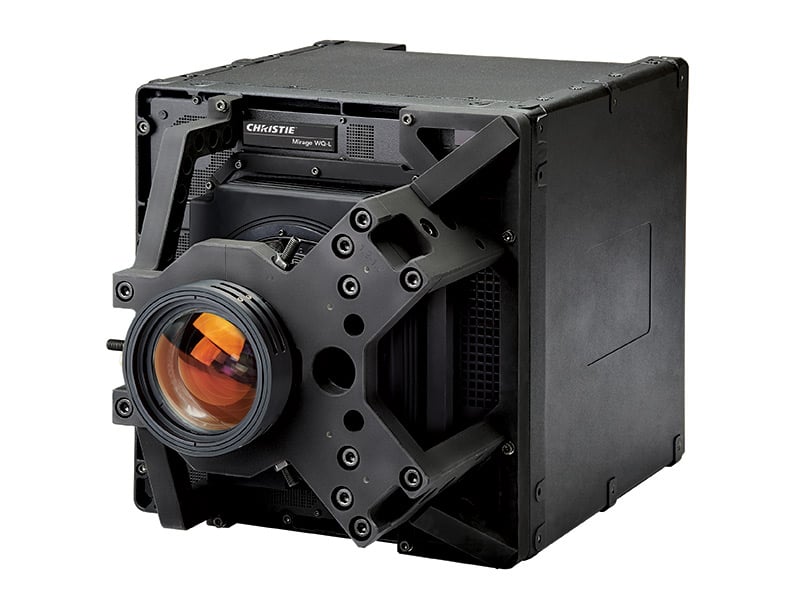

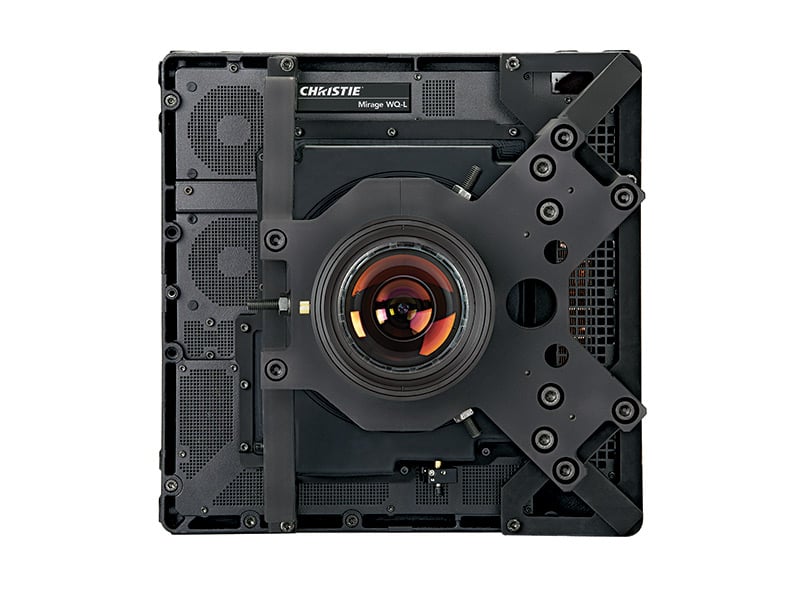

***** Mirage WQ-L is available with a Ruggedized Motion Platform kit. These are purpose built to interface with customers' motion platform structures and available on a build-to-order basis. For details, please contact your Christie sales representative.
****** For details, please contact your Christie sales representative.
