Christie One Rigging Frame | Christie - Audio Visual Solutions
Overview Downloads

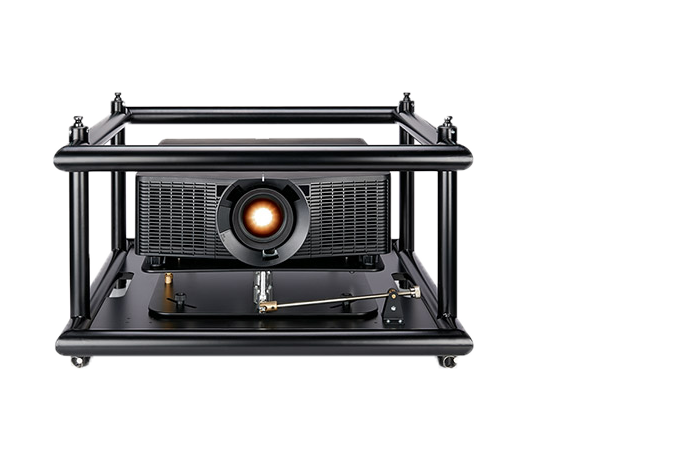

​​​​The stacking frame is a single assembly that fastens to the bottom of the projector. When hung in normal or inverted orientations, the stacking frame can support up to three stacked projectors. It can also be used to mount the projectors to truss in a portrait orientation.

It has pitch, roll and yaw adjustments to allow accurate alignment of the overl​ayed images.

Installation and adjustments can be done quickly and easily by one person.

Features:

  • Independent controls for adjusting pitch, yaw and tilt for quicker and more accurate setup with lock downs available for each adjustment.
  • Individual projector adjustments within a stack (up to 3 projectors high) – enabling modifications to a single projector without affecting the other connected projectors.
  • Standard tubing (50mm OD pipe) accommodates common burger and industry clamps.
  • Design enables easy access to projector for installation, lamp/filter replacements and maintenance.
  • Steel Frame
  • 89 lbs​
