Christie® Entero™ HB is an evolution in performance, reliability and confidence for control room video wall displays.
Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers high brightness, 24/7 performance, reliability, all with an overall low cost of ownership and operation.
Control – The Christie Entero HB series is the first and only LED control room display to offer wireless control through Wi-Fi capability – make adjustments, control the wall or perform diagnostic monitoring through an iPad® or other similar wireless device. It’s that simple.

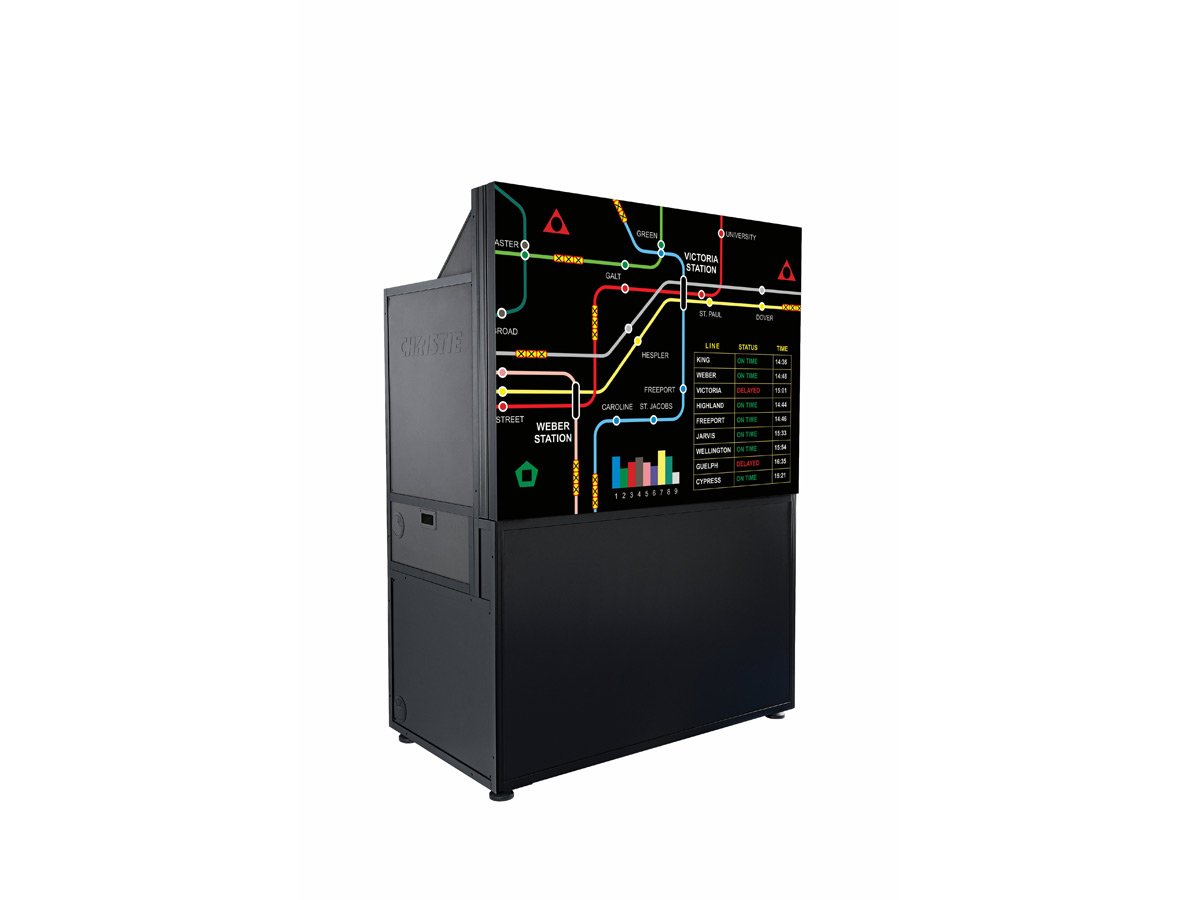

Flexibility – The Christie Entero HB 70” HD video wall display cube, is part of a new expanded series of control room display cubes offering installation flexibility with options in resolution and display formats to meet specific room or space requirements. The Christie Entero HB 70” HD video wall display cube is an excellent option for installations that need true HD LED display cubes in a 70” 16:9 form factor.
Maintenance – Designed for zero maintenance, the Christie Entero HB series is solid state, has no consumables and no scheduled maintenance for at least 5 years.
The Christie Entero HB offers unparalleled 24/7 performance and years of worry-free operation. Plus, with simple, intuitive hardware installation, minimal set-up time and effort and modular design for fast and easy servicing if required, the new Christie Entero™ HB control room display cubes exceeds your expectations.
Features
- Up to 520 cd/m2 – high brightness mode / Up to 403 cd/m2 – normal mode
- 70” diagonal, HD (1920 x 1080) resolution
- high performance – high brightness, wide color gamut, superb contrast, excellent brightness and white level uniformity
- Wi-Fi enabled – wireless video wall control through iPad or similar wireless device
- Christie ArraySync™ third-generation automatic LED video wall color and brightness management
- 24/7 reliability – based on latest DLP® technology
- zero maintenance design – no consumables, no maintenance for at least 5 years
- low cost of ownership/operation

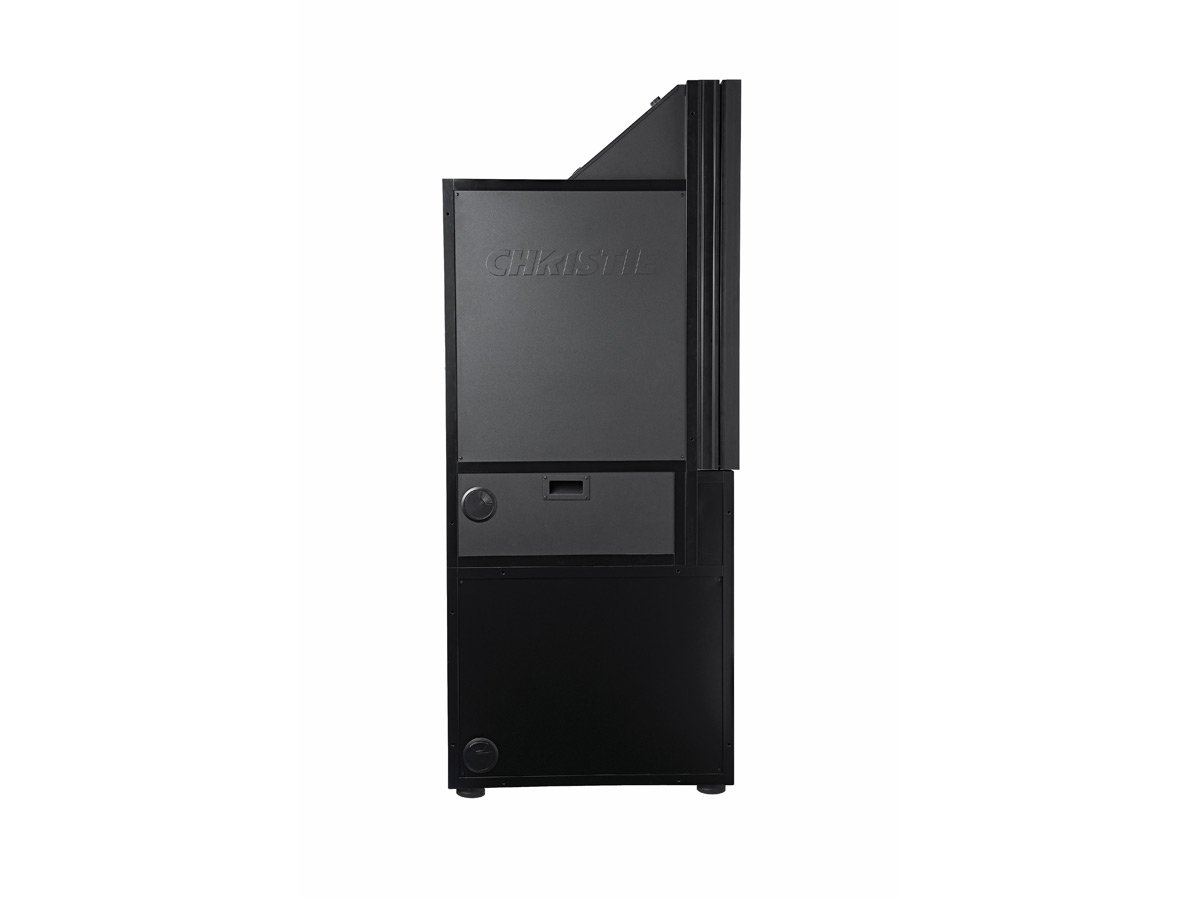

- shallow 808mm (31.8") depth requires minimal space allocation for 70” displays
- industry standard 16:9 aspect ratio
- only 1mm nominal space between screens
- geometric precision for seamless imaging across multiple displays
- reduced disruption because there are no consumable components to replace
- very wide color gamut for superior color reproduction
- ultra high contrast, view-ability and display performance
- designed for long-term use and performance – no need to replace in a few years
- >80,000 hours rated LED life (eco mode)
- modular design for minimal downtime if a repair is required
- dust free sealed optics
- permanently sealed liquid cooling system (no pumps or hazardous liquids)
Specifications
Product make-up
- Cube: CC70-3601
- Projection engine: RPMHD-LED02
- Screen*: SC70-XP01
Imaging technology
- Imaging
- - Superior 0.95" 1-chip DLP®, Darkchip
- - Texas Instruments
- Native resolution: HD (1920 x 1080) | 16:9 aspect ratio
- Illumination: LED (Red, Green, Blue) | OSRAM | Redundant LED Architecture
Technology
- Optical: Fresnel/cross prism
- DNP
Screen gap (image to image)**
- 0.2-1.0mm
- Adjustable
View-ability
- 80° Horizontal
- 120° Vertical
- +/- 35° Horizontal ½ gain
- +/- 27° Vertical ½ gain
System brightness
- Up to 520 cd/m2 in high brightness mode
- Up to 403 cd/m2 in normal mode
- Up to 331 cd/m2 in eco mode
*Other screen types available.
**Depending on environment and wall configuration.
***Depending on pedestal type used.
Due to constant research, specifications and features are subject to change without notice.
