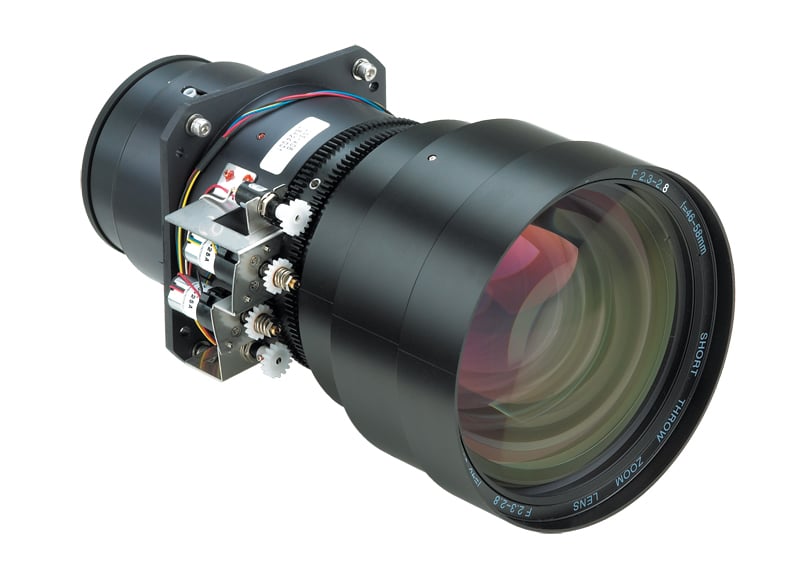

1.1-1.5:1 Zoom Lens103-103101-XX
Overview Products

 When used with the RoadRunner and Vivid products and the LU77, this lens has a 1.1-1.5:1 throw ratio. If used with the LS+58, LX66 or LX66A, the lens will provide a 1.5-2.0:1 throw ratio. If used with the LW40(U) projectors, this lens will provide a 1.6-2.1:1 throw ratio. If used with the LX900 projectors, this lens will provide a 1.2-1.5:1 throw ratio.



Projector Throw Ratio
Roadrunner LX65 1.1-1.5:1
Vivid Projectors  1.1-1.5:1
Christie LU77  1.1-1.5:1
Christie LX900  1.2-1.5:1
Christie LS+58  1.5-2.0:1
Christie LX66  1.5-2.0:1
Christie LX66A  1.5-2.0:1
Christie LW40(U)  1.6-2.1:1
Christie LW600    1.6-2.1:1




For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

Specifications



Throw Distance 1.8" LCD Panels - 1.1-1.5
  1.4" LCD Panels - 1.5-2.0
  1.2" LCD Panels - 1.6-2.1
Focal Length  45 - 57 mm
F Value  2.3-2.8
Lens Shift 10:0
Image Circle Φ56 mm
Length 248mm
Carton Size 381W x 317H x 301D mm



 Due to constant research, specifications and features are subject to change without notice.
