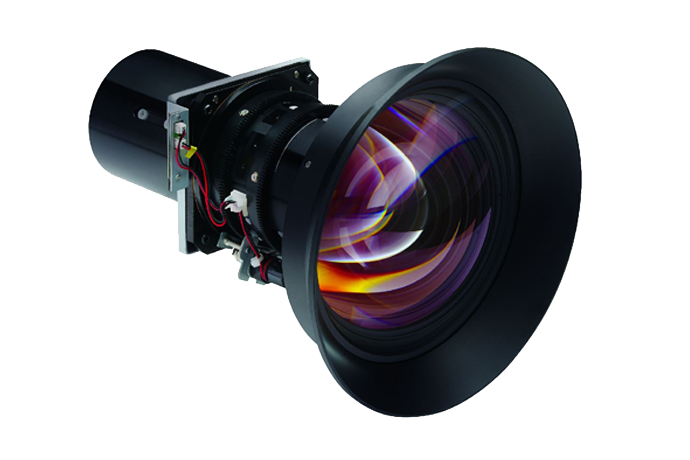

1.2-1.5:1 Short Zoom Lens133-101103-XX
Overview Products

This lens has a 1.2-1.5:1 throw ratio and can be used with the Christie projectors listed below.

Specifications



Throw Distance
  • 1.2-1.5:1
HD Offsets
  • +60% vertical (WU - 720 pixels)/-20% vertical (WU - 240 pixels)
  • +/-10% horizontal (+/-192 pixels)
WUXGA Offsets
  • +60% vertical (WU - 720 pixels)/-20% vertical (WU - 240 pixels)
  • +/-10% horizontal (+/-192 pixels)
Lens Mount
  • Motorized horizontal and veritcal lens offset
  • Motorized zoom and focus adjustment
  • Bayonet style user replaceable lenses



Due to constant research, specifications and features are subject to change without notice.

For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.
