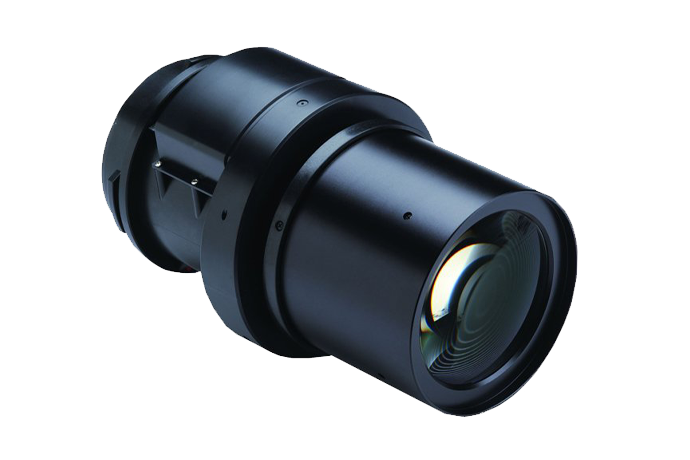

4.60-7.36:1 Zoom Lens | Christie - Audio Visual Solutions
Overview Products

This lens provides a 4.60-7.36:1 throw ratio.

For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

Specifications



Throw Distance 4.60-7.36:1
Focal Length    73.9-117.1
Lens Shift U/D    ±50%
Lens Shift R/L    ±10%
Motor Driven    Yes
F Value    1.83-2.35
Image Circle    Φ31.1 mma
Max. Diameter    Φ108 mm
Length    166.0 mm
Shipping Size   W 366 x H 262 x D 236 mm
Gross Weight   2.34kg
Net Weight 1.20kg




Due to constant research, specifications and features are subject to change without notice.
