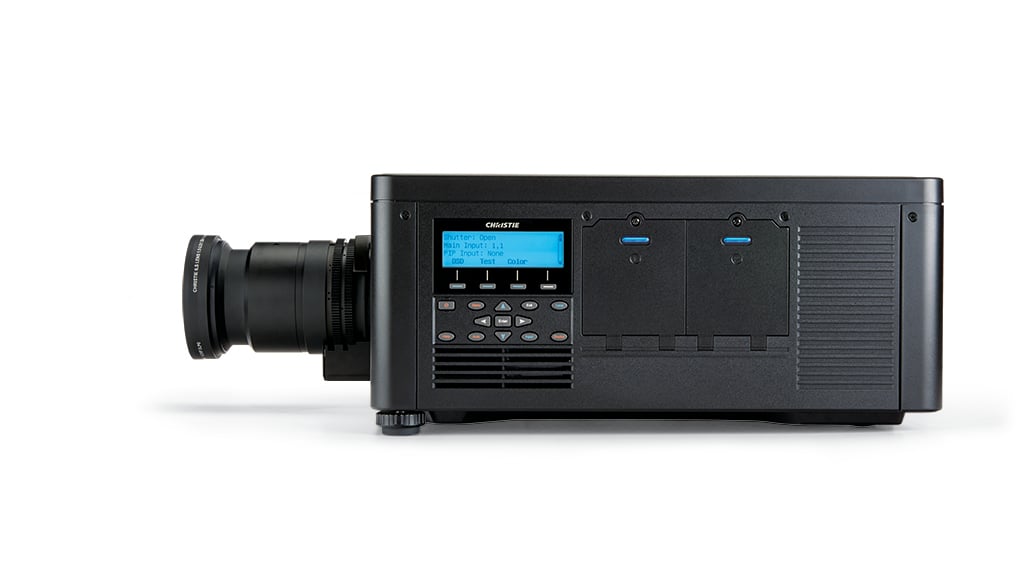

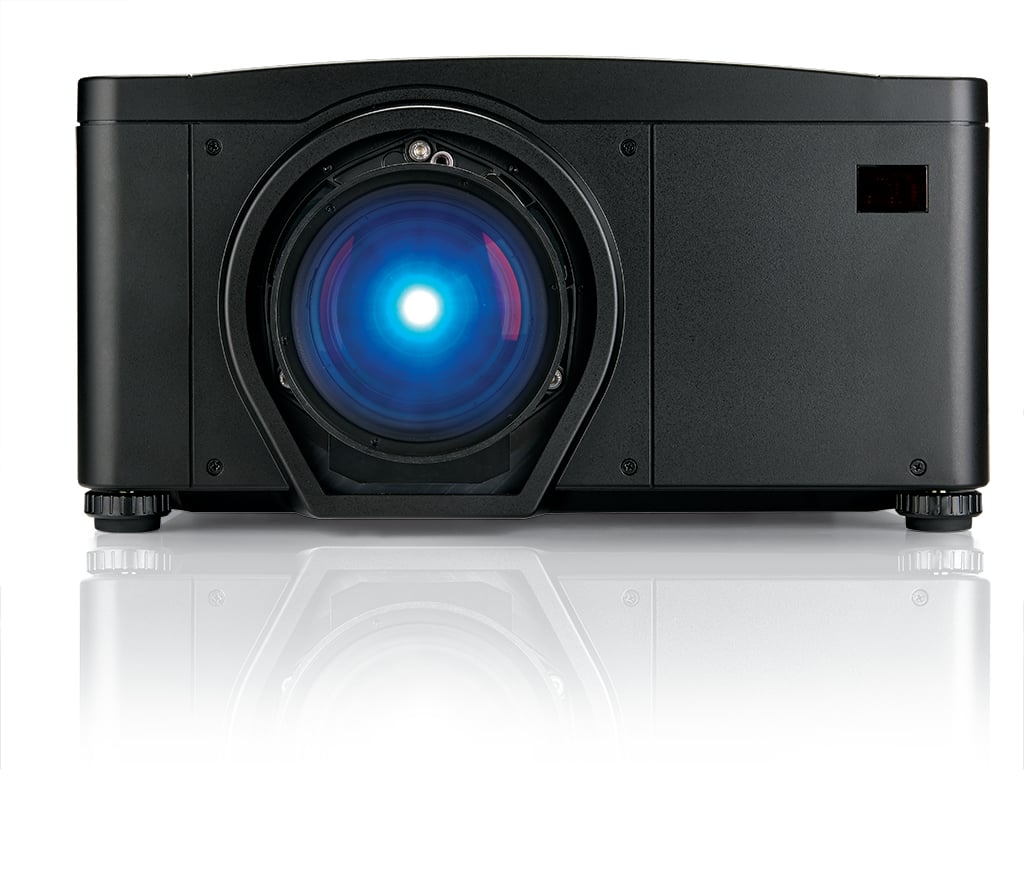

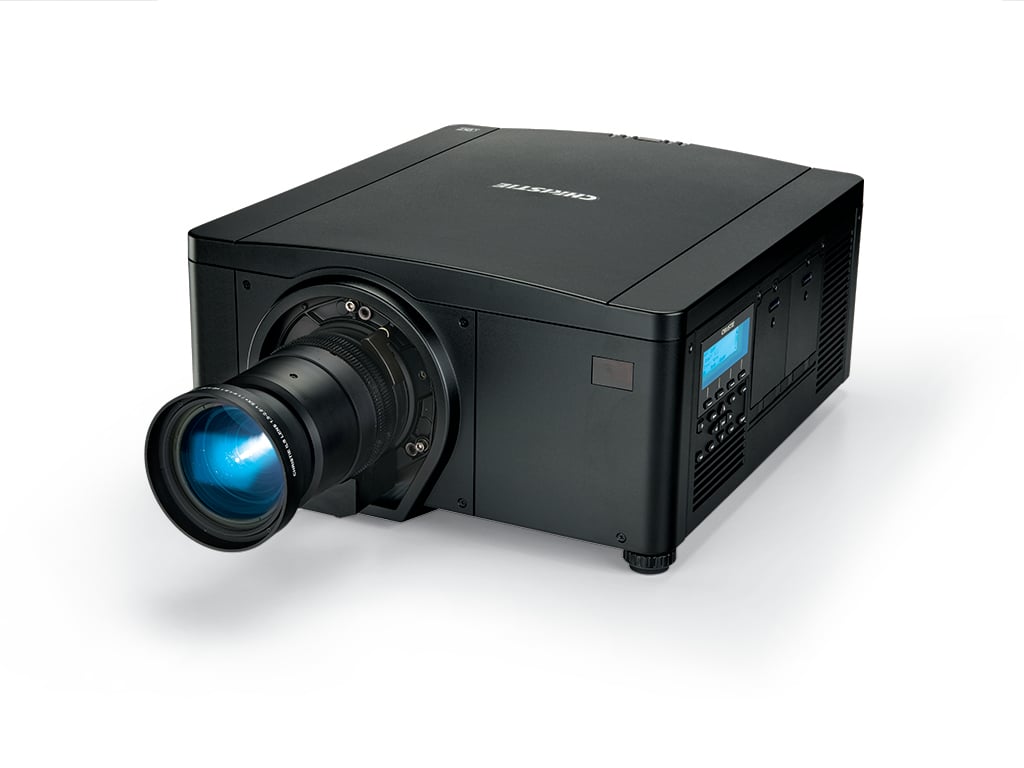

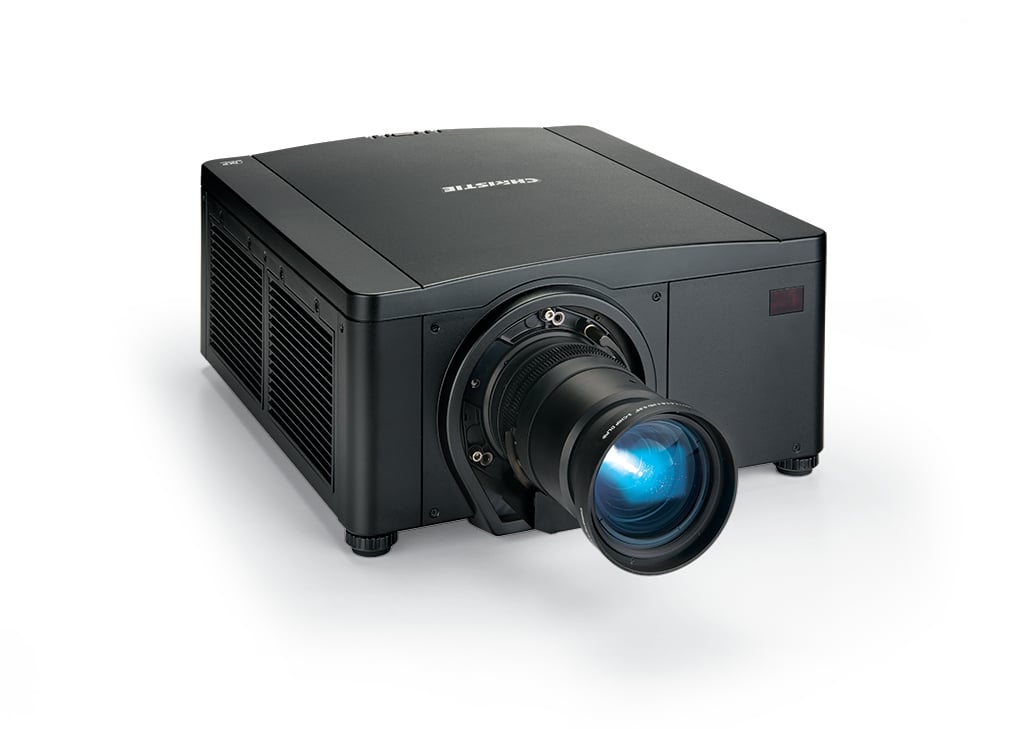

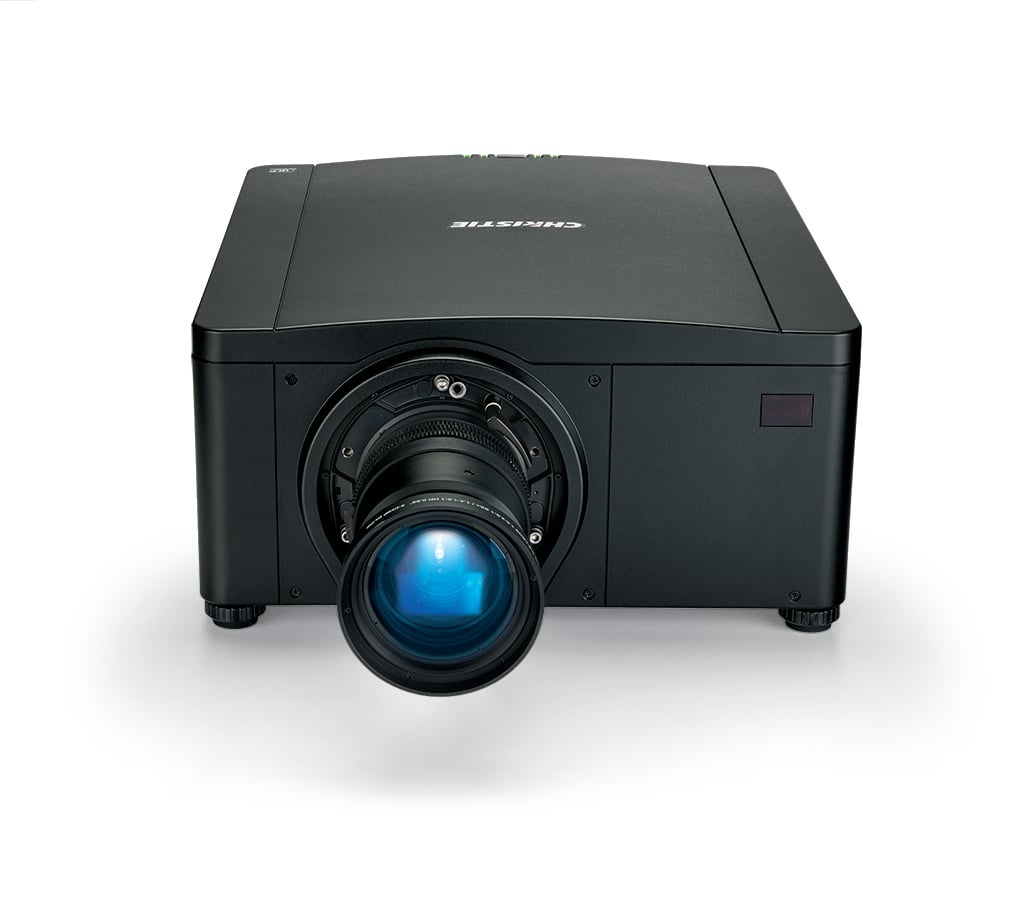

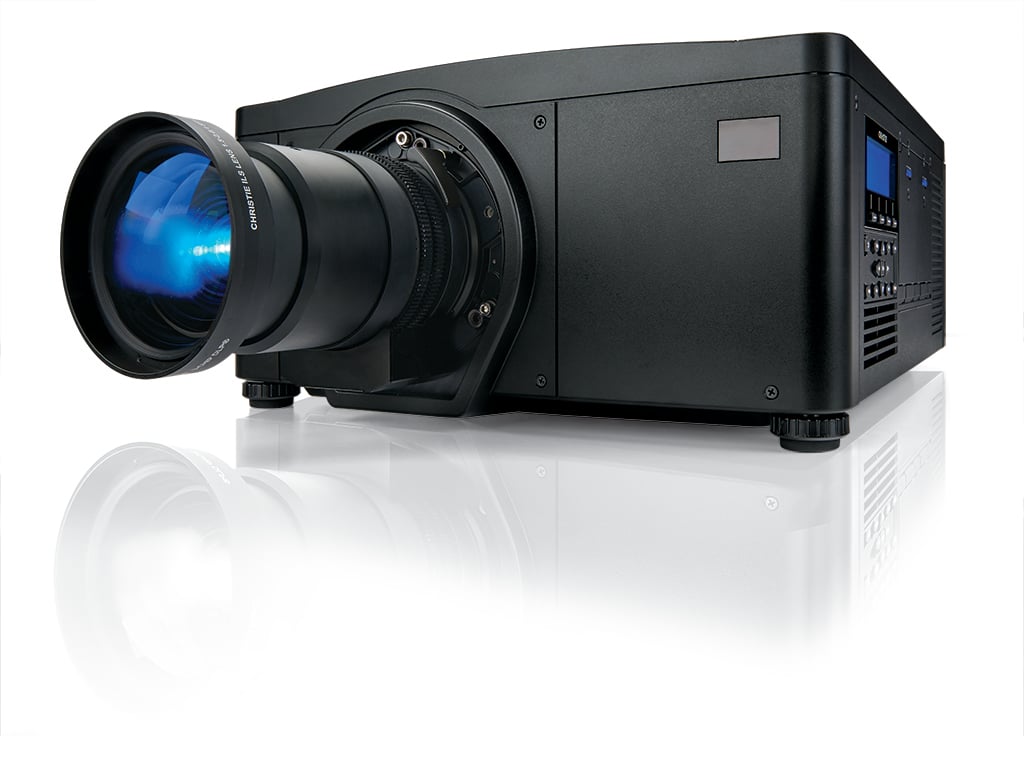

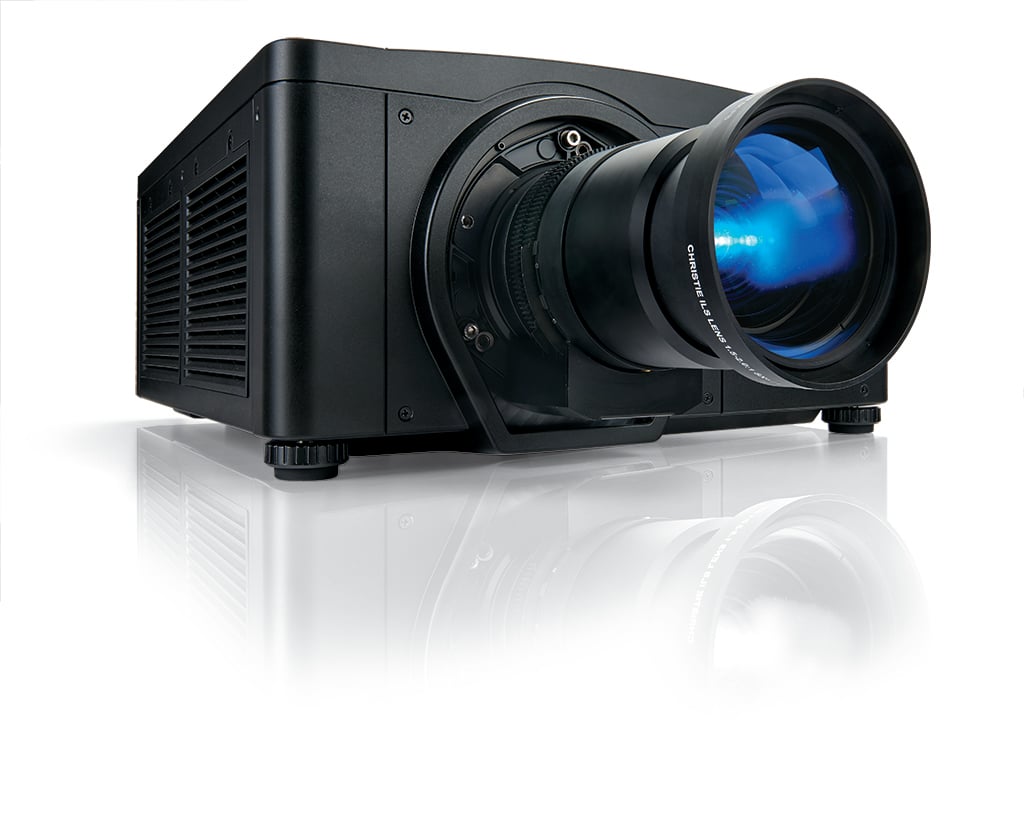

The most compact in its class, the Christie M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. Embedded warping, blending and color matching, along with built-in portrait capabilities give you even more installation flexibility with this SXGA+ model.
The Roadster S+10K-M, designed with stagers in mind offers high efficiency and low cost of ownership by drawing a maximum power of 1320W giving you full brightness while using less power.
Features
- SXGA+ resolution (1400 x 1050)
- 11,500 center lumens
- Variable contrast ratio of 2500-10000:1 using contrast aperture (full on, full off) / 650:1 ANSI for crisp, detailed images.
- At maximum brightness (10500 ANSI lumens), the projector draws a maximum power of 1320W
- Dual mercury lamps (350W)
- Comprehensive Color Adjustment (CCA™)
- Embedded Christie Twist™ image warping and edge-blending
- Dust sealed engine, filter-free design
- Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
- Multi-windowing and screen processing (up to a 3x3 array)
- Ships with a stacking frame and four input cards
- 3D upgradable
- Built-in portrait display capabilities
All this, combined with a 3-year warranty and our industry-leading service and support, enables the M Series to provide high performance and peace of mind for all users.
Specifications
- Dual lamp: 11,550 center (10,500 ANSI, 10,518 ISO) lumens
- Single lamp: 5,775 center (5,250 ANSI, 5,259 ISO) lumens
Contrast
- 2500-10,000:1 using contrast aperture (full on, full off)
- 650:1 ANSI (typical)
Display technology and resolution
- 3-chip 0.95" DLP
- SXGA+ (1400 x 1050) resolution
Lamp
- - Dual 350W PVIP
- - High power: 1500 hrs @ 350W
- -
Input signal compatibility
- - HDTV formats VGA through to QXGA (2048 x 1536)
- - Accepts all current HDTV/DTV formats
- - Multi-standard video decoder
- -

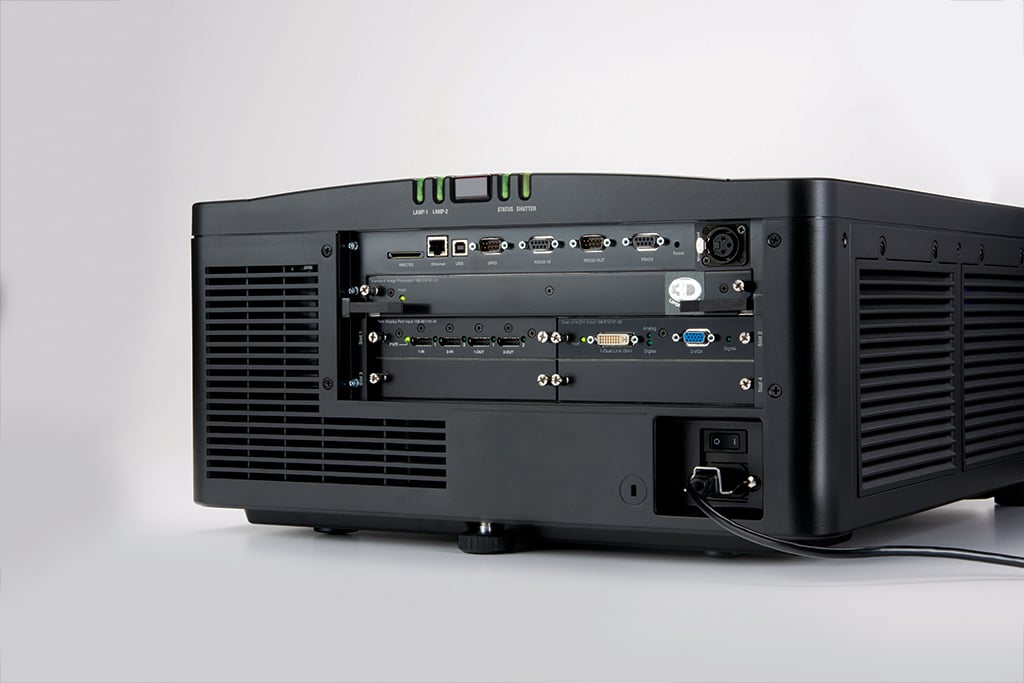

Standard inputs
- - Twin DisplayPort Input card
- - Dual-link DVI
- - 3G SD/HD-SDI
- -
Due to constant research, specifications and features are subject to change without notice.
