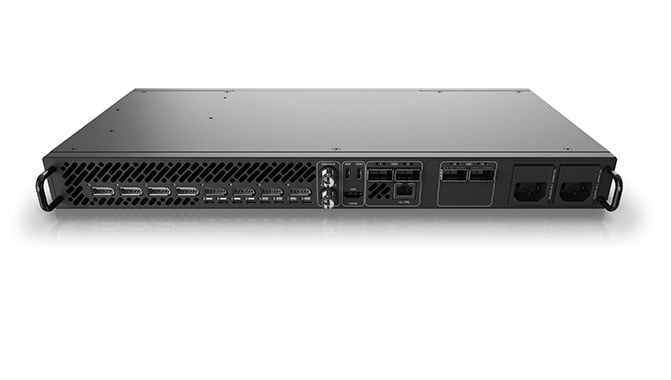

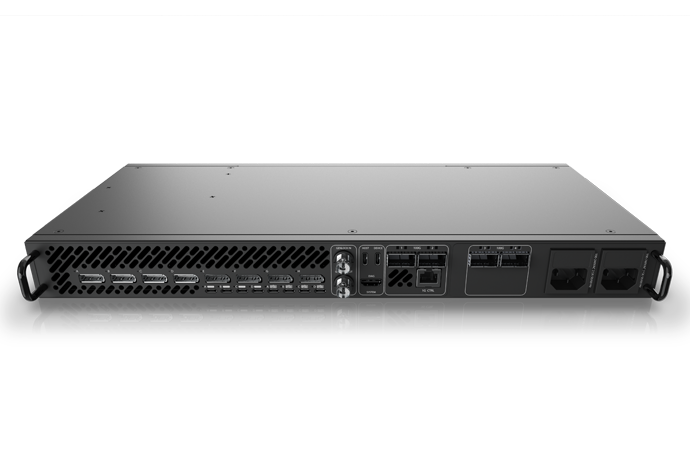

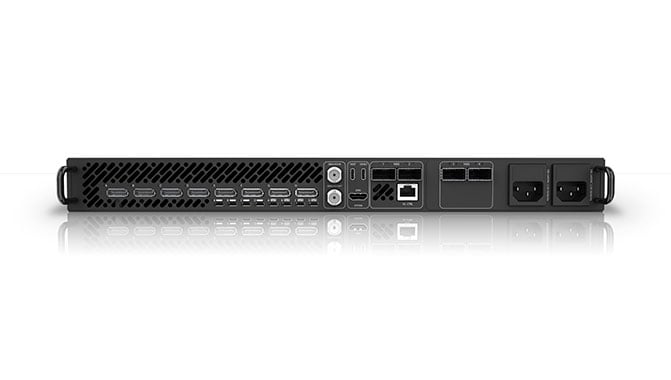

Compositor DisplayPort 1.4
Overview Specs Downloads Images

Christie® Spyder-S Series takes everything you know about multi-screen windowing and image processing and turns it on its head with a modular distributed architecture that lets you create a system with everything you need and nothing you don’t.

A revolution in compositing that moves beyond traditional “one-size-fits-all” solutions, you won’t get boxed in like you will with other image processing or compositing platforms that can limit flexibility and scalability.

Key Features

  • A right-sized solution: The modular distributed architecture lets you combine multiple nodes to create the system you need. You can even expand your system up to 96 inputs, 64 outputs, and a staggering 400 megapixels.
  • Versatility and scalability: The distributed architecture lets you create flexible set-ups that you can expand over time while still delivering the performance, reliability, and image quality you need.
  • Advanced connectivity: With the latest AV standards, including 8K video, HDR, and beyond for a future-ready system designed to handle your evolving demands.
  • Powerful processing at every node: The distributed system design ensures no single point of failure while maintaining ultra-low latency across any size multi-screen setup.
  • Scalable control for added flexibility: Manage the system from a centralized control interface to easily add, remove, or reconfigure screens and windows.
  • Advanced networking features: Get real-time collaboration across distributed locations and flexible signal management for diverse setups, including control rooms.
  • Powered by Spyder Studio: No need to learn new software with Spyder Studio as the control environment
  • Backward compatible with Spyder X80 commands: For Spyder X80 users, automation commands are backward compatible so the only new commands are for new features.

Specifications

I/O configurations

  • DisplayPort 1.4
  • 4x4

Refresh rates

  • 24, 25, 30, 50, 60 and each /1.001

Color space, sampling, bits

  • YCbCr 4:2:2/4:4:4
  • RGB 4:2:2/4:4:4, 8, 10 bit

Resolutions

  • Up to 4096 x 2160 at 60 Hz (4 Ch)
  • or 7680 x 4320 at 30 Hz (2 Ch)
  • or 7680 x 4320 (1 Ch)

Audio

  • Up to 8x Channels 20/24-bit, 44/48kHz, 125/1000us pacing
  • Up to 8x Channel volume control each output (optional)

Network interfaces

  • 2x QSFP28 100 Gbit Ethernet
  • 1x SFP+/RJ45 1 Gbit Ethernet (control)
  • 2x SFP28 1/10/25 Gbit Ethernet (optional)
