2.89-4.60:1 Long Lens | Christie - Audio Visual Solutions
Overview Products

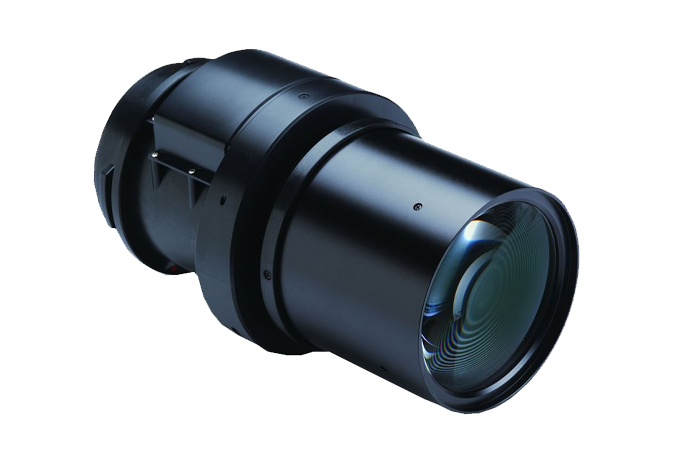

This lens provides a 2.89-4.60:1 throw ratio.

For specific lens throw distance values, please refer to the Christie Lens Calculator on this website or the downloadable PDF throw distance chart located in the resource tab of this lens option or the resource tab of Christie projector to be used with this lens.

Specifications



Throw Distance 2.89-4.60:1
Focal Length 45.6-73.8
Lens Shift U/D ±50％
Lens Shift R/L ±10％
Motor Driven Yes
F Value 1.82-2.34
Image Circle Φ31.1 mm
Max. Diameter Φ108 mm
Length 169.6 mm
Shipping Size W 366 x H 262 x D 236 mm
Gross Weight 2.37kg
Net Weight 1.18kg




Due to constant research, specifications and features are subject to change without notice.
