A technological marvel that combines superior Christie® electronics, our proprietary RGB laser illumination architecture with integrated cooling and a sealed optical path for reliable illumination performance, resulting in capabilities that will impress you.

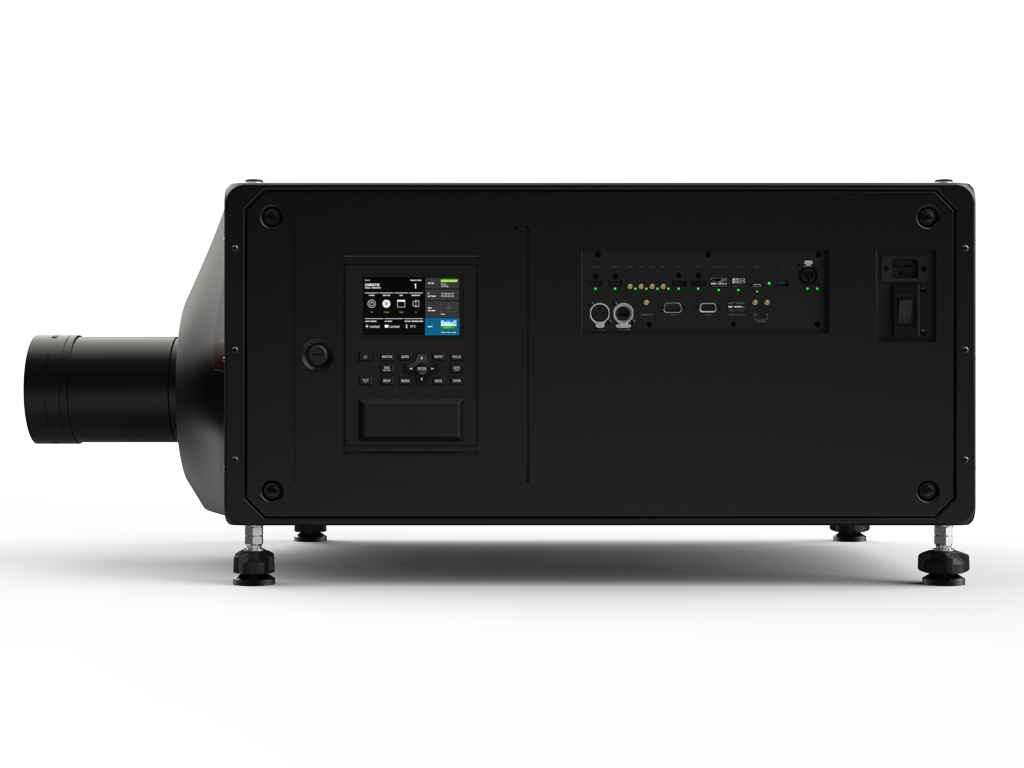

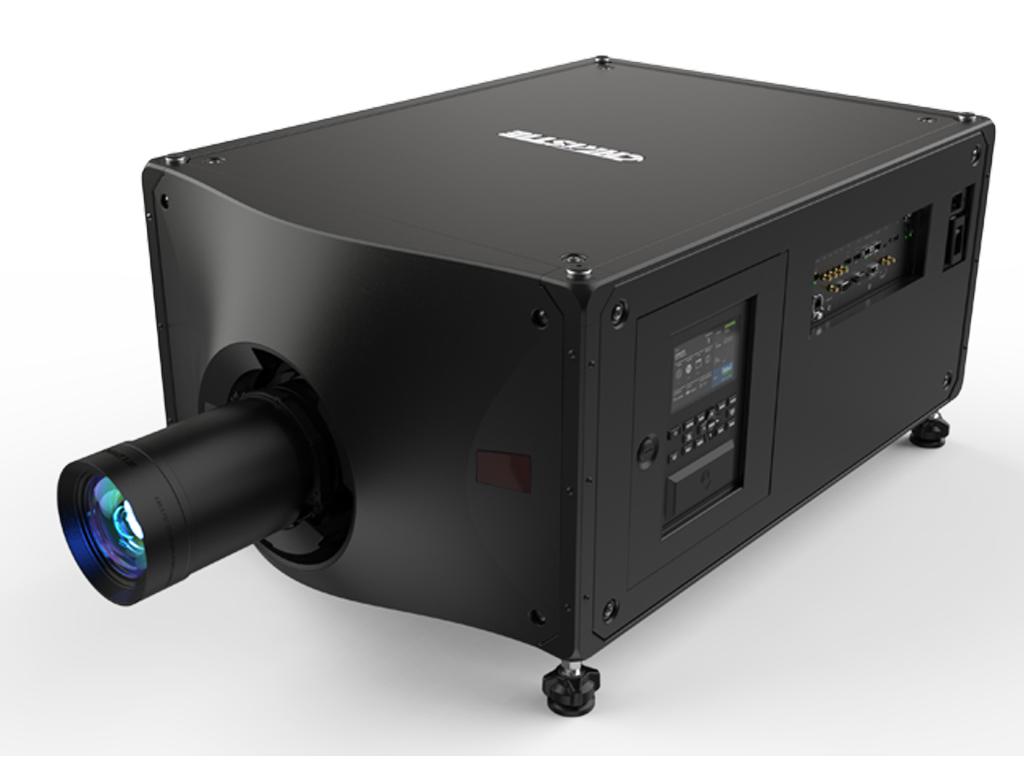

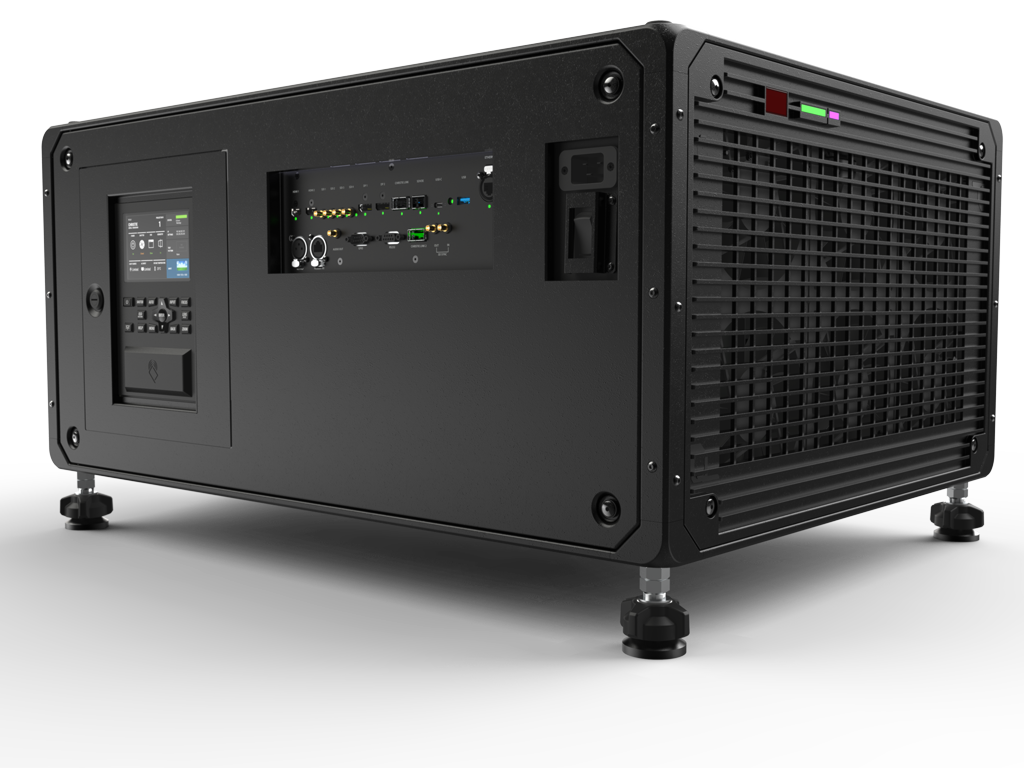

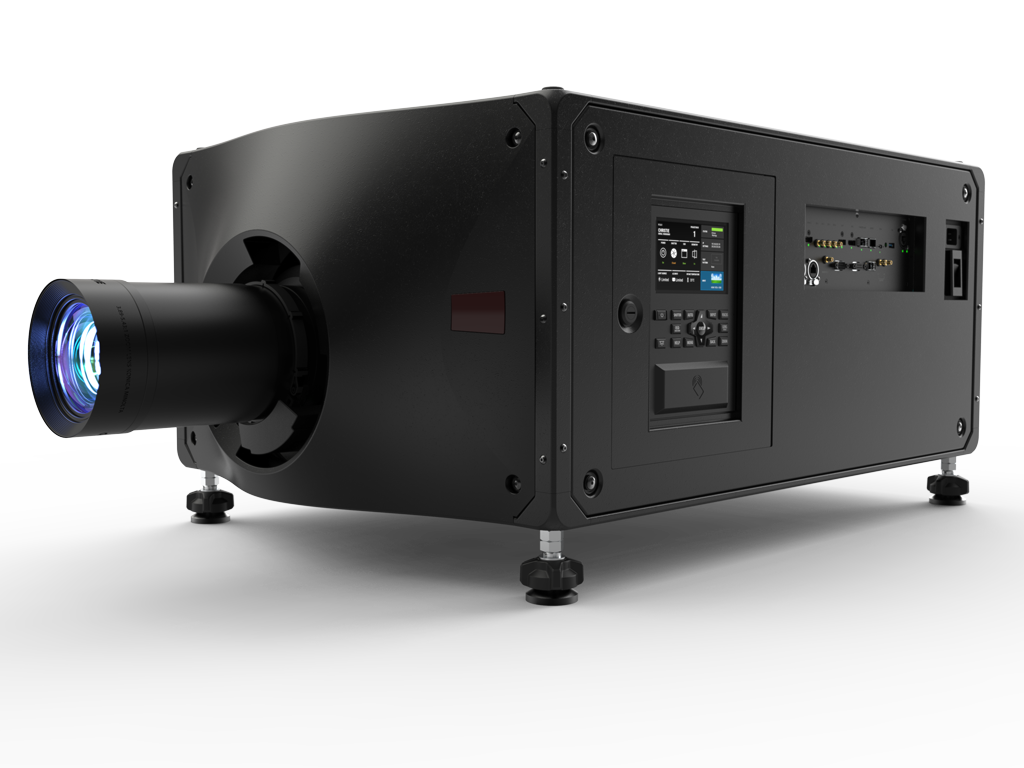

Ready to illuminate any surface with 34,000 lumens while operating at less than 46dBA at full brightness, the highly advanced Griffyn® 4K32-RGB is designed for demanding large venue applications on the ground or ‘in the air’.
Design excellence
Talk about engineering expertise: this compact and powerful all-in-one, omnidirectional projector is our first to offer our new TruLife+™ electronics platform for all-in-one connectivity, which eliminates the hassle of removable option cards. Griffyn also includes our new electronic color convergence (ECC), which allows you to adjust convergence via remote control for easy, picture-perfect color alignment.
Griffyn 4K32-RGB raises the bar in RGB pure laser projection performance.
Spectacular visuals
Griffyn 4K32-RGB produces an exceptionally wide color gamut, achieving >96% of the Rec. 2020 color space—more than twice the color of Rec. 709 and 50% more than DCI-P3-capable projectors—for an enhanced audience experience. And Griffyn’s optional high frame rate (HFR) capability achieves 120Hz at 4K resolution or up to 480Hz with 2K resolution. Ready to transport your audience to colorful new worlds, Griffyn not only raises the bar for RGB pure laser projection but soars above it.
Key features
- All-in-one, compact design — No external chillers or laser racks at a manageable weight of 175lbs
- Electronic Color Convergence (ECC) — easily adjust the color convergence via remote control for picture-perfect color alignment.
- New TruLife+ all-in-one electronics — Native 4K at 60Hz is standard. The Mirage option delivers 120Hz operation at 4K or 4K 3D content at 60Hz per eye. The Mirage Pro option adds further capabilities: 240-480Hz at 2K resolution and Christie View (simultaneous multi-content viewer)
- Quiet operation — Operates below 46dBA at maximum brightness
- 4K lens compatibility — Compatible with all Christie® 3DLP® 4K lenses
- Expanded color gamut — Produces >96% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
- Omnidirectional — Operates in any orientation for unlimited installation flexibility
- Energy efficient — Operates on 220V single-phase power for lower cost of ownership
- Christie Twist™ — Built-in image warping and multi-projector blending software
- Field replaceable RGB laser architecture — easy service and replacement of the laser light source
- Compatible with Christie Mystique™ automated camera-based alignment software solution
- Supports Christie Guardian – Invisible, real-time automatic blended-image correction even when content is playing
We’re here to support your investment
Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Griffyn 4K32. If you have any questions, or if you’d like to speak to a Christie sales representative, please contact us.
Quick links
-
Griffyn 4K32-RGB datasheet
-
Next-gen projection solutions
-
Projector lens calculator
-
Frequently asked questions
-
Top 10 reasons to choose RGB laser projection
Best of show, Projection Expo 2020
Videos
Introducing the Christie Griffyn 4K32-RGB pure laser projector
Product introduction video
Griffyn 4K32-RGB pure laser projector walkthrough
Griffyn 4K32-RGB walkthrough

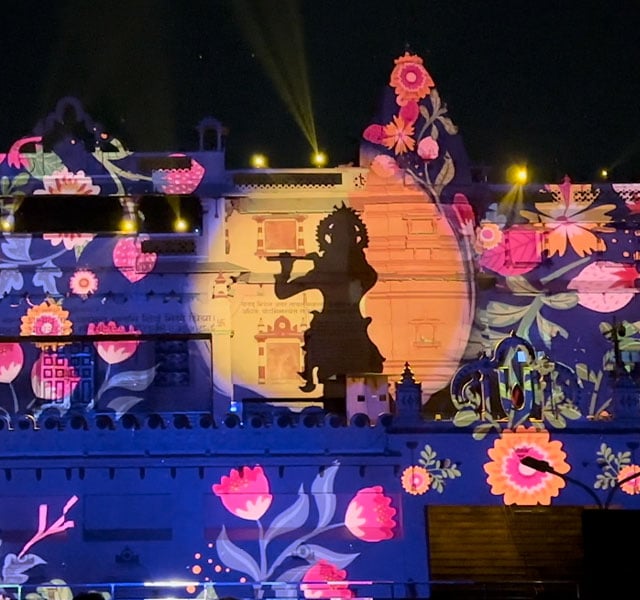

Historic buildings come alive with 3D projection mapping at 2021 GLOW festival
2021 GLOW Festival
Specifications
34,000
ISO lumens
30,000
ANSI lumens
5000:1 On/Off with high contrast lens*
Contrast ratio
3DLP 1.38" DMD
Display type
4K (4096 x 2160)
Resolution
RGB pure laser
Illumination type
Notes
* Brightness is reduced by 30% with use of high-contrast lens, To 50% brightness (results may vary depending on environmental conditions i.e. dust, smog, other contaminants)
** Quiet fan mode, up to 30°C, Sound pressure measurement, measuring conditions, and method of notation all comply with ISO7779-1999. Sound level may vary between units
*** Standard fan mode, up to 25°C, Sound pressure measurement, measuring conditions, and method of notation all comply with ISO7779-1999. Sound level may vary between units
****Without lens, weight may vary between units.
Downloads
Projection solutions and tools line card
Jan 19, 2024 | PDF: 436 KB
End of production notice - multiple projectors
May 01, 2023 | PDF: 81 KB
On May 1, 2023, Christie Griffyn® 4K32-RGB, Crimson HD31, D4K40-RGB, Mirage 4K40-RGB, D20HD-HS, and D13HD2-HS projectors reached end-of-production status.
Top 10 reasons to choose RGB laser projection
Apr 15, 2022 | PDF: 392 KB
Learn about all the reasons why RGB laser projection
Griffyn 4K32-RGB datasheet
Oct 01, 2021 | PDF: 231 KB
Griffyn 4K32-RGB FAQ
Jul 09, 2021 | PDF: 531 KB
Learn about the Griffyn 4K32-RGB pure laser projector.
Next-gen projection solutions
Nov 01, 2020 | PDF: 705 KB
